FRONT DOOR LOCK & HANDLE

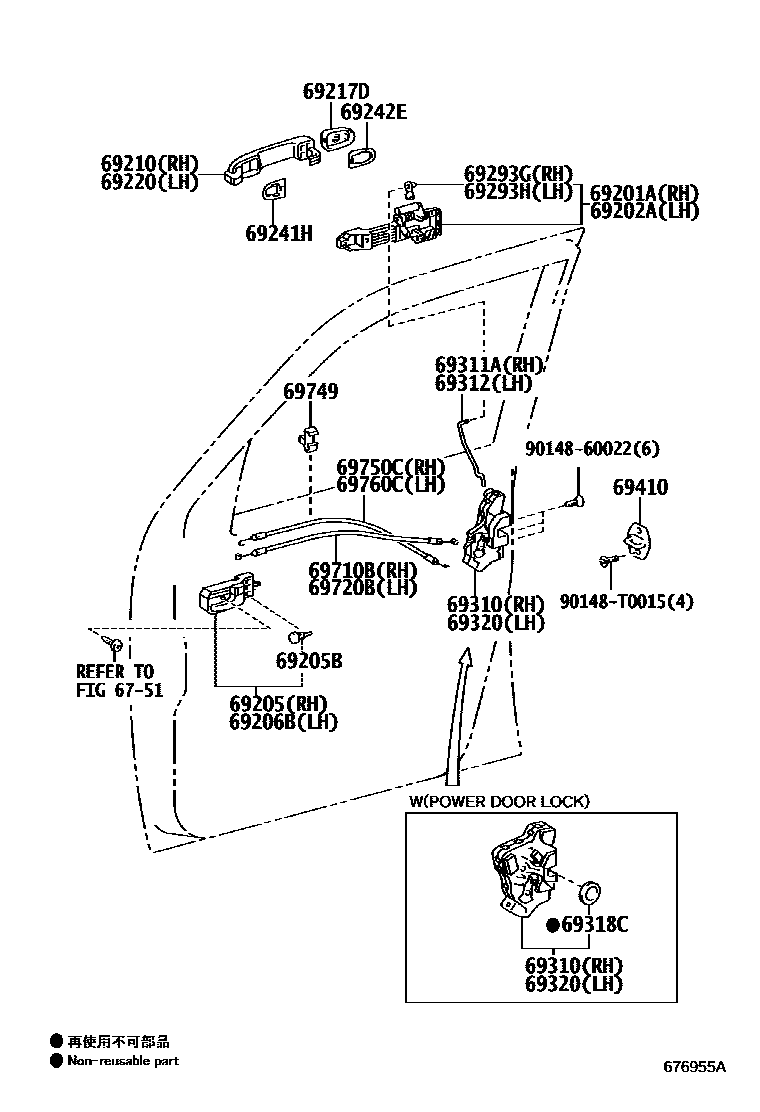

Parts diagram
6751
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-02050i201108-201512
main69201-06010i201112-201504
*299
main69201-06010i201112-201504
RUSSIA & UKRAINE SPEC,*299
main69201-06010i201107-201112
RUSSIA & UKRAINE SPEC
main69201-06010i201107-201504
(L)
main69201-33010i¥4,510201112-201504
*300
main69201-33010i¥4,510201112-201504
(J)
main69201-33010i¥4,510201112-201305
RUSSIA & UKRAINE SPEC,*300
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-02030i201108-201512
main69202-06010i201112-201504
RUSSIA & UKRAINE SPEC,*299
main69202-06010i201107-201112
RUSSIA & UKRAINE SPEC
main69202-06010i201107-201504
(L)
main69202-06010i201112-201504
*299
main69202-33010i¥4,510201112-201504
*300
main69202-33010i¥4,510201112-201504
(J)
main69202-33010i¥4,510201112-201305
RUSSIA & UKRAINE SPEC,*300
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-0D070-B2i201112-201512
MD.GRAY,TRIM1#,*299
sub69205-0D070
main69205-0D070-B2i201107-201112
MD.GRAY,TRIM1#
sub69205-0D070
main69205-0D070-C0i201308-201512
BLACK,TRIM2#,*299
sub69205-0D070
main69205-0D080-B2i201107-201512
MD.GRAY,TRIM1#,(L)
sub69205-0D080
main69205-0D080-B2i201112-201408
MD.GRAY,TRIM1#,*299
sub69205-0D080
main69205-0D080-B2i201107-201112
MD.GRAY,TRIM1#
sub69205-0D080
main69205-0D080-C0i201308-201512
BLACK,TRIM2#,(L)
sub69205-0D080
main69205-0D080-C0i201308-201504
BLACK,TRIM2#,*299
sub69205-0D080
main69205-12190-B3i201112-201306
MD.GRAY,TRIM1#,(J)
sub69205-12190¥3,950
sub69205-0D080
main69205-12190-B3i201112-201306
MD.GRAY,TRIM1#,*300
sub69205-12190¥3,950
sub69205-0D080
main69205-12200-B4i201112-201306
MD.GRAY,TRIM1#,*300
sub69205-12200¥3,040
sub69205-0D070
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04027i¥100201107-201512
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-0D070-B2i201112-201512
MD.GRAY,TRIM1#,*299
sub69206-0D070
main69206-0D070-B2i201107-201112
MD.GRAY,TRIM1#
sub69206-0D070
main69206-0D070-C0i201308-201512
BLACK,TRIM2#,*299
sub69206-0D070
main69206-0D080-B2i201107-201512
MD.GRAY,TRIM1#,(L)
sub69206-0D080
main69206-0D080-B2i201107-201112
MD.GRAY,TRIM1#
sub69206-0D080
main69206-0D080-B2i201112-201408
MD.GRAY,TRIM1#,*299
sub69206-0D080
main69206-0D080-C0i201308-201512
BLACK,TRIM2#,(L)
sub69206-0D080
main69206-0D080-C0i201308-201504
BLACK,TRIM2#,*299
sub69206-0D080
main69206-12190-B3i201112-201306
MD.GRAY,TRIM1#,(J)
sub69206-12190¥3,950
sub69206-0D080
main69206-12190-B3i201112-201306
MD.GRAY,TRIM1#,*300
sub69206-12190¥3,950
sub69206-0D080
main69206-12200-B4i201112-201306
MD.GRAY,TRIM1#,*300
sub69206-12200¥3,040
sub69206-0D070
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-06040i201107-201504
PLATED
main69210-12260i¥2,590201108-201512
PLATING
main69211-02130i201107-201504
NO PAINT REQ.
main69211-02130i201107-201504
NO PAINT REQ.,RUSSIA & UKRAINE SPEC
main69211-02130i201112-201504
NO PAINT REQ.,*299
main69211-02130i201112-201504
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH
main69211-02150i201108-201512
NO PAINT REQ.,RUSSIA & UKRAINE SPEC
main69211-02150i201108-201512
NO PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
main69217-02060i201107-201504
BLACK,DRIVER & PASSENGER
main69217-02060i201107-201112
BLACK,DRIVER SIDE
main69217-02060i201107-201112
BLACK,RUSSIA & UKRAINE SPEC,DRIVER SIDE
main69217-02060i201107-201112
BLACK,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
main69217-02060i201112-201504
BLACK,*299,DRIVER SIDE
main69217-02060i201112-201504
BLACK,RUSSIA & UKRAINE SPEC,*299,DRIVER SIDE
main69217-02060i201112-201504
BLACK,WIRELESS DOOR LOCK-WITH,*299,DRIVER SIDE
main69217-02060i201112-201504
BLACK,*299,RH & LH
main69217-02080i201108-201512
BLACK,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
main69217-02080i201108-201512
BLACK,PASSENGER SIDE
main69217-02080i201108-201512
BLACK,RUSSIA & UKRAINE SPEC,PASSENGER SIDE
main69217-02100i201108-201512
BLACK,DRIVER & PASSENGER
main69217-02100i201108-201512
BLACK,RUSSIA & UKRAINE SPEC,DRIVER SIDE
main69217-02100i201108-201512
BLACK,DRIVER SIDE
main69217-02100i201108-201512
BLACK,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
main69217-06020i201107-201504
*CR,DRIVER SIDE
main69217-0K070i201107-201504
BLACK,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
main69217-0K070i201107-201504
BLACK,RUSSIA & UKRAINE SPEC,PASSENGER SIDE
main69217-0K070i201107-201504
BLACK,PASSENGER SIDE
main69217-0K110i201107-201504
*CR,PASSENGER SIDE
main69217-0K110i201108-201512
*CR,(L),PASSENGER SIDE
main69217-12010i¥390201108-201512
*CR,DRIVER SIDE
main69217-33030i¥1,160201108-201512
*CR,(J),PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-06040i201107-201504
PLATED
main69210-12260i¥2,590201108-201512
PLATING
main69211-02130i201112-201504
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH
main69211-02130i201112-201504
NO PAINT REQ.,*299
main69211-02130i201107-201504
NO PAINT REQ.
main69211-02130i201107-201504
NO PAINT REQ.,RUSSIA & UKRAINE SPEC
main69211-02150i201108-201512
NO PAINT REQ.
main69211-02150i201108-201512
NO PAINT REQ.,RUSSIA & UKRAINE SPEC
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-02060i201108-201512
main69241-06020i201112-201504
RUSSIA & UKRAINE SPEC,*299
main69241-06020i201107-201112
RUSSIA & UKRAINE SPEC
main69241-06020i201107-201504
(L)
main69241-06020i201112-201504
*299
main69241-42020i¥400201112-201504
(J)
main69241-42020i¥400201112-201305
RUSSIA & UKRAINE SPEC,*300
main69241-42020i¥400201112-201504
*300
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-02060i201108-201512
main69242-06020i201112-201504
*299
main69242-06020i201112-201504
RUSSIA & UKRAINE SPEC,*299
main69242-06020i201107-201112
RUSSIA & UKRAINE SPEC
main69242-06020i201107-201504
(L)
main69242-42010i¥540201112-201504
(J)
main69242-42010i¥540201112-201504
*300
main69242-42010i¥540201112-201305
RUSSIA & UKRAINE SPEC,*300
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030i¥160201108-201512
main69293-33010i¥90201107-201504
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i¥160201108-201512
main69293-33020i¥90201107-201504
69310LOCK ASSY, FRONT DOOR, RH
main69030-0K010i201107-201504
main69030-0K020i201107-201412
main69030-0K060i201108-201512
main69030-0K070i201108-201408
main69030-0K230i201409-201512
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69030-0K240i201501-201504
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69310-0K020i201107-201504
main69310-0K080i201108-201512
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-0K010i201107-201504
main69311-0K060i201108-201512
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-0K010i201107-201504
main69312-0K060i201108-201512
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i¥120201107-201512
69320LOCK ASSY, FRONT DOOR, LH
main69040-0K010i201107-201412
main69040-0K020i201107-201504
main69040-0K060i201108-201408
main69040-0K070i201108-201512
main69040-0K190i201409-201512
main69040-0K200i201501-201504
main69320-0K020i201107-201504
main69320-0K080i201108-201512
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-0K010i201107-201504
main69410-0K040i201108-201512
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-0K010i201107-201504
main69710-0K020i201108-201512
main69710-0K040i201107-201504
main69710-0K050i201108-201512
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-0K010i201107-201504
main69710-0K020i201108-201512
main69710-0K040i201107-201504
main69710-0K050i201108-201512
69749CLAMP, FRONT DOOR LOCK LINK
main69749-32040i¥210201107-201512
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-0K010i201107-201504
main69750-0K020i201108-201512
main69750-0K040i201107-201504
main69750-0K050i201108-201512
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69760-0K010i201107-201504
main69760-0K020i201108-201512
main69760-0K040i201107-201504
main69760-0K050i201108-201512
9014860022
main90148-60022¥60
90148T0015
main90148-T0015

26 parts on this diagram · 1 diagram in section
