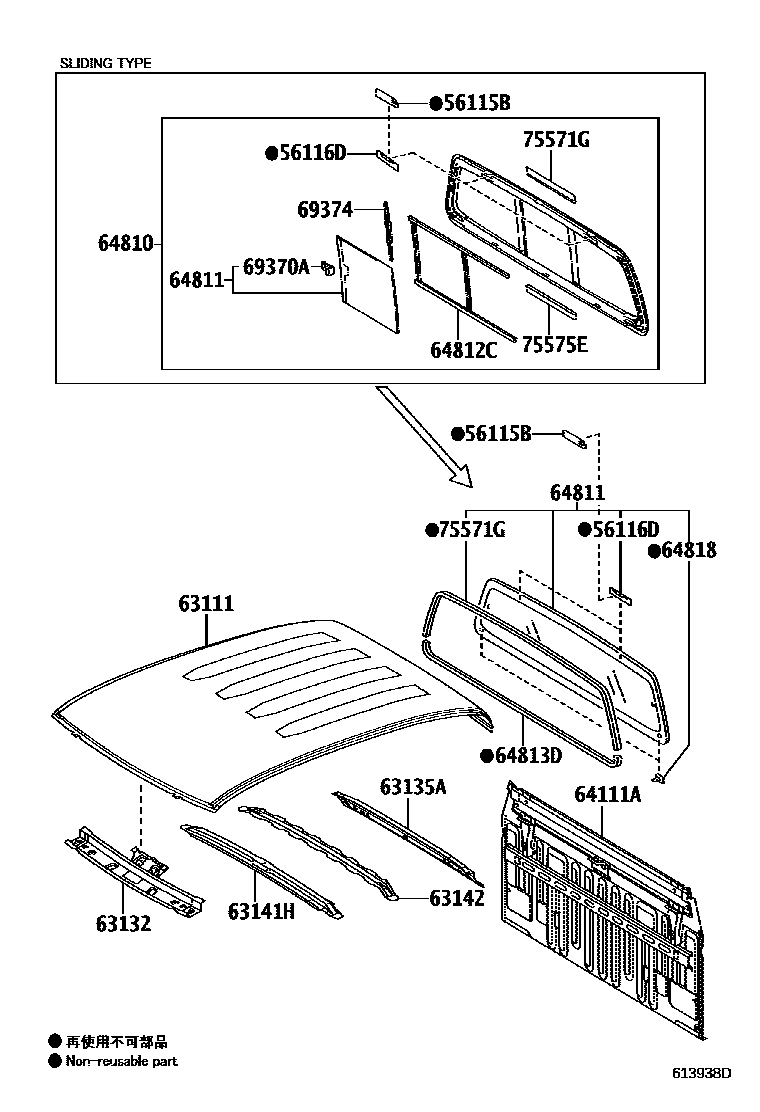

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-02020iKUN2#,35201107-201512

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-02020iKUN2#,35201107-201512

63111PANEL, ROOF

main63111-0K020iKUN2#,35..DCB,THDCB201107-201512

main63111-0K040iKUN25,35..SCB,THSCB201107-201512

main63111-0K140iKUN25,35..XTR201107-201504

63132PANEL, WINDSHIELD HEADER, INNER

main63102-0K040iKUN2#,35..DCB,THDCB,XTR201107-201512

main63132-0K010iKUN25,35..SCB,THSCB201107-201512

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-0K011iKUN2#,35201107-201512

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-0K011iKUN2#,35..DCB,THDCB,XTR201107-201512

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-0K011iKUN2#,35..DCB,THDCB201107-201512

64111APANEL, BACK

main64101-0K010iKUN2#,35..DCB201107-201512

sub64101-0K050

main64101-0K020iKUN25,35..SCB201107-201512

sub64101-0K060

main64101-0K030iKUN25,35..XTR201107-201208

main64101-0K050iKUN2#,35..THDCB201208-201504

main64101-0K060iKUN25,35..THSCB201208-201504

main64101-0K070iKUN25,35..XTR201208-201504

64810WINDOW ASSY, BACK

main64810-0K020iKUN35..DLX;KUN35..SCB..SR;KUN25..SCB,THSCB;KUN2#..LHD..(DCB,THDCB,XTR)..DLX201107-201512

sub64810-0K080

64811GLASS, BACK WINDOW

main64801-0K040iKUN2#..RHD..DCB..DLX201108-201512

*EHT,T=3.5,GREEN

main64801-0K070iKUN2#,35..(THDCB,XTR)..SR201107-201504

*EHT,T=3.5,PRIVACY

sub64801-0K071

main64801-0K080iKUN2#,35..DCB..SR201108-201512

*EHT,T=3.5,PRIVACY

main64801-0K100iKUN25..RHD..XTR201107-201504

*EHT,T=3.5,GREEN

sub64801-0K102

main64811-0K130iKUN35..DLX;KUN35..SCB..SR;KUN25..SCB,THSCB;KUN2#..LHD..(DCB,THDCB,XTR)..DLX201107-201512

sub64811-0K280

64812CWEATHERSTRIP, BACK WINDOW GLASS

main64812-0K010iKUN35..DLX;KUN35..SCB..SR;KUN25..SCB,THSCB;KUN2#..LHD..(DCB,THDCB,XTR)..DLX201107-201512

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-0K020iKUN26..RHD;KUN26..LHD..SR;KUN25..RHD..(DCB,XTR)..DLX;KUN25,35..(DCB,THDCB,XTR)..SR201107-201512

64818SPACER, BACK WINDOW GLASS

main64818-0K010iKUN26..RHD;KUN26..LHD..SR;KUN25..RHD..(DCB,XTR)..DLX;KUN25,35..(DCB,THDCB,XTR)..SR201107-201512

69370ALOCK ASSY, BACK WINDOW

main69370-0K010iKUN35..DLX;KUN35..SCB..SR;KUN25..SCB,THSCB;KUN2#..LHD..(DCB,THDCB,XTR)..DLX201107-201512

69374CATCH, BACK WINDOW LOCK

main69374-0K010iKUN35..DLX;KUN35..SCB..SR;KUN25..SCB,THSCB;KUN2#..LHD..(DCB,THDCB,XTR)..DLX201107-201512

75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1

main75571-0K010iKUN26..RHD;KUN26..LHD..SR;KUN25..RHD..(DCB,XTR)..DLX;KUN25,35..(DCB,THDCB,XTR)..SR201107-201512

main75571-0K040iKUN35..DLX;KUN35..SCB..SR;KUN25..SCB,THSCB;KUN2#..LHD..(DCB,THDCB,XTR)..DLX201107-201512

75575EMOULDING, BACK WINDOW, OUTSIDE LOWER

main75575-0K010iKUN35..DLX;KUN35..SCB..SR;KUN25..SCB,THSCB;KUN2#..LHD..(DCB,THDCB,XTR)..DLX201107-201512
