FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-0K211-B1iKUN25..RHD..DCB;KUN26..RHD..5FC201108-201210

MD.GRAY,TRIM1#

sub58510-0K212

main58510-0K212-B1iKUN25..RHD..DCB;KUN26..RHD..5FC201211-201512

MID. GRAY,TRIM1#

main58510-0K212-C0iKUN25..RHD..DCB;KUN26..RHD..5FC201310-201512

BLACK,TRIM2#

main58510-0K231-B1iKUN35..DCB;KUN26..LHD..DCB..5FC201108-201210

MD.GRAY,TRIM1#

sub58510-0K232

main58510-0K232-B1iKUN35..DCB;KUN26..LHD..DCB..5FC201211-201512

MID. GRAY,TRIM1#

main58510-0K232-C0iKUN35..DCB;KUN26..LHD..DCB..5FC201310-201512

BLACK,TRIM2#

main58510-0K421-B1iKUN25..RHD..SCB201108-201410

MD.GRAY,TRIM1#

main58510-0K421-C0iKUN25..RHD..SCB201310-201410

BLACK,TRIM2#

main58510-0K501-B1iKUN25..RHD..XTR201107-201504

MD.GRAY,TRIM1#

sub58510-0K501

main58510-0K501-C0iKUN25..RHD..XTR201308-201504

BLACK,TRIM2#

sub58510-0K501

main58510-0K551-B1iKUN25..FLD201107-201504

MD.GRAY,TRIM1#

sub58510-0K551

main58510-0K551-C0iKUN25,35..LHD..XTR..EUR201308-201504

BLACK,TRIM2#

sub58510-0K551

main58510-0KC51-B1iKUN35..SCB..SR201107-201512

MD.GRAY,TRIM1#

sub58510-0KC51

main58510-0KC51-C0iKUN35..SCB..SR201308-201512

BLACK,TRIM2#

sub58510-0KC51

main58510-0KC61-B1iKUN25..THSCB..CBU;KUN25..LHD..SCB..SR201107-201504

MD.GRAY,TRIM1#

sub58510-0KC61

main58510-0KC61-C0iKUN25..THSCB..CBU;KUN25..LHD..SCB..SR201308-201512

BLACK,TRIM2#

sub58510-0KC61

main58510-0KC71-B1iKUN25..THSCB..CBU201408-201512

MD.GRAY,TRIM1#

sub58510-0KC71

main58510-0KC71-C0iKUN25..THSCB..CBU201408-201512

BLACK,TRIM2#

sub58510-0KC71

main58510-0KE71-B0iKUN25..FLD201208-201504

MD.GRAY,TRIM1#

sub58510-0KE71

main58510-0KE71-C0iKUN25..LHD..XTR..EUR201308-201504

BLACK,TRIM2#

sub58510-0KE71

main58510-0KE71-C0iKUN25..LHD..XTR..EUR201308-201504

REAR SEAT-WITHOUT,BLACK,TRIM2#

sub58510-0KE71

main58510-0KK51-B0iKUN25,35..THDCB;KUN26..THDCB..5FC201107-201504

MID. GRAY,TRIM1#

sub58510-0KK51

main58510-0KK51-C0iKUN25,35..THDCB;KUN26..THDCB..5FC201308-201504

BLACK,TRIM2#

sub58510-0KK51

main58510-0KK91-B1iKUN26..RHD..5F201108-201210

MD.GRAY,TRIM1#

main58510-0KK92-B1iKUN26..RHD..5F201211-201310

MID. GRAY,TRIM1#

main58510-0KK92-C0iKUN26..RHD..5F201310-201512

BLACK,TRIM2#

main58510-0KL01-B1iKUN26..THDCB..5F201107-201308

MD.GRAY,TRIM1#

main58510-0KL01-C0iKUN26..THDCB..5F201308-201504

BLACK,TRIM2#

main58510-0KL11-B1iKUN2#..LHD..DCB..5F201108-201210

MD.GRAY,TRIM1#

sub58510-0KL12

main58510-0KL12-B1iKUN2#..LHD..DCB..5F201211-201310

MID. GRAY,TRIM1#

main58510-0KL12-C0iKUN2#..LHD..DCB..5F201310-201512

BLACK,TRIM2#

main58510-0KM81-B0iKUN25..RHD..SCB201410-201512

MD.GRAY,TRIM1#

sub58510-0KM81

main58510-0KM81-C0iKUN25..RHD..SCB201410-201512

BLACK,TRIM2#

sub58510-0KM81

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-T0014iKUN25..RHD..(SCB,XTR);KUN2#,35..LHD..(THDCB,XTR)201308-201512

main90467-T0029-B0iKUN25..RHD..(SCB,XTR);KUN2#,35..LHD..(THDCB,XTR)201107-201310

MD.GRAY,TRIM1#

main90467-T0029-C0iKUN25,35..LHD..(SCB,THSCB)201308-201310

BLACK,TRIM2#

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-T0031-B0iKUN25..THSCB;KUN25..RHD..SCB;KUN35..SCB,THSCB201107-201512

MD.GRAY,TRIM1#

main90467-T0031-C0iKUN25..RHD..SCB201308-201512

BLACK,TRIM2#

58591COVER, FLOOR CARPET

main58591-0K010-B1iKUN2#,35..DCB201107-201504

MD.GRAY,TRIM1#

sub58591-0K010

main58591-0K010-C0iKUN2#,35..THDCB201308-201504

BLACK,TRIM2#

sub58591-0K010

58694APLATE, MAT SET, UPPER

main58694-76010iKUN25..LHD..SCB..SR201107-201512

58698BPLATE, MAT SET, LOWER

main58698-76010iKUN25..LHD..SCB..SR201107-201512

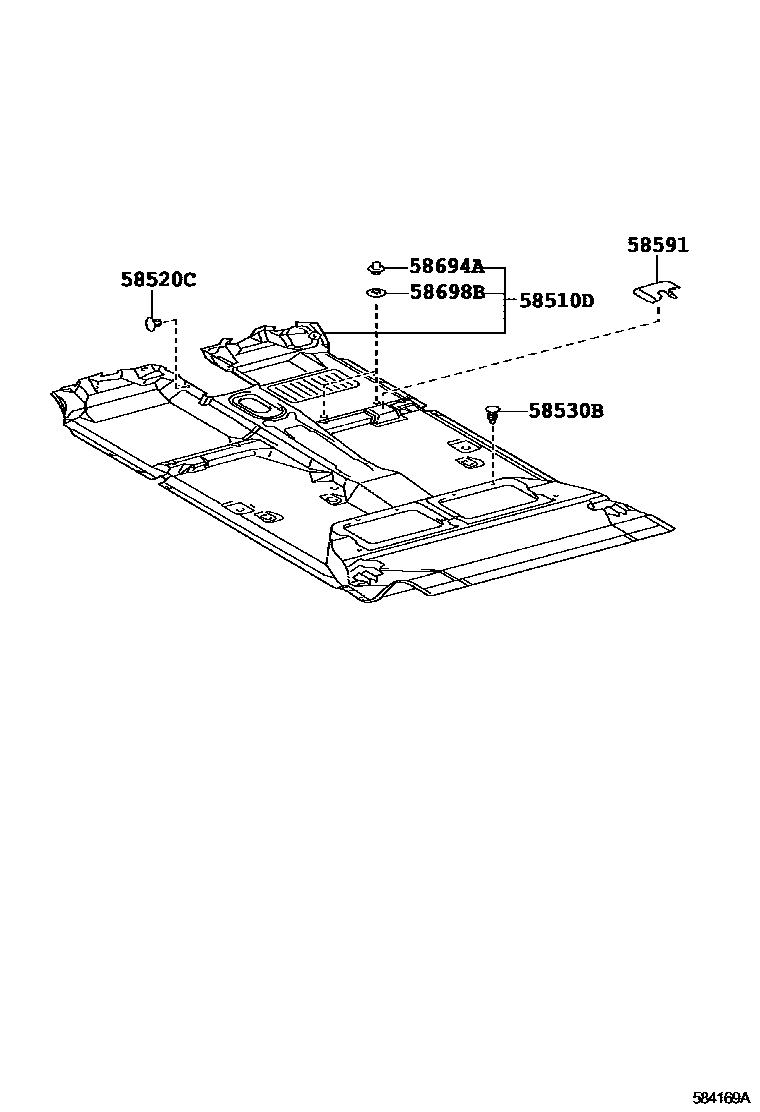

6 parts on this diagram · 3 diagrams in section
