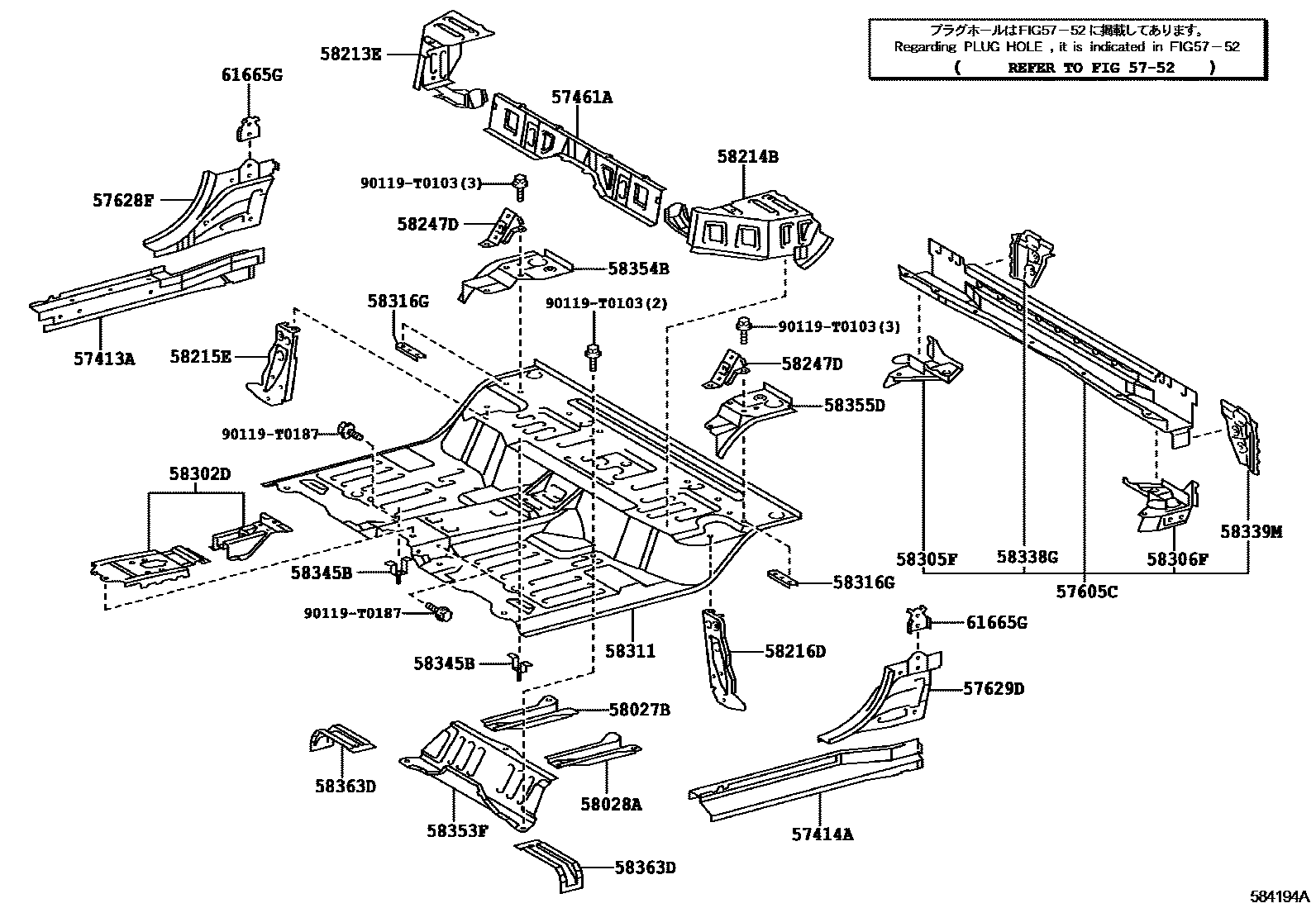

REAR FLOOR PANEL & REAR FLOOR MEMBER
57413AMEMBER, FLOOR SIDE, INNER REAR RH
57414AMEMBER, FLOOR SIDE, INNER REAR LH
57461AMEMBER, CENTER FLOOR CROSS
5752
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57628FPLATE, REAR FLOOR SIDE MEMBER, RH
57629DPLATE, REAR FLOOR SIDE MEMBER, LH
58027BREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58028AREINFORCE SUB-ASSY, SEAT BELT ANCHOR, NO.2
58213EPANEL, SEAT FLOOR SIDE, RH
58214BPANEL, SEAT FLOOR SIDE, LH
58215EBRACKET, REAR SEAT MOUNTING, RH
58216DBRACKET, REAR SEAT MOUNTING, LH
58247DBRACKET, REAR SEAT HINGE, OUTER RH
58302DPANEL SUB-ASSY, REAR FLOOR, FRONT
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58311PAN, REAR FLOOR
58316GRETAINER, REAR SEAT, NO.1
58338GGUSSET, CAB REAR MOUNTING, RR RH
58339MGUSSET, CAB REAR MOUNTING, REAR LH
58345BBRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58353FREINFORCEMENT, REAR FLOOR PANEL, NO.3
58354BREINFORCEMENT, REAR FLOOR PANEL, NO.4
58355DREINFORCEMENT, REAR FLOOR PANEL, NO.5
58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH
61665GREINFORCEMENT, SEAT BELT ANCHORAGE TO QUATER WHEE HOUSE, RH
90119T0103
main90119-T0103
90119T0187
main90119-T0187
29 parts on this diagram · 2 diagrams in section
