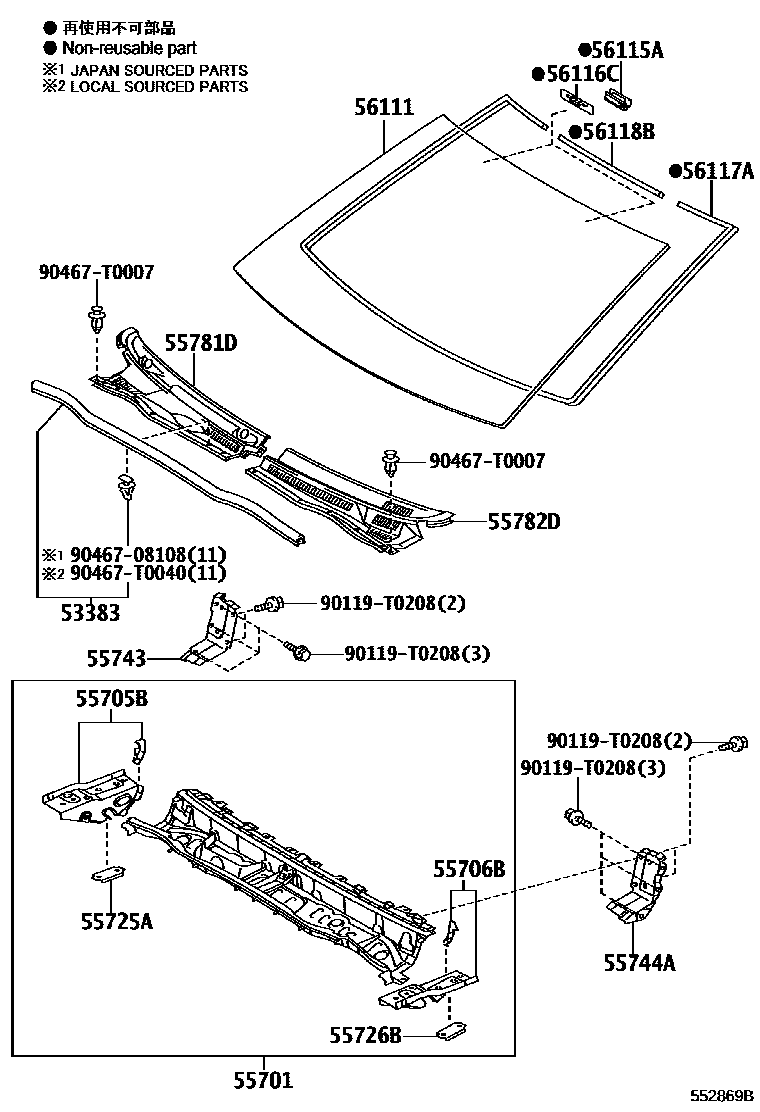

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383SEAL, HOOD TO COWL TOP

main53383-0K010iKUN2#,35201107-201512

55701PANEL SUB-ASSY, COWL

main55700-0K090iKUN2#..RHD201107-201512

main55700-0K100iKUN2#,35..LHD201107-201512

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0K050iKUN2#,35201107-201512

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0K050iKUN2#,35201107-201512

55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH

main55725-0K010iKUN2#,35201107-201512

55726BREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55725-0K010iKUN2#,35201107-201512

55743PANEL, COWL TOP OUTSIDE CORNER, RH

main55743-0K010iKUN2#,35201107-201512

55744AREINFORCEMENT, PEDAL BRACKET MOUNTING

main55744-0K010iKUN2#,35201107-201512

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-0K010iKUN25..RHD..XTR201107-201302

main55708-0K020iKUN26..THDCB201107-201302

main55708-0K021iKUN26..THDCB201303-201504

main55708-0K030iKUN25,35..LHD..(THDCB,THSCB,XTR)201107-201302

main55708-0K031iKUN25,35..LHD..(THDCB,THSCB,XTR)201303-201504

main55708-0K040iKUN2#..RHD..(DCB,SCB)201108-201512

main55708-0K060iKUN2#,35..LHD..(DCB,SCB)201108-201512

main55708-0K290iKUN25..RHD..XTR201303-201504

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-0K020iKUN2#,35..LHD..(THDCB,THSCB,XTR)201107-201302

main55709-0K021iKUN2#,35..LHD..(THDCB,THSCB,XTR)201303-201504

main55709-0K030iKUN25..RHD..XTR201107-201302

main55709-0K031iKUN25..RHD..XTR201303-201504

main55709-0K050iKUN2#,35..LHD..(DCB,SCB)201108-201512

main55709-0K060iKUN2#..RHD..(DCB,SCB)201108-201512

56111GLASS, WINDSHIELD

main56101-0K050iKUN25..SCB;KUN35..SCB..SR;KUN25..DCB..DLX;KUN35..(DCB,SCB)..DLX201108-201512

*LAM,T=4.96,GREEN

main56101-0K060iKUN26..DCB;KUN25,35..DCB..SR201108-201512

*LAM,T=4.96,GREEN

main56101-0K190iKUN25,35..(THDCB,THSCB,XTR)..DLX201107-201504

*LAM,T=4.76,GREEN

main56101-0K200iKUN2#,35..(THDCB,XTR)..SR201107-201504

*LAM,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-02020iKUN2#,35201107-201512

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-02020iKUN2#,35201107-201512

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0K010iKUN2#,35201107-201512

L=3089

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-0K010iKUN2#,35201107-201512

L=706

90119T0208

main90119-T0208

9046708108

main90467-08108

90467T0007

main90467-T0007

90467T0040

main90467-T0040

19 parts on this diagram · 2 diagrams in section
