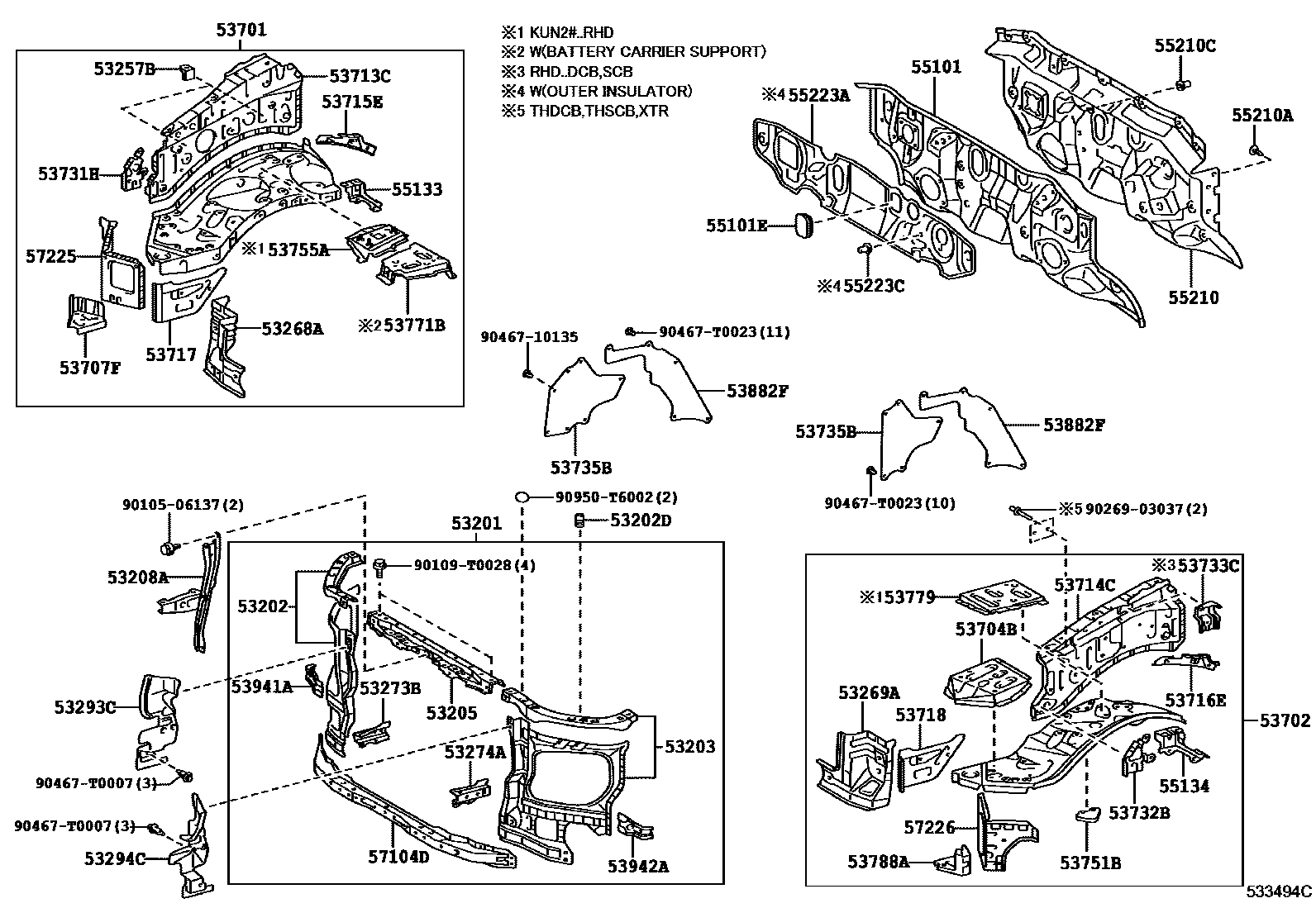

FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-0K170iKUN2#,35201107-201512

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-0K010iKUN2#,35201107-201512

53202DCUSHION, RADIATOR SUPPORT

main90541-15019iKUN2#,35201107-201512

(J)

main90541-T0006iKUN2#,35201107-201512

(L)

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-0K010iKUN2#,35201107-201512

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-0K010iKUN2#,35201107-201512

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-0K010iKUN2#,35201107-201512

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-35030iKUN2#,35..LHD;KUN25..RHD..XTR201107-201512

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-0K010iKUN2#,35201107-201512

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-0K010iKUN2#,35201107-201512

53273BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, RH

main53273-0K010iKUN2#,35201107-201512

53274AREINFORCEMENT, RADIATOR SUPPORT, LH

main53274-0K010iKUN2#,35201107-201512

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-0K050iKUN2#,35201107-201512

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-0K050iKUN2#,35201107-201512

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0K012iKUN25..RHD..XTR201107-201504

main53701-0K062iKUN26..LHD..DCB201108-201512

main53701-0K182iKUN2#..RHD..(DCB,SCB)201108-201512

main53701-0K190iKUN26..THDCB;KUN25,35..LHD201107-201512

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0K020iKUN2#,35..LHD201107-201203

sub53702-0K021

sub44507-0K011

sub44590-0K011

sub44590-0K021

sub90179-08249

main53702-0K021iKUN2#,35..LHD..(THDCB,THSCB,XTR)201204-201504

main53702-0K041iKUN2#..RHD..(DCB,SCB)201108-201209

sub53702-0K042

main53702-0K042iKUN2#..RHD..(DCB,SCB)201210-201512

main53702-0K131iKUN25..RHD..XTR201107-201504

main53702-0K170iKUN2#,35..LHD..(DCB,SCB)201210-201512

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-0K010iKUN2#,35201107-201512

53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH

main53707-0K010iKUN2#,35201107-201512

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-0K010iKUN2#,35201107-201512

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-0K010iKUN2#..RHD..(DCB,SCB)201107-201504

main53714-0K050iKUN2#,35..DCB,SCB201210-201512

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-0K030iKUN2#,35201107-201512

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-0K030iKUN2#,35201107-201512

53717PLATE, FENDER APRON, RH

main53717-0K010iKUN2#,35201107-201512

53718PLATE, FENDER APRON, LH

main53718-0K010iKUN2#,35201107-201512

53731HPATCH, FRONT FENDER APRON, RH

main53731-0K010iKUN2#,35201107-201512

53732BPATCH, FRONT FENDER APRON, LH

main53732-0K010iKUN2#,35201107-201512

53733CPATCH, FRONT FENDER APRON

main53733-0K020iKUN2#..RHD..(DCB,SCB)201108-201512

53735BSEAL, FRONT FENDER APRON, UPPER

main53735-0K020iKUN2#,35201107-201512

LH

main53735-0K050iKUN2#,35201107-201512

RH

53751BBRACKET, CHARCOAL CANISTER MOUNTING

main53751-0K010iKUN2#,35201107-201512

53755AREINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1

main53755-0K010iKUN2#..RHD201107-201512

53771BSUPPORT, BATTERY CARRIER, RH

main53703-0K010iKUN26..LHD..DCB201108-201512

53779SEAT, BATTERY CARRIER SUPPORT

main53779-0K011iKUN2#..RHD201107-201512

53788AGUSSET, FRONT FENDER APRON, LOWER LH

main53708-0K010iKUN2#,35201107-201512

53882FSEAL, FRONT FENDER

main53885-0K020iKUN2#,35201107-201512

53941ABRACKET, FRONT END PANEL, NO.1 RH

main53941-0K070iKUN2#,35201107-201512

53942ABRACKET, FRONT END PANEL, NO.1 LH

main53942-0K060iKUN2#,35201107-201512

55101PANEL SUB-ASSY, DASH

main55101-0K010iKUN2#..RHD..5F201107-201512

main55101-0K020iKUN26..RHD..5FC201108-201512

main55101-0K030iKUN2#,35..LHD..5F201107-201512

main55101-0K040iKUN26..LHD..5FC201107-201512

55101EGROMMET, DASH PANEL, NO.2

main87128-0K010iKUN2#,35201107-201512

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-0K010iKUN2#,35201107-201512

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-0K010iKUN2#,35201107-201512

55210INSULATOR ASSY, DASH PANEL

main55210-0K080iKUN2#..RHD201107-201309

sub55210-0K081

main55210-0K081iKUN2#..RHD201310-201312

sub55210-0K220

main55210-0K090iKUN2#,35..LHD201107-201309

sub55210-0K091

main55210-0K091iKUN2#,35..LHD201310-201312

sub55210-0K230

main55210-0K220iKUN2#..RHD201312-201512

main55210-0K230iKUN2#,35..LHD201312-201512

55210ACLIP

main90467-T0004-B0iKUN2#,35201107-201512

LT.GRAY,TRIM1#,2#

55210CCLIP

main90467-06197iKUN2#,35..LHD201107-201512

(J)

main90467-T0032iKUN2#..RHD201107-201512

(L)

55223AINSULATOR, DASH PANEL, OUTER

main55223-0K010iKUN2#..RHD201107-201512

main55223-0K020iKUN2#,35..LHD201107-201512

55223CCLIP

main90467-T0032iKUN2#..RHD201107-201512

57104DMEMBER SUB-ASSY, FRONT CROSS

main57161-0K010iKUN2#,35201107-201512

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-0K010iKUN2#,35201107-201512

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-0K010iKUN2#,35201107-201512

9010506137

main90105-06137

90109T0028

main90109-T0028

9026903037

main90269-03037

9046710135

main90467-10135

90467T0007

main90467-T0007

90467T0023

main90467-T0023

90950T6002

main90950-T6002

54 parts on this diagram · 1 diagram in section
