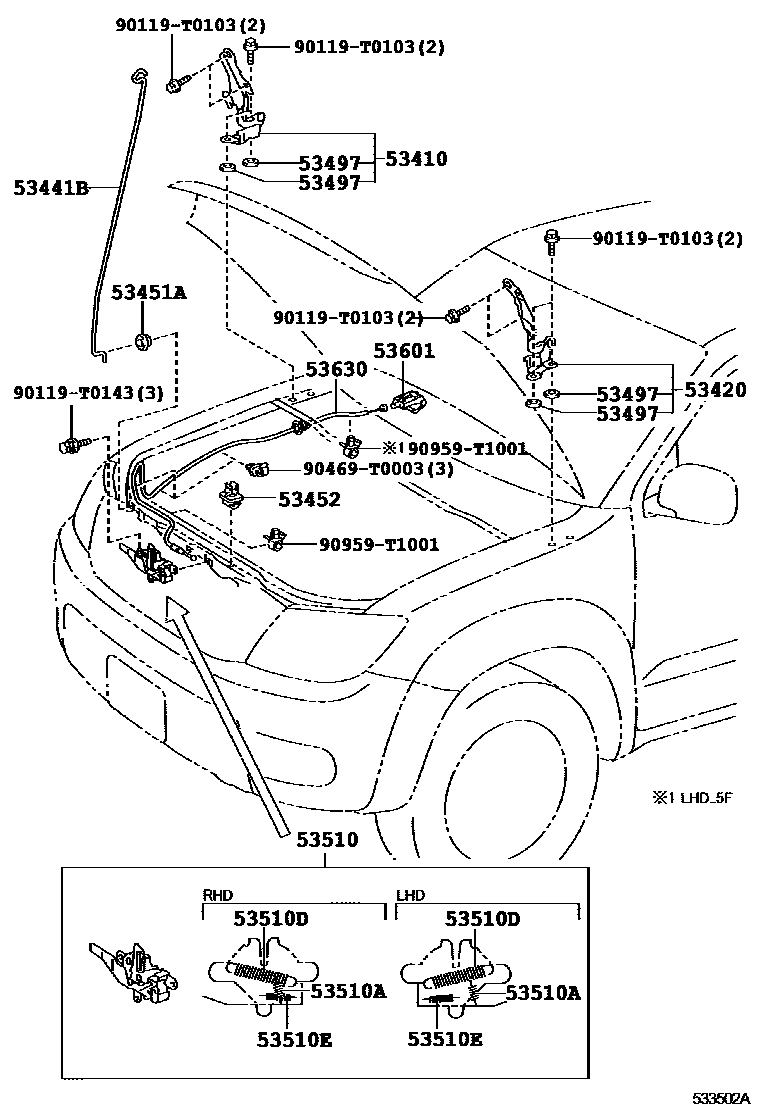

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0K020iKUN2#,35..DCB,SCB201108-201512

main53410-0K100iKUN2#,35..THDCB,THSCB,XTR201107-201504

53420HINGE ASSY, HOOD, LH

main53420-0K020iKUN2#,35..DCB,SCB201108-201512

main53420-0K100iKUN2#,35..THDCB,THSCB,XTR201107-201504

53441BSUPPORT, HOOD

main53441-0K030iKUN2#,35201107-201512

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-T0006iKUN2#,35201107-201512

53452HOLDER, HOOD STAY

main53452-0K010iKUN2#,35201107-201512

53497PAD, HOOD HINGE, NO.1

main53497-0K020iKUN2#,35..DCB,SCB201108-201512

T=1.0

main53497-0K070iKUN2#,35..DCB,SCB201108-201512

T=2.0

main53497-0K100iKUN2#,35..DCB,SCB201108-201512

T=0.5

main53497-20070iKUN2#,35..THDCB,THSCB,XTR201107-201504

T=2.0

main53497-42010iKUN2#,35..THDCB,THSCB,XTR201107-201504

T=0.5

53510LOCK ASSY, HOOD

main53510-0K270iKUN25..RHD..XTR201107-201212

sub53510-0K271

main53510-0K271iKUN25..RHD..XTR201301-201504

main53510-0K280iKUN2#,35..LHD..(THDCB,THSCB,XTR)201107-201212

sub53510-0K281

main53510-0K281iKUN2#,35..LHD..(THDCB,THSCB,XTR)201301-201504

main53510-0K310iKUN2#..RHD..(DCB,SCB)201108-201512

main53510-0K320iKUN2#,35..LHD..(DCB,SCB)201108-201512

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-12063iKUN2#,35..DCB,SCB201108-201512

WD=1.2,CW=8.5

main90506-T0004iKUN2#,35..THDCB,THSCB,XTR201107-201504

WD=1.2,CW=8.5

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-T0003iKUN2#,35201107-201512

WD=1.8,CW=13

sub90506-18067

53510ESPRING, TENSION(FOR HOOD LOCK)

main90080-50412iKUN2#,35..DCB,SCB201108-201512

WD=0.9,CW=21

main90506-T0005iKUN2#,35..THDCB,THSCB,XTR201107-201504

WD=0.9,CW=21

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B6iKUN2#,35201107-201512

MD.GRAY,TRIM1#

sub53601-52010

main53601-52010-C0iKUN2#,35..THDCB,THSCB,XTR201308-201512

BLACK,TRIM2#

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0K010iKUN2#,35..THDCB,THSCB,XTR201107-201512

main53630-0K110iKUN2#,35..DCB,SCB201108-201208

sub53630-0K010

90119T0103

main90119-T0103

90119T0143

main90119-T0143

90469T0003

main90469-T0003

90959T1001

main90959-T1001

16 parts on this diagram · 1 diagram in section
