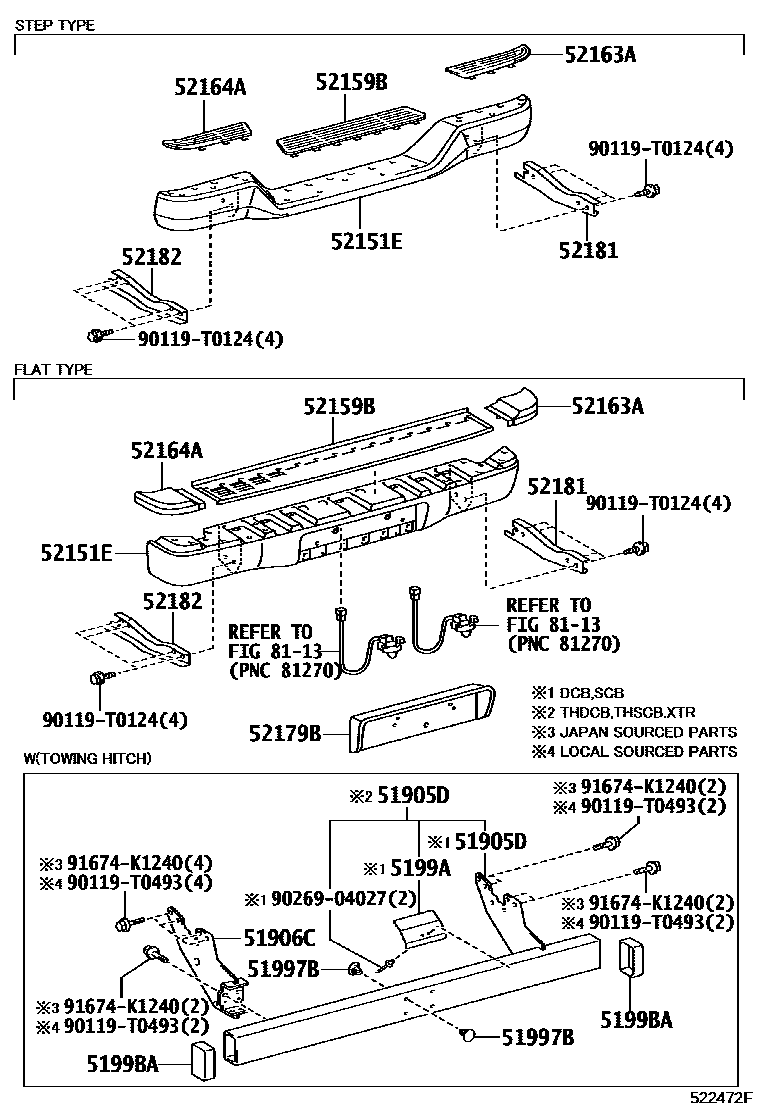

REAR BUMPER & BUMPER STAY

51905DBRACKET SUB-ASSY, RECEIVER HITCH, RH

main51905-0K010iKUN25..(THSCB,XTR)..DLX..CBU201107-201504

main51905-0K020iKUN25..XTR..SR;KUN2#..THDCB..CBU;KUN35..(THDCB,THSCB,XTR)..CBU201107-201504

REAR BUMPER-FLAT TYPE(STEEL & PAINTED)

main51905-0K020iKUN25..XTR..SR;KUN2#..THDCB..CBU;KUN35..(THDCB,THSCB,XTR)..CBU201107-201504

REAR BUMPER-FLAT TYPE(STEEL & PLATED)

main51905-0K900iKUN35..SCB..SR;KUN25..SCB..DLX..CBU201108-201512

REAR BUMPER-STEP TYPE(STEEL & PAINTED)

main51905-0K901iKUN26..DCB;KUN35..DCB..SR;KUN25..DCB..DLX..CBU;KUN25..(DCB,SCB)..SR;KUN35..(DCB,SCB)..DLX..CBU¥77,600201108-201512

REAR BUMPER-FLAT TYPE(STEEL & PAINTED)

51906CBRACKET SUB-ASSY, RECEIVER HITCH, LH

main51906-0K010iKUN35..SCB..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU201107-201512

main51906-0K020iKUN26;KUN25..SR;KUN35..DLX..CBU;KUN35..(DCB,THDCB,XTR)..SR;KUN25..(DCB,THDCB)..DLX..CBU201107-201512

REAR BUMPER-FLAT TYPE(STEEL & PAINTED)

51997BCAP, RECEIVER HITCH

main51997-0K020iKUN2#,35..CBU201107-201512

5199AINSULATOR, HITCH CROSS HEAT

main5199A-0K010iKUN2#,35..(DCB,SCB)..CBU201108-201512

5199BACAP, REAR UNDERRUN PROTECTION

main5199B-0K010iKUN2#,35..CBU201107-201512

52151EBAR, REAR BUMPER

main52105-04040iKUN35..SCB..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU201107-201512

NO PAINT REQ.

main52105-0K010iKUN26,35..LHD..DLX..CBU;KUN25..LHD..(DCB,THDCB)..CBU201107-201512

NO PAINT REQ.

main52105-0K010iKUN26,35..LHD..DLX..CBU;KUN25..LHD..(DCB,THDCB)..CBU201107-201512

NO PAINT REQ.,REAR BUMPER-FLAT TYPE(STEEL & PAINTED)

main52105-0K061iKUN26..SR;KUN25..XTR..SR;KUN25..RHD..DCB..SR¥96,900201107-201512

PLATED

main52105-0K061iKUN26..SR;KUN25..XTR..SR;KUN25..RHD..DCB..SR¥96,900201107-201512

PLATED,REAR BUMPER-FLAT TYPE(STEEL & PLATED)

52159BPLATE, REAR BUMPER

main52159-04010iKUN35..SCB..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU201107-201512

main52159-0K010iKUN35..DLX..CBU;KUN2#..(DCB,THDCB,XTR)..SR;KUN2#..LHD..(DCB,THDCB)..DLX..CBU¥11,100201107-201512

REAR BUMPER-FLAT TYPE(STEEL & PAINTED)

main52159-0K010iKUN35..DLX..CBU;KUN2#..(DCB,THDCB,XTR)..SR;KUN2#..LHD..(DCB,THDCB)..DLX..CBU¥11,100201107-201512

REAR BUMPER-FLAT TYPE(STEEL & PLATED)

52163APLATE, REAR BUMPER, RH

main52163-04010iKUN35..SCB..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU201107-201512

main52163-0K010iKUN35..DLX..CBU;KUN2#..(DCB,THDCB,XTR)..SR;KUN2#..LHD..(DCB,THDCB)..DLX..CBU¥2,880201107-201512

REAR BUMPER-FLAT TYPE(STEEL & PAINTED)

main52163-0K010iKUN35..DLX..CBU;KUN2#..(DCB,THDCB,XTR)..SR;KUN2#..LHD..(DCB,THDCB)..DLX..CBU¥2,880201107-201512

REAR BUMPER-FLAT TYPE(STEEL & PLATED)

52164APLATE, REAR BUMPER, LH

main52164-04010iKUN35..SCB..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU201107-201512

main52164-0K010iKUN35..DLX..CBU;KUN2#..(DCB,THDCB,XTR)..SR;KUN2#..LHD..(DCB,THDCB)..DLX..CBU¥2,880201107-201512

REAR BUMPER-FLAT TYPE(STEEL & PAINTED)

main52164-0K010iKUN35..DLX..CBU;KUN2#..(DCB,THDCB,XTR)..SR;KUN2#..LHD..(DCB,THDCB)..DLX..CBU¥2,880201107-201512

REAR BUMPER-FLAT TYPE(STEEL & PLATED)

52179BPLATE, REAR BUMPER BAR

main52179-0K010iKUN35..DLX..CBU;KUN2#..(DCB,THDCB,XTR)..SR;KUN2#..LHD..(DCB,THDCB)..DLX..CBU¥5,400201107-201512

REAR BUMPER-FLAT TYPE(STEEL & PAINTED)

main52179-0K010iKUN35..DLX..CBU;KUN2#..(DCB,THDCB,XTR)..SR;KUN2#..LHD..(DCB,THDCB)..DLX..CBU¥5,400201107-201512

REAR BUMPER-FLAT TYPE(STEEL & PLATED)

52181ARM, REAR BUMPER, RH

main52181-0K040iKUN35..DLX..CBU;KUN2#..(DCB,THDCB,XTR)..SR;KUN2#..LHD..(DCB,THDCB)..DLX..CBU¥5,700201107-201512

REAR BUMPER-FLAT TYPE(STEEL & PAINTED)

main52181-0K040iKUN35..DLX..CBU;KUN2#..(DCB,THDCB,XTR)..SR;KUN2#..LHD..(DCB,THDCB)..DLX..CBU¥5,700201107-201512

REAR BUMPER-FLAT TYPE(STEEL & PLATED)

main52181-0K050iKUN35..SCB..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU201107-201512

52182ARM, REAR BUMPER, LH

main52182-0K040iKUN35..DLX..CBU;KUN2#..(DCB,THDCB,XTR)..SR;KUN2#..LHD..(DCB,THDCB)..DLX..CBU¥5,700201107-201512

REAR BUMPER-FLAT TYPE(STEEL & PAINTED)

main52182-0K040iKUN35..DLX..CBU;KUN2#..(DCB,THDCB,XTR)..SR;KUN2#..LHD..(DCB,THDCB)..DLX..CBU¥5,700201107-201512

REAR BUMPER-FLAT TYPE(STEEL & PLATED)

main52182-0K050iKUN35..SCB..SR;KUN25..(SCB,THSCB,XTR)..DLX..CBU201107-201512

8113

90119T0124

main90119-T0124¥190

90119T0493

main90119-T0493

9026904027

main90269-04027¥120

91674K1240

main91674-K1240¥190

17 parts on this diagram · 1 diagram in section
