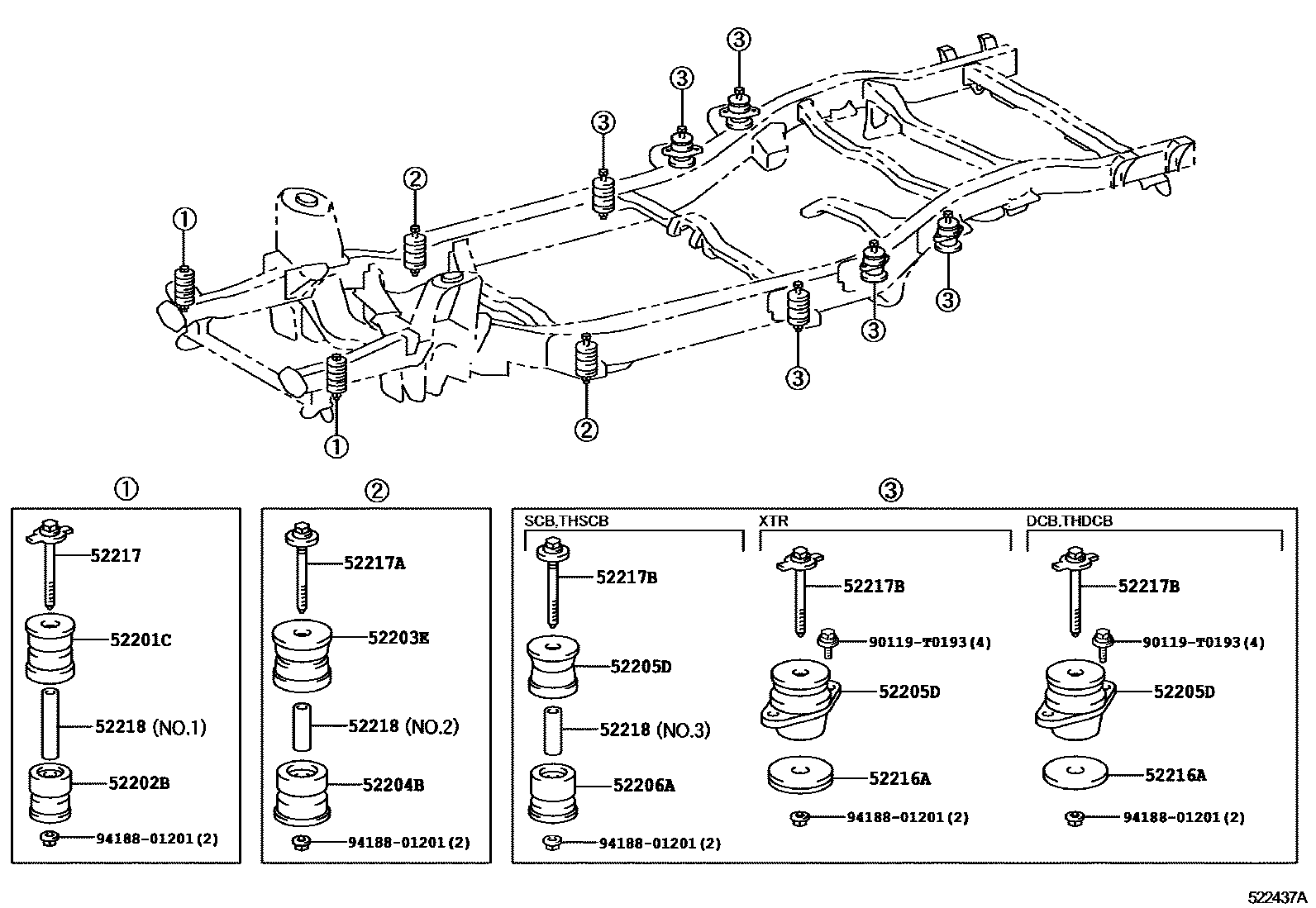

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0K010iKUN2#,35201107-201512

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0K010iKUN2#,35201107-201512

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0K010iKUN2#,35201107-201512

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0K010iKUN2#,35201107-201512

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-0K010iKUN25,35..SCB,THSCB201107-201512

main52205-0K030iKUN25,35..XTR201107-201504

main52205-0K040iKUN2#,35..DCB,THDCB201107-201512

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-0K010iKUN25,35..SCB,THSCB201107-201512

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-0K010iKUN2#,35..DCB,THDCB201107-201512

main52216-0K030iKUN25,35..XTR201107-201504

52217BOLT, BODY MOUNTING

main52217-0K010iKUN2#,35201107-201512

52217ABOLT, BODY MOUNTING

main52217-0K020iKUN2#,35201107-201512

52217BBOLT, BODY MOUNTING

main52217-0K020iKUN2#,35..DCB,SCB,THDCB,THSCB201107-201512

main52217-0K031iKUN25,35..XTR201107-201504

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52218-0K010iKUN2#,35201107-201512

NO.1

main52219-0K010iKUN2#,35201107-201512

NO.3

main52219-0K010iKUN2#,35201107-201512

NO.2

90119T0193

main90119-T0193

9418801201

main94188-01201

13 parts on this diagram · 1 diagram in section
