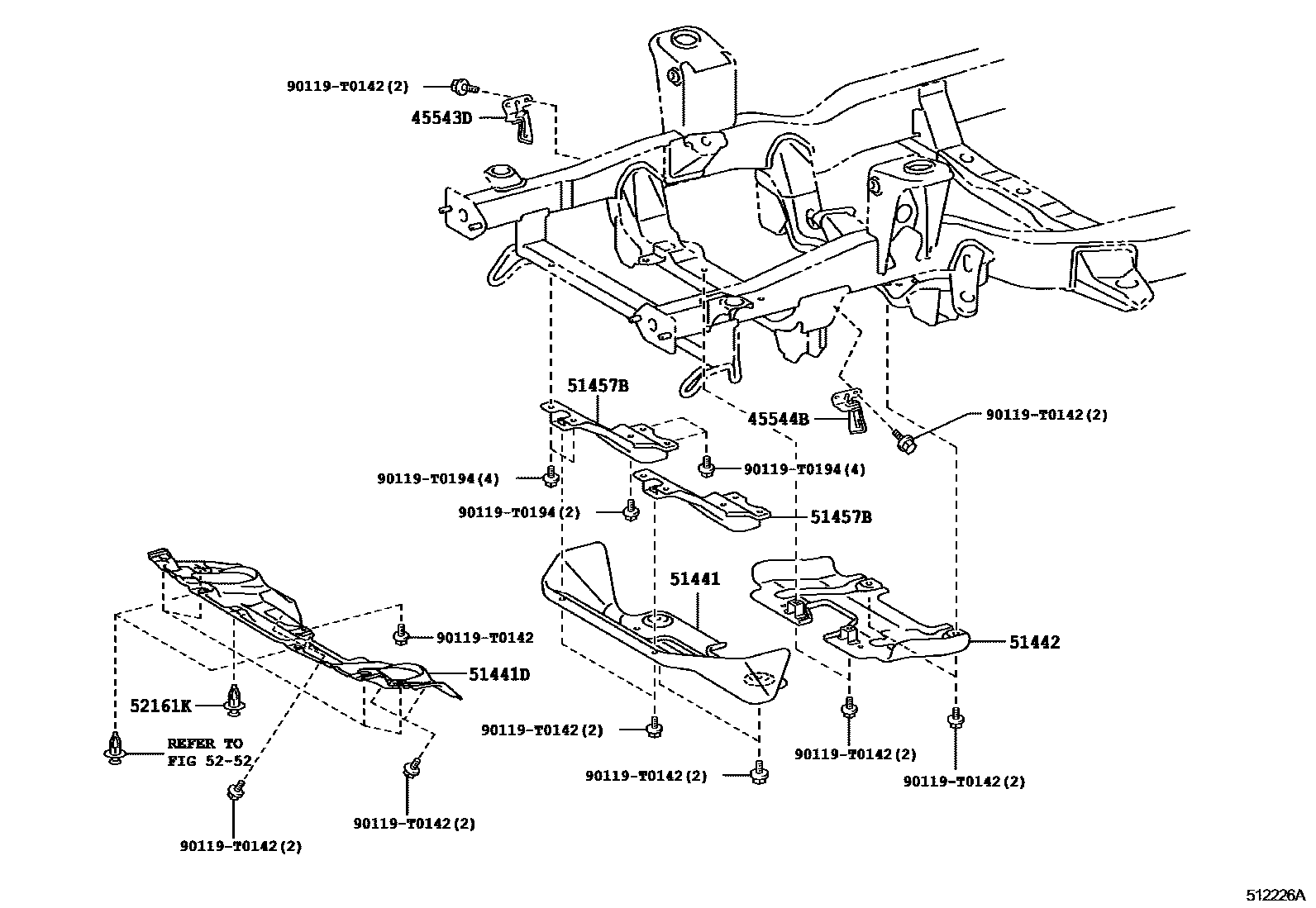

SUSPENSION CROSSMEMBER & UNDER COVER

45543DPROTECTOR, STEERING RACK BOOT, RH

main45543-0K020iKUN2#,35201107-201512

45544BPROTECTOR, STEERING RACK BOOT, LH

main45544-0K020iKUN2#,35201107-201512

51441COVER, ENGINE UNDER, NO.1

main51410-0K021iKUN2#,35201107-201512

51441DCOVER, ENGINE UNDER

main51441-0K050iKUN2#,35201107-201512

51442COVER, ENGINE UNDER, NO.2

main51420-0K010iKUN2#,35201107-201512

51457BBRACE, FRONT SIDE MEMBER TO FRONT SUSPENSION CROSSMEMBER

main51405-0K020iKUN2#,35201107-201512

52161KPIECE, FRONT BUMPER

main52161-0K050iKUN2#,35201107-201512

5252

90119T0142

main90119-T0142

90119T0194

main90119-T0194

10 parts on this diagram · 1 diagram in section
