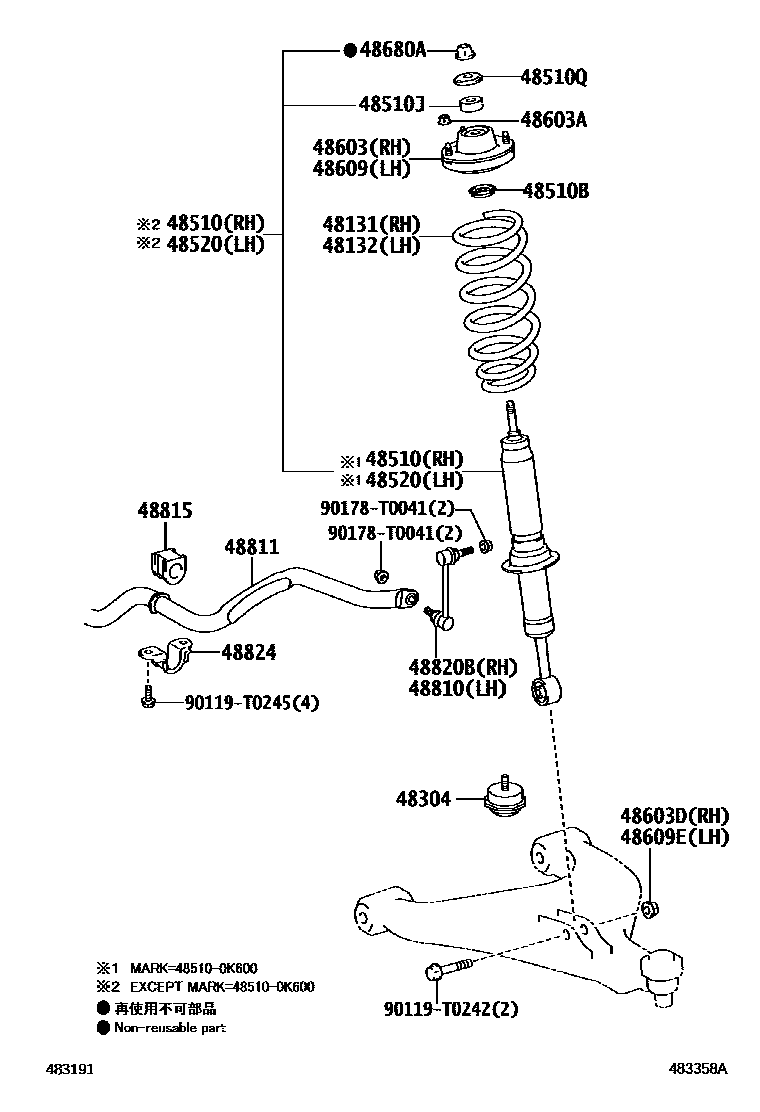

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-0K760iKUN35..THDCB201107-201504

main48131-0K770iKUN35..THSCB,XTR201107-201504

main48131-0K780iKUN25..FLD201208-201504

main48131-0K790iKUN2#..(THDCB,THSCB,XTR)..EUR201107-201504

main48131-0K820iKUN35..DCB,SCB201108-201512

main48131-0K840iKUN25..DCB,SCB201108-201512

main48131-0K850iKUN26..DCB201108-201512

ISRAEL SPEC

main48131-0K850iKUN26..DCB201108-201512

RUSSIA & UKRAINE SPEC

48132SPRING, FRONT COIL, LH

main48131-0K760iKUN35..THDCB201107-201504

main48131-0K770iKUN35..THSCB,XTR201107-201504

main48131-0K780iKUN25..FLD201208-201504

main48131-0K790iKUN25..FLD201107-201504

main48131-0K820iKUN35..DCB,SCB201108-201512

main48131-0K840iKUN25..DCB,SCB201108-201512

main48131-0K850iKUN26..DCB201108-201512

RUSSIA & UKRAINE SPEC

main48131-0K850iKUN26..DCB201108-201512

ISRAEL SPEC

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-0K040iKUN2#,35201107-201512

sub48304-0K041

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-0K600iKUN2#,35..DCB,SCB201108-201311

MARK 48510-0K600

sub48510-8Z029

main48510-8Z029iKUN2#,35..THDCB,THSCB,XTR201107-201407

MARK 48510-0K590

sub48510-8Z174

main48510-8Z174iKUN2#,35201407-201512

MARK 48510-0K591

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-T2003iKUN2#,35201107-201512

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-T1001iKUN2#,35201107-201512

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-T2004iKUN2#,35201107-201512

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-0K600iKUN2#,35..DCB,SCB201108-201311

MARK 48510-0K600

sub48510-8Z029

main48510-8Z029iKUN2#,35..THDCB,THSCB,XTR201107-201407

MARK 48510-0K590

sub48510-8Z174

main48510-8Z174iKUN2#,35201407-201512

MARK 48510-0K591

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0K040iKUN2#,35201107-201512

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-T0050iKUN2#,35201107-201512

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-T0048iKUN2#,35201107-201512

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0K040iKUN2#,35201107-201512

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-T0048iKUN2#,35201107-201512

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-T0015iKUN2#,35201405-201512

(L)

main94188-01241iKUN2#,35201107-201405

main94188-01241iKUN2#,35201405-201512

(J)

48810LINK ASSY, FRONT STABILIZER, LH

main48810-0K010iKUN2#,35201107-201512

48811BAR, STABILIZER, FRONT

main48811-0K050iKUN2#,35..THDCB,THSCB,XTR201107-201504

main48811-0K100iKUN2#,35..DCB,SCB201108-201512

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0K010iKUN2#,35201107-201512

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0K030iKUN2#,35201107-201512

48824BRACKET, STABILIZER, FRONT

main48824-0K010iKUN2#,35201107-201512

90119T0242

main90119-T0242

90119T0245

main90119-T0245

90178T0041

main90178-T0041

22 parts on this diagram · 1 diagram in section
