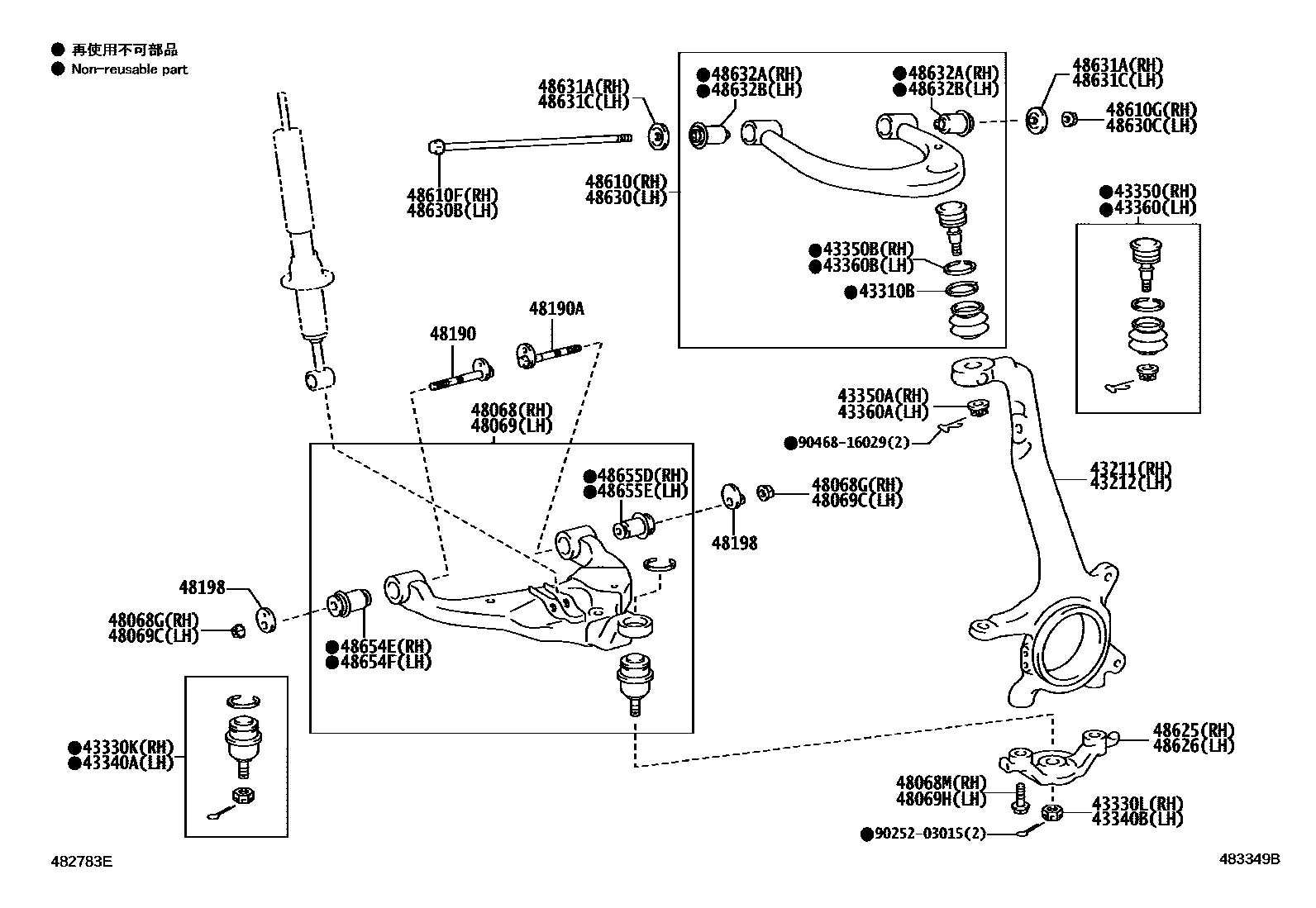

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
43212KNUCKLE, STEERING, LH
43310BRING, SET (FOR DUST COVER)
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
43350JOINT ASSY, FRONT UPPER BALL, RH
sub43310-09017
43350ANUT (FOR FRONT UPPER BALL JOINT RH)
43350BRING, SNAP (FOR FRONT UPPER BALL JOINT RH)
43360JOINT ASSY, FRONT UPPER BALL, LH
sub43310-09017
43360ANUT (FOR FRONT UPPER BALL JOINT LH)
43360BRING, SNAP (FOR FRONT UPPER BALL JOINT LH)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
(J)
(L)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
(J)
(L)
48190CAM ASSY, CAMBER ADJUST
48190ACAM ASSY, CAMBER ADJUST, NO.2
48198CAM, CAMBER ADJUST, NO.2
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)
48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)
48625ATTACHMENT, FRONT LOWER BALL JOINT, RH
48626ATTACHMENT, FRONT LOWER BALL JOINT, LH
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)
48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)
48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)
48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)
48632ABUSH, FRONT SUSPENSION UPPER ARM, RH
48632BBUSH, FRONT SUSPENSION UPPER ARM, LH
48654EBUSH, FRONT LOWER ARM, NO.1 RH
48654FBUSH, FRONT LOWER ARM, NO.1 LH
48655DBUSH, FRONT LOWER ARM, NO.2 RH
48655EBUSH, FRONT LOWER ARM, NO.2 LH
9025203015
main90252-03015
9046816029
main90468-16029
40 parts on this diagram · 1 diagram in section
