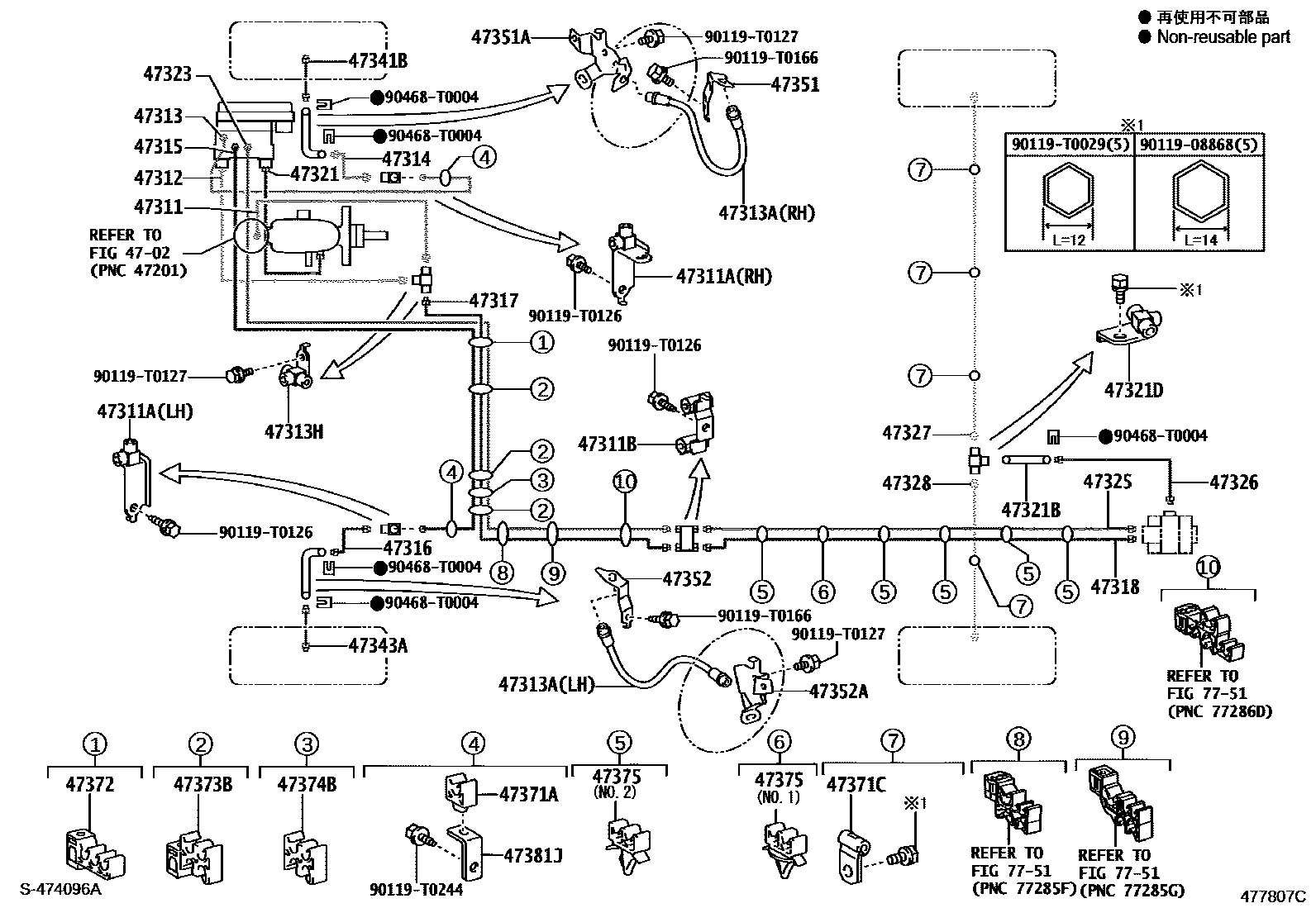

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1W(VSC) 0008 1W(VSC) 0013 1 0014 1W(VSC) 0015 1W(VSC) 0019 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-0K010iKUN26..RHD..SR;KUN25..RHD..(DCB,SCB)201107-201410

main47311-0K020iKUN26..RHD..SR;KUN25..RHD..(DCB,SCB)201108-201310

main47311-0K030iKUN2#,35..LHD..(THDCB,THSCB,XTR)201107-201410

main47311-0K041iKUN26..LHD..DCB..SR;KUN25,35..LHD..(DCB,SCB)201108-201310

main47311-0K150iKUN26..RHD..SR;KUN25..RHD..(DCB,SCB)201108-201512

main47311-0K160iKUN2#,35..LHD..(THDCB,THSCB,XTR)201108-201512

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10251iKUN2#,35201107-201512

RH

main90412-10252iKUN2#,35201107-201512

LH

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10253iKUN2#,35201107-201512

47312TUBE, FRONT BRAKE, NO.2

main47312-0K010iKUN26..RHD..SR;KUN25..RHD..(DCB,SCB)201107-201410

main47312-0K020iKUN26..RHD..SR;KUN25..RHD..(DCB,SCB)201108-201310

main47312-0K030iKUN26..LHD..DCB..SR;KUN25,35..LHD..(DCB,SCB)201107-201410

main47312-0K040iKUN26..LHD..DCB..SR;KUN25,35..LHD..(DCB,SCB)201108-201310

47313TUBE, FRONT BRAKE, NO.3

main47313-0K010iKUN25..RHD..XTR201107-201410

main47313-0K040iKUN26..LHD..DCB..SR;KUN25,35..LHD..(DCB,SCB)201107-201410

main47313-0K130iKUN26..RHD..DLX201108-201512

main47313-0K140iKUN2#,35..LHD..(THDCB,THSCB,XTR)201108-201512

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94029iKUN2#,35201107-201512

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90413-10309iKUN25..RHD..XTR201107-201410

main90413-10312iKUN26..LHD..DCB..SR;KUN25,35..LHD..(DCB,SCB)201107-201410

47314TUBE, FRONT BRAKE, NO.4

main47314-0K030iKUN2#,35201107-201512

47315TUBE, FRONT BRAKE, NO.5

main47315-0K010iKUN26..RHD..SR;KUN25..RHD..(DCB,SCB)201107-201410

main47315-0K040iKUN26..LHD..DCB..SR;KUN25,35..LHD..(DCB,SCB)201107-201410

main47315-0K140iKUN26..LHD..DLX201108-201512

main47315-0K150iKUN25..RHD..XTR201108-201512

47316TUBE, FRONT BRAKE, NO.6

main47316-0K030iKUN2#,35201107-201512

47317TUBE, FRONT BRAKE, NO.7

main47317-0K010iKUN26..RHD..SR;KUN25..RHD..(DCB,SCB)201107-201410

main47317-0K020iKUN2#,35..LHD..(THDCB,THSCB,XTR)201107-201410

main47317-0K030iKUN26..LHD..DCB..SR;KUN25,35..LHD..(DCB,SCB)201108-201310

main47317-0K050iKUN26..RHD..SR;KUN25..RHD..(DCB,SCB)201108-201310

47318TUBE, FRONT BRAKE, NO.8

main47318-0K020iKUN2#,35..THDCB,THSCB,XTR201107-201410

47321TUBE, REAR BRAKE, NO.1

main47321-0K010iKUN25..RHD..XTR201107-201410

main47321-0K020iKUN26..RHD..SR;KUN25..RHD..(DCB,SCB)201108-201310

main47321-0K030iKUN2#,35..LHD..(THDCB,THSCB,XTR)201107-201410

main47321-0K040iKUN26..LHD..DCB..SR;KUN25,35..LHD..(DCB,SCB)201108-201310

main47321-0K110iKUN26..RHD..DLX201108-201512

main47321-0K120iKUN2#,35..LHD..(THDCB,THSCB,XTR)201108-201512

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-T2015iKUN2#,35..THDCB,THSCB,XTR201107-201410

main90947-T2057iKUN26..DLX201108-201512

NO.1

main90947-T2058iKUN26..DLX201108-201512

NO.2

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90413-10308iKUN26..DCB..SR;KUN25,35..DCB,SCB201107-201410

47323TUBE, REAR BRAKE, NO.3

main47323-0K010iKUN25..RHD..XTR201107-201410

main47323-0K040iKUN2#,35..LHD..(THDCB,THSCB,XTR)201107-201410

main47323-0K130iKUN25..RHD..XTR201108-201512

main47323-0K140iKUN2#,35..LHD..(THDCB,THSCB,XTR)201108-201512

47325TUBE, REAR BRAKE, NO.5

main47325-0K020iKUN26..DCB..SR;KUN25,35..DCB,SCB201107-201410

main47325-0K120iKUN2#,35..THDCB,THSCB,XTR201108-201512

47326TUBE, REAR BRAKE, NO.6

main47326-0K010iKUN26..DLX201108-201512

main47329-0K021iKUN26..DCB..SR;KUN25,35..DCB,SCB201107-201410

47327TUBE, REAR BRAKE, NO.7

main47327-0K021iKUN26..DCB..SR;KUN25,35..DCB,SCB201107-201410

main47327-0K091iKUN26..DLX201108-201512

47328TUBE, REAR BRAKE, NO.8

main47328-0K021iKUN2#,35..THDCB,THSCB,XTR201107-201410

main47328-0K091iKUN26..DCB..SR;KUN25,35..DCB,SCB201108-201512

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-0K010iKUN26..DLX201107-201512

main47341-0K030iKUN25..FLD201108-201410

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-0K010iKUN26..DLX201107-201512

main47343-0K030iKUN26..DCB..SR;KUN25,35..DCB,SCB201108-201410

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-0K010iKUN2#,35201107-201512

47351ABRACKET, FLEXIBLE HOSE, FRONT RH NO.1

main47353-0K020iKUN2#,35201107-201512

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-0K030iKUN2#,35201107-201512

47352ABRACKET, FLEXIBLE HOSE, FRONT LH NO.1

main47354-0K020iKUN2#,35201107-201512

47371ACLAMP, BRAKE TUBE, NO.1

main90949-T1011iKUN2#,35..LHD201107-201512

47371CCLAMP, BRAKE TUBE, NO.7

main90461-T0001iKUN2#,35201107-201512

47372CLAMP, BRAKE TUBE, NO.2

main90949-T1014iKUN2#..RHD201107-201512

47373BCLAMP, BRAKE TUBE, NO.3

main90949-T1008iKUN2#..RHD201107-201512

main90949-T1012iKUN2#,35..LHD201107-201512

47374BCLAMP, BRAKE TUBE, NO.4

main90949-T1009iKUN2#..RHD201107-201512

47375CLAMP, BRAKE TUBE, NO.5

main90469-T0007iKUN2#,35201107-201512

NO.1

main90949-T1006iKUN2#,35201107-201512

NO.2

47381JBRACKET, BRAKE TUBE CLAMP, NO.2

main90949-T2001iKUN2#,35..LHD201107-201512

7751

9011908868

main90119-08868

90119T0029

main90119-T0029

90119T0126

main90119-T0126

90119T0127

main90119-T0127

90119T0166

main90119-T0166

90119T0244

main90119-T0244

90468T0004

main90468-T0004

42 parts on this diagram · 10 diagrams in section
