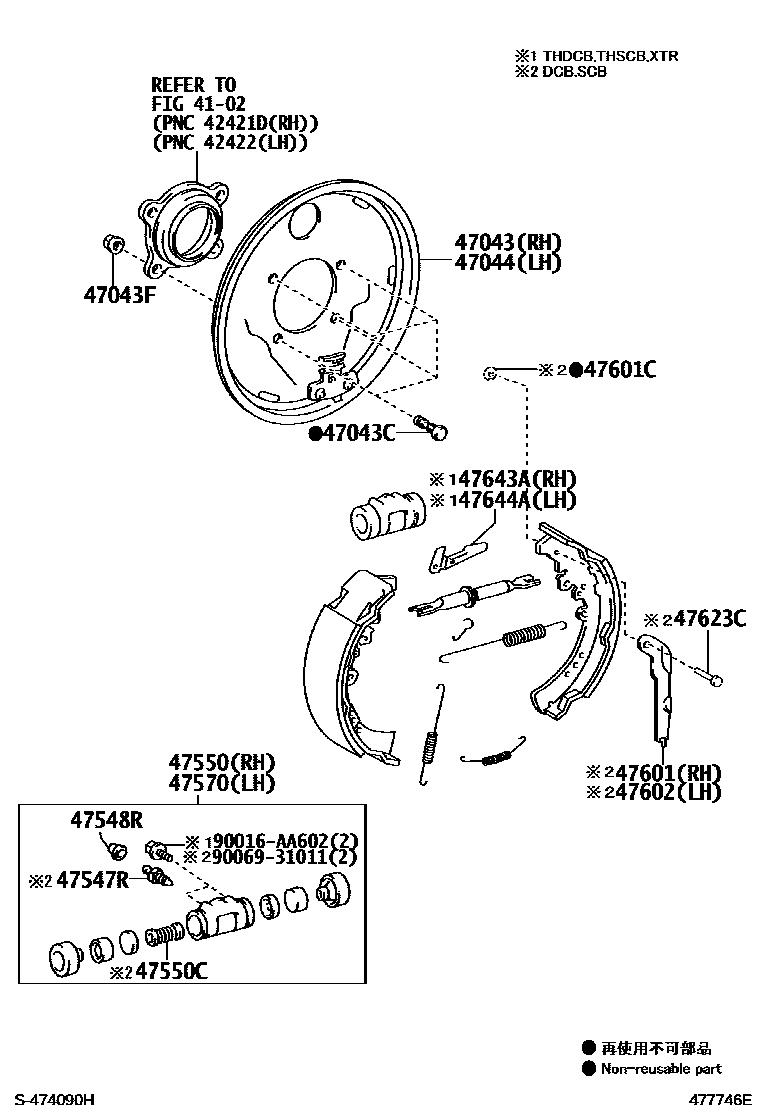

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

4102

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-0K050iKUN2#,35..THDCB,THSCB,XTR201107-201504

main47043-0K060iKUN2#,35..DCB,SCB201108-201512

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-T0006×8iKUN2#,35201107-201512

*10-1.25PX41-18

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90178-T0077×8iKUN2#,35201107-201512

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-0K050iKUN2#,35..THDCB,THSCB,XTR201107-201504

main47044-0K060iKUN2#,35..DCB,SCB201108-201512

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main90069-0K072×2iKUN2#,35..DCB,SCB201108-201512

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-0K010×2iKUN2#,35..THDCB,THSCB,XTR201107-201304

main31478-0K020×2iKUN2#,35..DCB,SCB201108-201512

main31478-0K030×2iKUN2#,35..THDCB,THSCB,XTR201305-201504

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-09070iKUN2#,35..THDCB,THSCB,XTR201107-201504

main47550-09090iKUN2#,35..DCB,SCB201108-201512

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90069-51002×2iKUN2#,35..DCB,SCB201108-201512

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-09070iKUN2#,35..THDCB,THSCB,XTR201107-201504

main47550-09090iKUN2#,35..DCB,SCB201108-201512

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-0K060iKUN2#,35..DCB,SCB201108-201512

47601CWASHER, C(FOR REAR BRAKE)

main90069-52023×2iKUN2#,35..DCB,SCB201108-201512

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47612-0K060iKUN2#,35..DCB,SCB201108-201512

47623CPIN, PARKING BRAKE LEVER

main90069-35000×2iKUN2#,35..DCB,SCB201108-201512

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-0K050iKUN2#,35..THDCB,THSCB,XTR201107-201504

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-0K050iKUN2#,35..THDCB,THSCB,XTR201107-201504

90016AA602

main90016-AA602

9006931011

main90069-31011

18 parts on this diagram · 2 diagrams in section
