FRONT DISC BRAKE CALIPER & DUST COVER

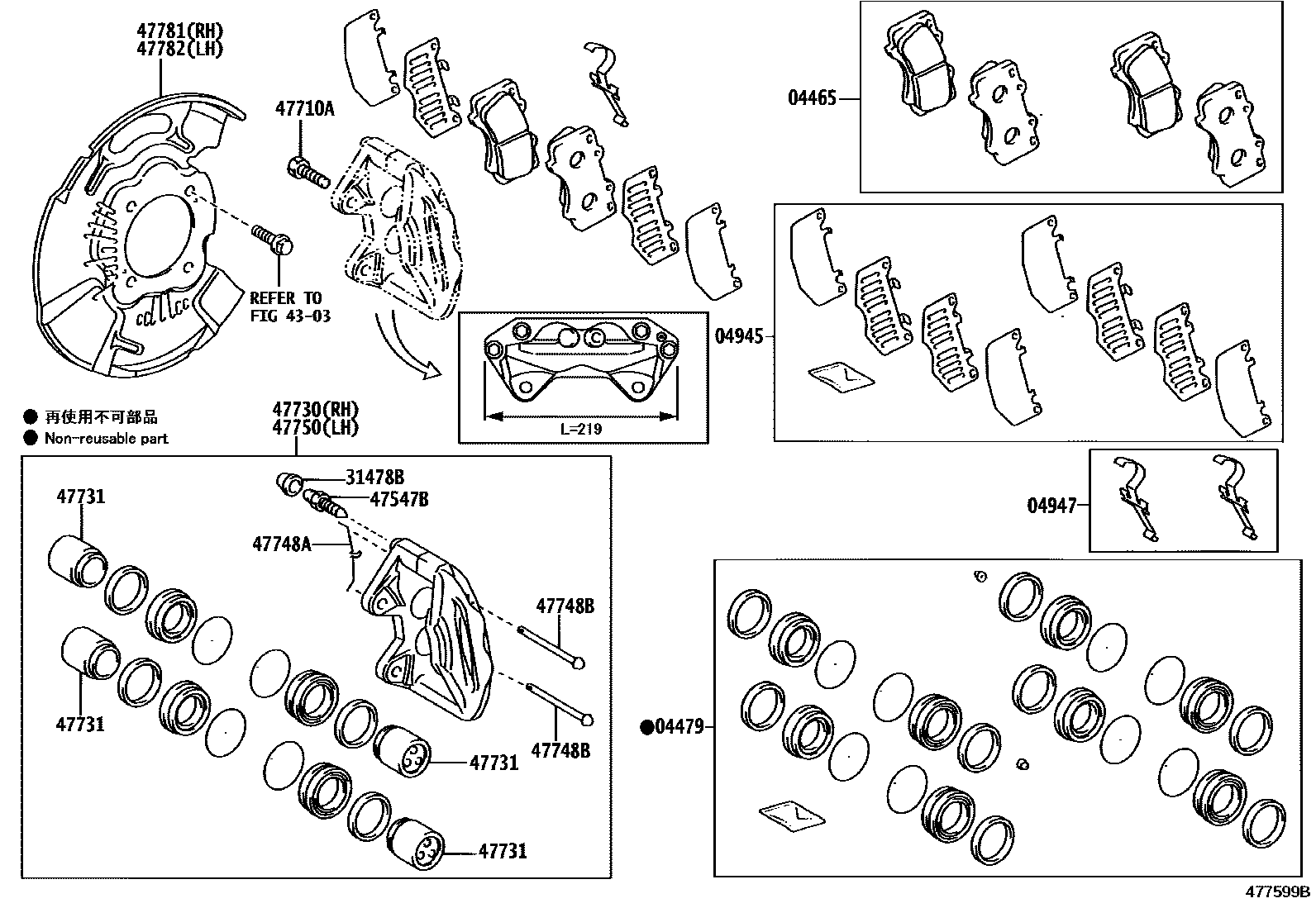

Parts diagram
04465PAD KIT, DISC BRAKE, FRONT
main04465-0K020i201107-201203
MARK ADVICS PS558H,TYPE A:REFER ILLUST.
main04465-0K090i201107-201408
MARK SUMITOMO PS558H,VSC-WITH,TYPE B:REFER ILLUST.
main04465-0K090i201408-201504
MARK SUMITOMO PS558H,TYPE B:REFER ILLUST.
main04465-0K240i201108-201310
MARK ADVICS PS558H,TYPE C:REFER ILLUST.
main04465-0K320i201111-201203
MARK ADVICS PS558H,TYPE D:REFER ILLUST.
sub04465-0K340
main04465-0K340i201203-201410
MARK ADVICS PS558H,TYPE D:REFER ILLUST.
main04465-0K340i201408-201512
MARK ADVICS PS558H,VSC-WITHOUT,TYPE D:REFER ILLUST.
main04465-35290i201108-201512
MARK SUMITOMO PS558H,TYPE B:REFER ILLUST.
main04465-35290i201108-201410
MARK SUMITOMO PS558H,VSC-WITH,TYPE B:REFER ILLUST.
04479CYLINDER KIT, DISC BRAKE, FRONT
main04478-0K110i201108-201310
TYPE C:REFER ILLUST.
main04478-0K130i201111-201410
TYPE D:REFER ILLUST.
main04478-0K130i201107-201203
TYPE A:REFER ILLUST.
main04478-0K130i201408-201505
VSC-WITHOUT,TYPE D:REFER ILLUST.
main04478-0K210i201505-201512
VSC-WITHOUT,TYPE D:REFER ILLUST.
main04478-60050i201107-201410
VSC-WITH,TYPE B:REFER ILLUST.
main04478-60050i201108-201512
TYPE B:REFER ILLUST.
04945SHIM KIT, ANTI SQUEAL, FRONT
main04945-0K150i201107-201203
TYPE A:REFER ILLUST.
main04945-0K210i201108-201310
TYPE C:REFER ILLUST.
main04945-0K220i201107-201408
VSC-WITH,TYPE B:REFER ILLUST.
main04945-0K220i201408-201504
TYPE B:REFER ILLUST.
main04945-0K240i201408-201512
VSC-WITHOUT,TYPE D:REFER ILLUST.
main04945-0K240i201111-201410
TYPE D:REFER ILLUST.
main04945-35120i201108-201410
VSC-WITH,TYPE B:REFER ILLUST.
main04945-35120i201108-201512
TYPE B:REFER ILLUST.
04947FITTING KIT, DISC BRAKE, FRONT
main04947-0K040i201408-201512
VSC-WITHOUT,TYPE D:REFER ILLUST.
main04947-0K040i201111-201410
TYPE D:REFER ILLUST.
main04947-0K070i201108-201310
TYPE C:REFER ILLUST.
main04947-35050i201108-201512
TYPE B:REFER ILLUST.
main04947-35050i201107-201410
VSC-WITH,TYPE B:REFER ILLUST.
main04947-60080i201107-201203
TYPE A:REFER ILLUST.
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
main31478-0K030i201108-201310
TYPE C:REFER ILLUST.
main31478-30010i201107-201410
VSC-WITH,TYPE B:REFER ILLUST.
main31478-30010i201111-201410
TYPE D:REFER ILLUST.
main31478-30010i201108-201512
TYPE B:REFER ILLUST.
main31478-30010i201408-201512
VSC-WITHOUT,TYPE D:REFER ILLUST.
main31478-30010i201107-201203
TYPE A:REFER ILLUST.
4303
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
main47547-20030i201408-201512
VSC-WITHOUT,TYPE D:REFER ILLUST.
main47547-20030i201111-201410
TYPE D:REFER ILLUST.
main47547-20030i201107-201203
TYPE A:REFER ILLUST.
main47547-27030i201107-201408
VSC-WITH,TYPE B:REFER ILLUST.
main47547-27030i201408-201504
TYPE B:REFER ILLUST.
main47547-35020i201108-201512
TYPE B:REFER ILLUST.
main47547-35020i201108-201410
VSC-WITH,TYPE B:REFER ILLUST.
main90069-0K072i201108-201310
TYPE C:REFER ILLUST.
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
main90105-12175i201107-201512
*12-1.25PX35-27
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
main47730-0K061i201107-201203
TYPE A:REFER ILLUST.
main47730-0K140i201107-201408
VSC-WITH,TYPE B:REFER ILLUST.
main47730-0K140i201408-201504
TYPE B:REFER ILLUST.
main47730-0K180i201108-201310
TYPE C:REFER ILLUST.
main47730-0K190i201111-201410
TYPE D:REFER ILLUST.
main47730-0K190i201408-201512
VSC-WITHOUT,TYPE D:REFER ILLUST.
main47730-71010i201108-201410
VSC-WITH,TYPE B:REFER ILLUST.
main47730-71010i201108-201512
TYPE B:REFER ILLUST.
47731PISTON, FRONT DISC BRAKE
main47731-0K060i201111-201410
TYPE D:REFER ILLUST.
main47731-0K060i201107-201203
TYPE A:REFER ILLUST.
main47731-0K060i201408-201512
VSC-WITHOUT,TYPE D:REFER ILLUST.
main47731-0K070i201108-201310
TYPE C:REFER ILLUST.
main47731-35040i201107-201403
VSC-WITH,TYPE B:REFER ILLUST.
main47731-35040i201108-201403
TYPE B:REFER ILLUST.
main47731-71010i201403-201512
TYPE B:REFER ILLUST.
main47731-71010i201403-201410
VSC-WITH,TYPE B:REFER ILLUST.
47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
main47748-0K190i201111-201410
TYPE D:REFER ILLUST.
main47748-0K190i201408-201512
VSC-WITHOUT,TYPE D:REFER ILLUST.
main47748-35010i201107-201408
VSC-WITH,TYPE B:REFER ILLUST.
main47748-35010i201408-201504
TYPE B:REFER ILLUST.
47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
main90069-49009i201108-201310
TYPE C:REFER ILLUST.
main90468-12015i201107-201203
TYPE A:REFER ILLUST.
47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
main90016-AE601i201505-201512
VSC-WITHOUT,TYPE D:REFER ILLUST.
main90069-0K071i201108-201310
TYPE C:REFER ILLUST.
main90240-06014i201408-201505
VSC-WITHOUT,TYPE D:REFER ILLUST.
main90240-06014i201111-201410
TYPE D:REFER ILLUST.
main90240-06014i201107-201203
TYPE A:REFER ILLUST.
main90240-06158i201107-201410
VSC-WITH,TYPE B:REFER ILLUST.
main90240-06158i201108-201512
TYPE B:REFER ILLUST.
47750CYLINDER ASSY, DISC BRAKE, LH
main47750-0K061i201107-201203
TYPE A:REFER ILLUST.
main47750-0K140i201408-201504
TYPE B:REFER ILLUST.
main47750-0K140i201107-201408
VSC-WITH,TYPE B:REFER ILLUST.
main47750-0K180i201108-201310
TYPE C:REFER ILLUST.
main47750-0K190i201111-201410
TYPE D:REFER ILLUST.
main47750-0K190i201408-201512
VSC-WITHOUT,TYPE D:REFER ILLUST.
main47750-71010i201108-201512
TYPE B:REFER ILLUST.
main47750-71010i201108-201410
VSC-WITH,TYPE B:REFER ILLUST.
47781COVER, DISC BRAKE DUST, FRONT RH
main47781-0K031i201107-201203
PNC 47730=TYPE A
main47781-0K050i201108
PNC 47730=TYPE B
main47781-0K050i201107-201410
VSC-WITH,PNC 47730=TYPE B
main47781-0K070i201408
VSC-WITHOUT,PNC 47730=TYPE D
main47781-0K070i201108-201408
PNC 47730=TYPE D
main47781-0K070i201108-201410
PNC47730=TYPE C OR D
47782COVER, DISC BRAKE DUST, FRONT LH
main47782-0K031i201107-201203
PNC 47750=TYPE A
main47782-0K050i201107-201410
VSC-WITH,PNC 47750=TYPE B
main47782-0K050i201108
PNC 47750=TYPE B
main47782-0K070i201108-201408
PNC 47750=TYPE D
main47782-0K070i201408
VSC-WITHOUT,PNC 47750=TYPE D
main47782-0K070i201108-201410
PNC47750=TYPE C OR D

16 parts on this diagram · 4 diagrams in section
