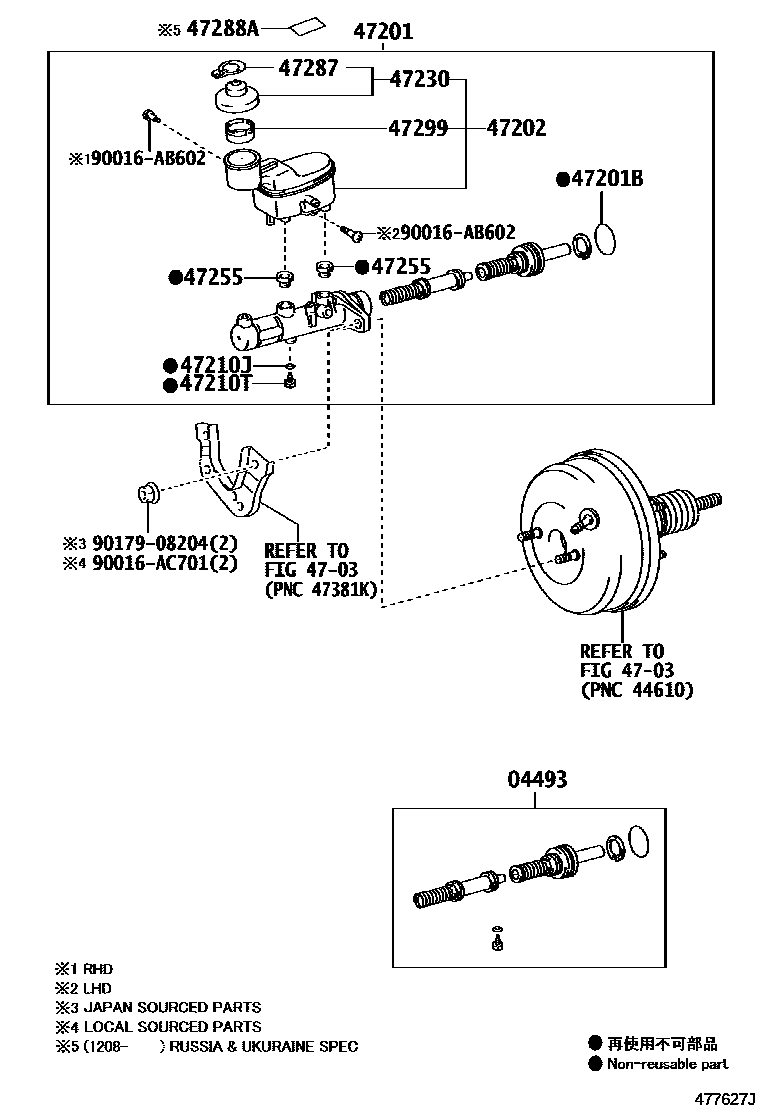

BRAKE MASTER CYLINDER

0001 1 0003 1W(VSC) 0004 1

04493CYLINDER KIT, BRAKE MASTER

main04493-0K010iKUN26..DCB..SR;KUN25,35..DCB,SCB201107-201410

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09200iKUN26..RHD..5FC..SR201108-201310

main47201-09210iKUN26..LHD..DCB..5F..SR;KUN25,35..LHD..(DCB,SCB)201108-201310

main47201-09230iKUN26..RHD..5F..SR;KUN25..RHD..(DCB,SCB)201108-201310

PNC 47381K=TYPE A

main47201-09240iKUN26..LHD..DCB..5FC..SR201108-201310

main47201-0K010iKUN26..RHD..5FC..SR201310-201410

main47201-0K020iKUN25..RHD..XTR201107-201410

PNC 47381K=TYPE B

main47201-0K030iKUN26..LHD..DCB..5FC..SR201107-201410

main47201-0K040iKUN26..LHD..DCB..5F..SR;KUN25,35..LHD..(DCB,SCB)201107-201410

main47201-0K140iKUN26..RHD..5FC..DLX201108-201202

VSC-WITH

sub47201-0K141

main47201-0K141iKUN26..RHD..5FC..DLX201203-201207

VSC-WITH

sub47201-0K142

main47201-0K142iKUN26..RHD..5FC..SR201208-201512

main47201-0K150iKUN26..RHD..5F..DLX201108-201202

VSC-WITH

sub47201-0K151

main47201-0K151iKUN26..RHD..5F..DLX201203-201207

VSC-WITH

sub47201-0K152

main47201-0K152iKUN26..RHD..5F..DLX201208-201512

main47201-0K160iKUN26..LHD..5FC..DLX201108-201202

sub47201-0K161

main47201-0K161iKUN26..LHD..5FC..DLX201203-201207

VSC-WITH

sub47201-0K162

main47201-0K162iKUN26..THDCB..5FC201208-201512

main47201-0K170iKUN26..LHD..5F..DLX201108-201202

sub47201-0K171

main47201-0K171iKUN25..LHD..(DCB,THDCB)..CBU;KUN26,35..LHD..(DCB,THDCB)..5F..SR201203-201207

VSC-WITH

sub47201-0K172

main47201-0K172iKUN26..LHD..DCB..5F..SR;KUN25,35..LHD..(DCB,SCB)201208-201512

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iKUN26..DLX201108-201512

main90016-AH901iKUN2#,35..THDCB,THSCB,XTR201107-201410

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09070iKUN26..DCB..5FC..SR201108-201310

main47220-09080iKUN25,35..DCB,SCB;KUN26..DCB..5F..SR201108-201310

main47220-0K010iKUN26..THDCB..5FC201107-201410

main47220-0K020iKUN2#,35..(THDCB,THSCB,XTR)..5F201107-201410

main47220-0K080iKUN26..DCB..5FC..SR201108-201512

main47220-0K090iKUN2#,35..(THDCB,THSCB,XTR)..5F201108-201512

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iKUN2#,35..THDCB,THSCB,XTR201107-201410

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iKUN2#,35..THDCB,THSCB,XTR201107-201410

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D221iKUN2#,35201508-201512

main47230-0K010iKUN2#,35201107-201502

main47230-0K011iKUN2#,35201502-201508

sub47230-0D221

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iKUN2#,35..THDCB,THSCB,XTR201107-201410

main90016-AT001iKUN2#,35..THDCB,THSCB,XTR201108-201512

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iKUN2#,35201508-201512

main47287-20010iKUN2#,35201107-201508

47288ALABEL, BRAKE FLUID NOTICE

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0K010iKUN2#,35201107-201512

90016AB602

main90016-AB602

90016AC701

main90016-AC701

9017908204

main90179-08204
