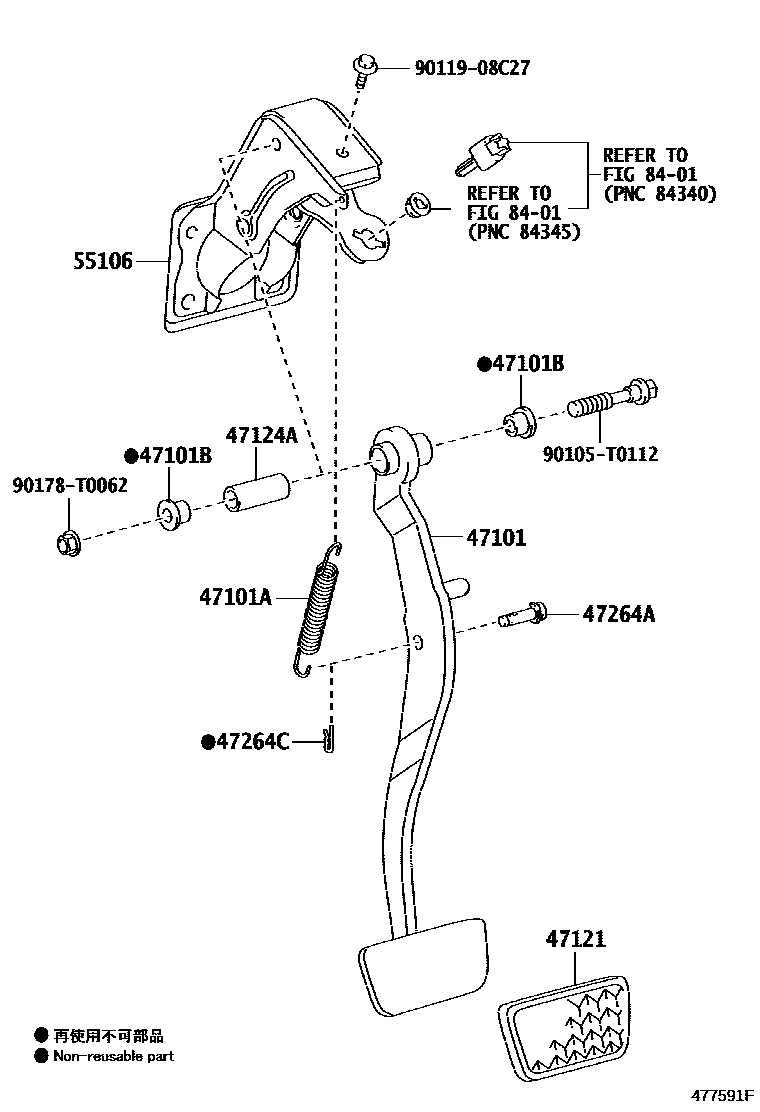

BRAKE PEDAL & BRACKET

0001 1W/O(VSC) 0002 1W(VSC)

47101PEDAL SUB-ASSY, BRAKE

main47101-0K010iKUN25..RHD..XTR201107-201408

main47101-0K020iKUN2#,35..LHD..(THDCB,THSCB,XTR)..5F201107-201212

main47101-0K040iKUN26..RHD..5F..SR;KUN25..RHD..(DCB,SCB)201108-201410

main47101-0K050iKUN26..LHD..DCB..5F..SR;KUN25,35..LHD..(DCB,SCB)201108-201410

main47101-0K070iKUN26..THDCB..5FC201107-201408

sub47101-0K350

main47101-0K100iKUN26..RHD..5FC..SR201108-201410

main47101-0K110iKUN26..LHD..DCB..5FC..SR201108-201410

main47101-0K140iKUN2#,35..LHD..(THDCB,THSCB,XTR)..5F201301-201408

sub47101-0K380

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-T0002iKUN2#,35201107-201512

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iKUN2#,35201107-201512

47121PAD, BRAKE PEDAL

main31321-52010iKUN2#,35..5F201107-201508

main31321-52020iKUN2#,35..5F201509-201512

main47121-52010iKUN26..5FC201107-201508

main47121-52020iKUN26..5FC201509-201512

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iKUN2#,35..THDCB,THSCB,XTR201107-201410

main90387-10121iKUN26..DLX201108-201512

47264APIN(FOR PUSH ROD)

main47148-35010iKUN2#,35..THDCB,THSCB,XTR201107-201410

main90240-06025iKUN26..DLX201108-201512

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90468-16012iKUN2#,35..THDCB,THSCB,XTR201107-201410

main90468-16142iKUN26..DLX201108-201512

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0K011iKUN2#,35..THDCB,THSCB,XTR201107-201410

main55106-71011iKUN26..DLX201108-201512

8401

90105T0112

main90105-T0112

9011908C27

main90119-08C27

90178T0062

main90178-T0062

12 parts on this diagram · 2 diagrams in section
