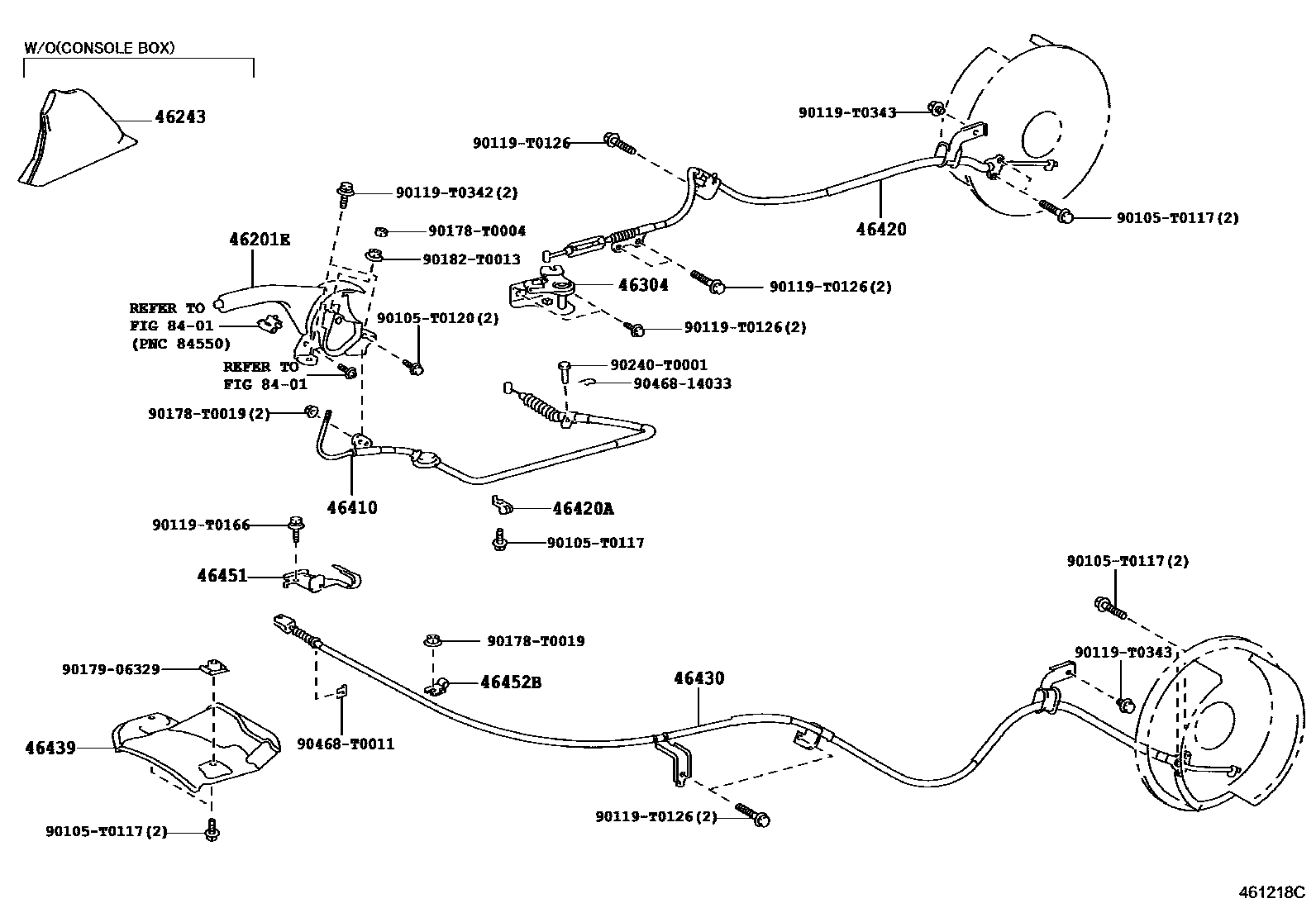

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K011-B1iKUN2#,35..THDCB,THSCB,XTR201107-201504

MD.GRAY,TRIM1#

main46201-0K011-C0iKUN2#,35..THDCB,THSCB,XTR201308-201504

BLACK,TRIM2#

main46201-0K040-B1iKUN2#,35..DCB,SCB201108-201512

MD.GRAY,TRIM1#

main46201-0K040-C0iKUN2#,35..DCB,SCB201310-201512

BLACK,TRIM2#

46243COVER, PARKING BRAKE LEVER

main46243-0K010-B1iKUN25..THSCB..CBU201107-201512

MD.GRAY,TRIM1#

main46243-0K010-C0iKUN25..THSCB..CBU201308-201512

BLACK,TRIM2#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K021iKUN2#,35..DCB,SCB201108-201512

main46304-0K030iKUN2#,35..THDCB,THSCB,XTR201107-201504

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K040iKUN2#,35201107-201302

sub46410-0K041

main46410-0K041iKUN2#,35201303-201512

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K101iKUN2#,35201107-201512

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01799iKUN2#,35201107-201512

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K091iKUN2#,35201107-201512

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K010iKUN2#,35201107-201512

46451BRACKET, CABLE SUPPORT

main46451-0K040iKUN2#,35201107-201512

46452BBRACKET, CABLE SUPPORT, NO.2

main46452-0K010iKUN2#,35201107-201512

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0342

main90119-T0342

90119T0343

main90119-T0343

90178T0004

main90178-T0004

90178T0019

main90178-T0019

9017906329

main90179-06329

90182T0013

main90182-T0013

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

24 parts on this diagram · 1 diagram in section
