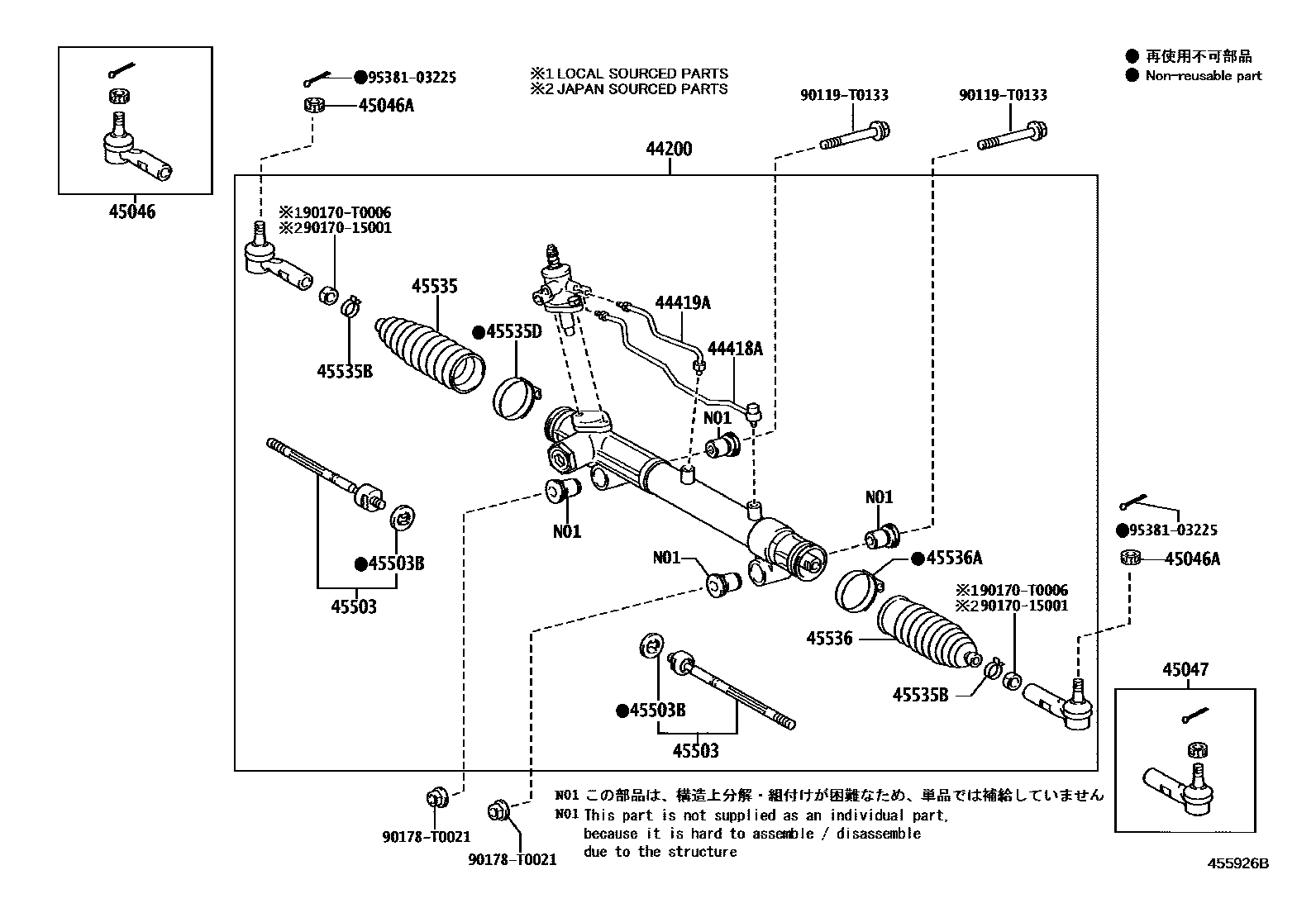

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

44200LINK ASSY, POWER STEERING

main44200-0K220iKUN25..RHD..XTR201107-201111

sub44200-0K380

main44200-0K230iKUN25..FLD201107-201112

sub44200-0K390

main44200-0K280iKUN2#..RHD..DCB..SR;KUN25..RHD..(DCB,SCB)..DLX201108-201111

sub44200-0K440

main44200-0K310iKUN26..RHD..SR;KUN25..RHD..DCB201108-201111

TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM

sub44200-0K470

main44200-0K320iKUN25..LHD..DCB..DLX..CBU201108-201111

TIRE & DISC WHEEL-265/65R17 7.5J

sub44200-0K480

main44200-0K340iKUN2#,35..LHD..DCB..SR;KUN25,35..LHD..(DCB,SCB)..DLX201108-201111

sub44200-0K500

main44200-0K380iKUN25..RHD..XTR201112-201303

sub44200-0K760

main44200-0K390iKUN25..DLX..FLD201112-201408

sub44200-0K890

main44200-0K440iKUN2#..RHD..DCB..SR;KUN25..RHD..(DCB,SCB)..DLX201112-201408

main44200-0K470iKUN25..RHD..XTR201112-201504

sub44200-0K880

main44200-0K480iKUN26..LHD..DLX;KUN25,35..LHD..SCB..SR201112-201112

TIRE & DISC WHEEL-265/65R17 7.5J

sub44200-0KA00

main44200-0K480iKUN26..LHD..DLX;KUN25,35..LHD..SCB..SR201112-201112

TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM

sub44200-0KA00

main44200-0K480iKUN25..DLX..FLD201308-201504

sub44200-0KA00

main44200-0K500iKUN2#,35..LHD..DCB..SR;KUN25,35..LHD..(DCB,SCB)..DLX201112-201408

main44200-0K550iKUN26..RHD..SR;KUN25..RHD..DCB201201-201203

TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM

sub44200-0K570

main44200-0K560iKUN25..LHD..DCB..CBU;KUN26,35..LHD..DCB..SR201201-201203

TIRE & DISC WHEEL-265/65R17 7.5J

sub44200-0K580

main44200-0K560iKUN26..LHD..DLX;KUN25,35..LHD..SCB..SR201201-201203

TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM

sub44200-0K580

main44200-0K570iKUN26..RHD..DLX;KUN25..RHD..SCB..SR201204-201512

main44200-0K580iKUN2#,35..LHD..DCB..SR;KUN25,35..LHD..(DCB,SCB)..DLX201204-201512

main44200-0K760iKUN25..RHD..XTR201303-201408

44418ATUBE, STEERING RIGHT TURN PRESSURE

main44418-0K140iKUN26..RHD..DLX;KUN25..RHD..SCB..SR201107-201504

main44418-0K150iKUN26..LHD..DLX;KUN25,35..LHD..SCB..SR201107-201504

main44418-0K170iKUN2#..RHD..DCB..SR;KUN25..RHD..(DCB,SCB)..DLX201108-201512

main44418-0K180iKUN26..LHD..DLX;KUN25,35..LHD..SCB..SR201108-201512

44419ATUBE, STEERING LEFT TURN PRESSURE

main44419-0K140iKUN25..RHD..XTR201107-201504

main44419-0K150iKUN2#,35..LHD..(THDCB,THSCB,XTR)201107-201504

main44419-0K170iKUN26..RHD..DLX;KUN25..RHD..SCB..SR201108-201512

main44419-0K180iKUN26..LHD..DLX;KUN25,35..LHD..SCB..SR201108-201512

45046END SUB-ASSY, TIE ROD, RH

main45046-09281iKUN2#,35201107-201512

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-T0002iKUN2#,35201107-201512

45047END SUB-ASSY, TIE ROD, LH

main45046-09281iKUN2#,35201107-201512

45503END SUB-ASSY, STEERING RACK

main45503-09321iKUN26..DLX;KUN25,35..SCB..SR201107-201504

main45503-09331iKUN2#,35..DCB..SR;KUN25,35..(DCB,SCB)..DLX201108-201512

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-T0001iKUN26..DLX;KUN25,35..SCB..SR201107-201504

OD=43

main90214-T0002iKUN2#,35..DCB..SR;KUN25,35..(DCB,SCB)..DLX201108-201512

OD=43

45535BOOT, STEERING RACK, NO.1

main45535-0K010iKUN2#,35201107-201512

45535BCLIP(FOR STEERING RACK BOOT)

main90466-T0004iKUN26..DLX;KUN25,35..SCB..SR201107-201504

main90466-T0005iKUN2#,35..DCB..SR;KUN25,35..(DCB,SCB)..DLX201108-201512

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-T0001iKUN2#,35201107-201512

45536BOOT, STEERING RACK, NO.2

main45536-0K010iKUN2#,35201107-201512

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-T0001iKUN2#,35201107-201512

90119T0133

main90119-T0133

9017015001

main90170-15001

90170T0006

main90170-T0006

90178T0021

main90178-T0021

9538103225

main95381-03225

18 parts on this diagram · 3 diagrams in section
