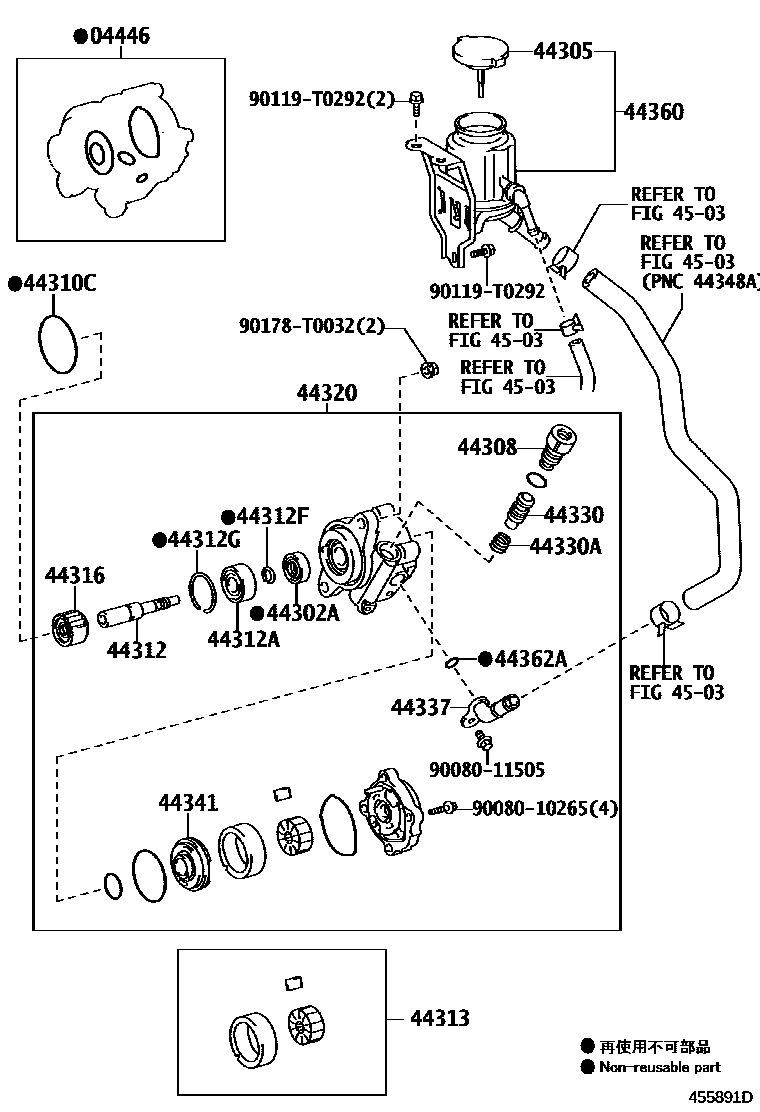

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-0K010iKUN2#,35201107-201512

44302ASEAL, OIL, NO.1(FOR VANE PUMP HOUSING)

main90316-T0001iKUN2#,35201107-201512

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-0K041iKUN2#,35201107-201207

sub44305-0K042

main44305-0K042iKUN2#,35201208-201512

44308UNION SUB-ASSY, PRESSURE PORT

main44308-0K050iKUN2#,35201107-201512

44310CRING, O(FOR VANE PUMP)

main90301-T0014iKUN2#,35201107-201512

44312SHAFT, VANE PUMP

main44312-0K010iKUN2#,35201107-201512

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-T0005iKUN2#,35201107-201512

44312FRING, SNAP, NO.1(FOR VANE PUMP SHAFT BEARING)

main90520-T0001iKUN2#,35201107-201512

44312GRING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING)

main90520-T0002iKUN2#,35201107-201512

44313ROTOR, VANE PUMP

main44313-09010iKUN2#,35201107-201512

44316GEAR, VANE PUMP

main44316-0K010iKUN2#,35201107-201512

44320PUMP ASSY, VANE

main44310-0K040iKUN2#,35201107-201512

44330VALVE ASSY, FLOW CONTROL

main44330-0K130iKUN2#,35201107-201512

MARK A

main44330-0K140iKUN2#,35201107-201512

MARK B

main44330-0K150iKUN2#,35201107-201512

MARK C

main44330-0K160iKUN2#,35201107-201512

MARK D

main44330-0K170iKUN2#,35201107-201512

MARK E

main44330-0K180iKUN2#,35201107-201512

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-T0001iKUN2#,35201107-201512

44337UNION, POWER STEERING SUCTION PORT

main44337-06060iKUN2#,35201107-201512

44341PLATE, VANE PUMP SIDE, FRONT

main44341-06010iKUN2#,35201107-201512

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-0K020iKUN2#,35201107-201207

sub44360-0K021

main44360-0K021iKUN2#,35201208-201512

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main90080-30093iKUN2#,35201107-201512

4503

9008010265

main90080-10265

9008011505

main90080-11505

90119T0292

main90119-T0292

90178T0032

main90178-T0032

23 parts on this diagram · 1 diagram in section
