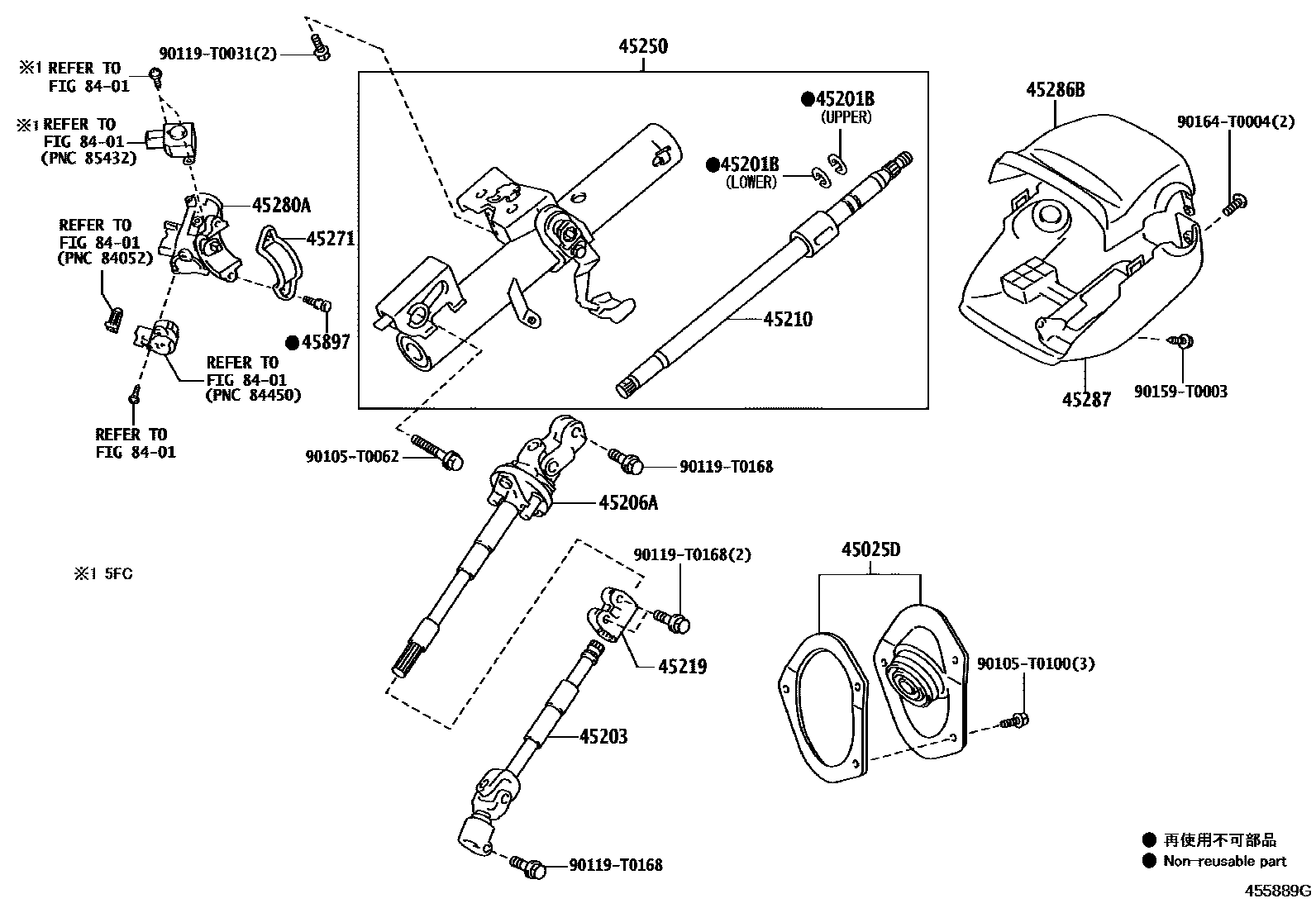

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,LOWER
T=1.20,UPPER
45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING
45210SHAFT ASSY, STEERING MAIN
45219YOKE, STEERING SLIDING
45250COLUMN ASSY, STEERING
45271CLAMP, STEERING COLUMN, UPPER
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
DK.GRAY,TRIM1#
BLACK,TRIM2#
45287COVER, STEERING COLUMN, LWR
45897BOLT, STEERING LOCK SET
8401
90105T0062
main90105-T0062
90105T0100
main90105-T0100
90119T0031
main90119-T0031
90119T0168
main90119-T0168
90159T0003
main90159-T0003
90164T0004
main90164-T0004
19 parts on this diagram · 1 diagram in section
