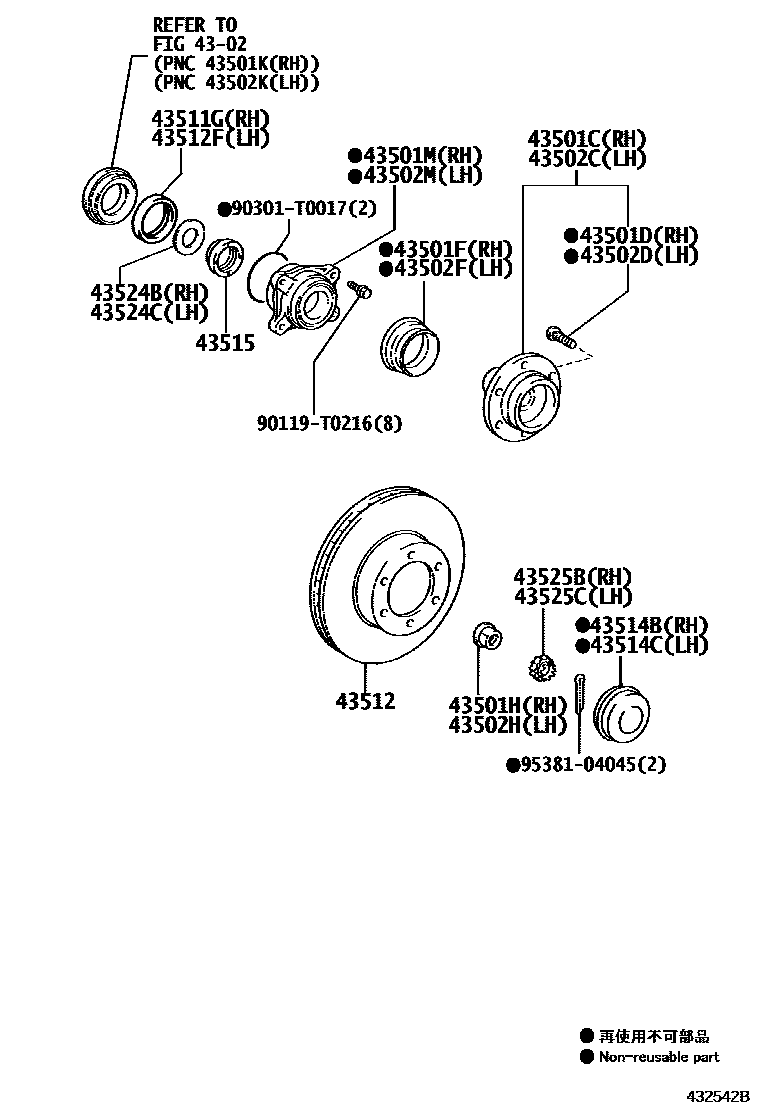

FRONT AXLE HUB
4302
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501DBOLT, HUB (FOR FRONT AXLE RH)
43501FSEAL, OIL (FOR FRONT AXLE HUB RH)
43501HNUT (FOR FRONT AXLE SHAFT RH)
(J)
(L)
43501MBEARING (FOR FRONT AXLE HUB INNER RH)
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502DBOLT, HUB (FOR FRONT AXLE LH)
43502FSEAL, OIL (FOR FRONT AXLE HUB LH)
43502HNUT (FOR FRONT AXLE SHAFT LH)
(J)
(L)
43502MBEARING (FOR FRONT AXLE HUB INNER LH)
43511GSEAL, OIL (FOR FRONT AXLE HUB OUTER RH)
43512FSEAL, OIL (FOR FRONT AXLE HUB OUTER LH)
43514BCAP, FRONT AXLE HUB GREASE, RH
43514CCAP, FRONT AXLE HUB GREASE, LH
43515ROTOR, SKID CONTROL, FRONT
43524BSPACER, FRONT WHEEL INNER BEARING, RH
43524CSPACER, FRONT WHEEL INNER BEARING, LH
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
90119T0216
main90119-T0216
90301T0017
main90301-T0017
9538104045
main95381-04045
24 parts on this diagram · 2 diagrams in section
