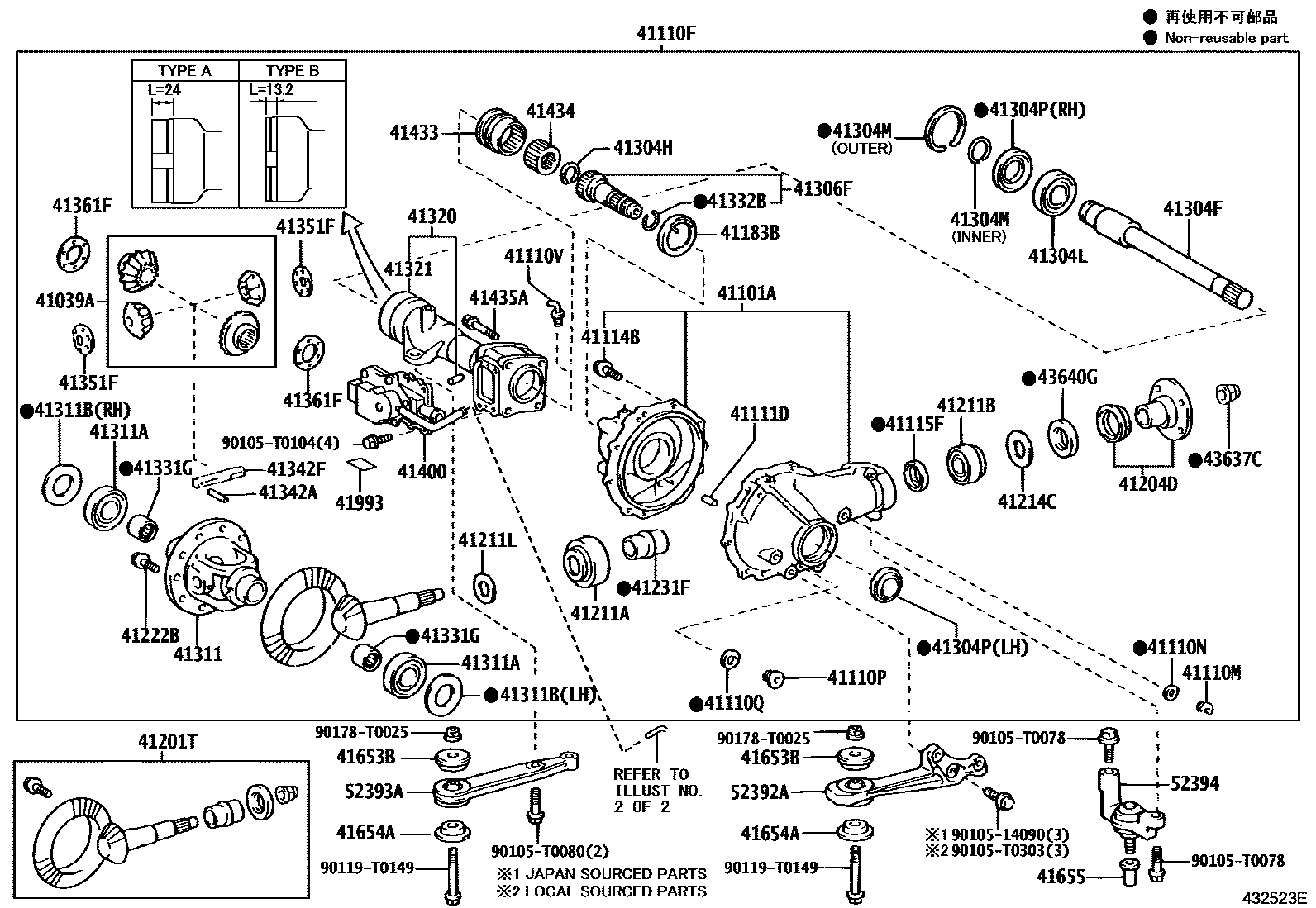

FRONT AXLE HOUSING & DIFFERENTIAL
41039AGEAR KIT, DIFFERENTIAL
TYPE A:REFER 43-02
PNC 41320=TYPE A
TYPE B:REFER 43-02
PNC 41320=TYPE B
PNC 41320=TYPE B
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
PNC 41320=TYPE A
PNC 41320=TYPE B
TYPE A:REFER 43-02
TYPE B:REFER 43-02
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
*FGR=41:11=3.727,PNC 41320=TYPE B
sub41110-0K363
*FGR=41:11=3.727,TYPE B:REFER 43-02
sub41110-71353
41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG
41110PPLUG, FRONT DIFFERENTIAL DRAIN
41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG
sub90430-24017
41110VUNION (FOR FRONT DIFFERENTIAL)
41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)
41114BBOLT, FRONT DIFFERENTIAL BEARING CAP
(J)
(L)
41115FRING, FRONT DIFFERENTIAL OIL STORAGE
41183BDEFLECTOR, FRONT DIFFERENTIAL SIDE BEARING RETAINER
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
*FGR=43:12=3.583
*FGR=43:12=3.583
*FGR=41:11=3.727
*FGR=41:11=3.727
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
OD=47,T=1.70,OD=47
OD=47,T=1.73,OD=47
OD=47,T=1.76,OD=47
OD=47,T=1.79,OD=47
OD=47,T=1.82,OD=47
OD=47,T=1.85,OD=47
OD=47,T=1.88,OD=47
OD=47,T=1.91,OD=47
OD=47,T=1.94,OD=47
OD=47,T=1.97,OD=47
OD=47,T=2.00,OD=47
OD=47,T=2.03,OD=47
OD=47,T=2.06,OD=47
OD=47,T=2.09,OD=47
OD=47,T=2.12,OD=47
OD=47,T=2.15,OD=47
OD=47,T=2.18,OD=47
OD=47,T=2.21,OD=47
OD=47,T=2.24,MARK 01,OD=47
OD=47,T=2.27,MARK 02,OD=47
OD=47,T=2.30,MARK 03,OD=47
OD=47,T=2.33,MARK 04,OD=47
OD=52,T=1.70,OD=52
OD=52,T=1.70
OD=52,T=1.73,OD=52
OD=52,T=1.73
OD=52,T=1.76
OD=52,T=1.76,OD=52
OD=52,T=1.79
OD=52,T=1.79,OD=52
OD=52,T=1.82
OD=52,T=1.82,OD=52
OD=52,T=1.85,OD=52
OD=52,T=1.85
OD=52,T=1.88,OD=52
OD=52,T=1.88
OD=52,T=1.91,OD=52
OD=52,T=1.91
OD=52,T=1.94,OD=52
OD=52,T=1.94
OD=52,T=1.97
OD=52,T=1.97,OD=52
OD=52,T=2.00,OD=52
OD=52,T=2.00
OD=52,T=2.03,OD=52
OD=52,T=2.03
OD=52,T=2.06,OD=52
OD=52,T=2.06
OD=52,T=2.09,OD=52
OD=52,T=2.09
OD=52,T=2.12,OD=52
OD=52,T=2.12
OD=52,T=2.15,OD=52
OD=52,T=2.15
OD=52,T=2.18
OD=52,T=2.18,OD=52
OD=52,T=2.21,OD=52
OD=52,T=2.21
OD=52,T=2.24,OD=52
OD=52,T=2.24
OD=52,T=2.27
OD=52,T=2.27,OD=52
OD=52,T=2.30
OD=52,T=2.30,OD=52
OD=52,T=2.33,OD=52
OD=52,T=2.33
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
(L)
(J)
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)
41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
INNER
OUTER
INNER
OUTER
41304PSEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT)
LH,TYPE B:REFER43-02
RH,TYPE B:REFER43-02
RH,PNC 41320=TYPE A
LH,PNC 41320=TYPE A
41311CASE, FRONT DIFFERENTIAL
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
T=1.60,LH
T=1.66,LH
T=1.72,LH
T=1.78,LH
T=1.84,LH
T=1.90,LH
T=1.96,LH
T=2.02,LH
T=2.08,LH
T=2.14,LH
T=1.60,RH
T=1.66,RH
T=1.72,RH
T=1.78,RH
T=1.84,RH
T=1.90,RH
T=1.96,RH
T=2.02,RH
T=2.08,RH
T=2.14,RH
T=1.58,LH
T=1.62,LH
T=1.64,LH
T=1.68,LH
T=1.70,LH
T=1.74,LH
T=1.76,LH
T=1.80,LH
T=1.82,LH
T=1.86,LH
T=1.88,LH
T=1.92,LH
T=1.94,LH
T=1.98,LH
T=2.00,LH
T=2.04,LH
T=2.06,LH
T=2.10,LH
T=2.12,LH
T=2.16,LH
T=1.58,RH
T=1.62,RH
T=1.64,RH
T=1.68,RH
T=1.70,RH
T=1.74,RH
T=1.76,RH
T=1.80,RH
T=1.82,RH
T=1.86,RH
T=1.88,RH
T=1.92,RH
T=1.94,RH
T=1.98,RH
T=2.00,RH
T=2.04,RH
T=2.06,RH
T=2.10,RH
T=2.12,RH
T=2.16,RH
T=1.44,RH
T=1.46,RH
T=1.48,RH
T=1.50,RH
T=1.52,RH
T=1.54,RH
T=1.56,RH
T=2.18,LH
T=2.20,LH
T=2.22,LH
T=2.24,LH
T=2.26,LH
T=2.28,LH
T=2.30,LH
41320TUBE ASSY, FRONT DIFFERENTIAL
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE A:REFER 43-02
TYPE B:REFER 43-02
41321TUBE, DIFFERENTIAL EXTENSION FLANGE
PNC 41320=TYPE A
PNC 41320=TYPE B
41331GBEARING, NEEDLE ROLLER(FOR FRONT DIFFERENTIAL SIDE GEAR)
41332BRING, HOLE SNAP (FOR DIFF SIDE GEAR INTERMEDDIATE SHAFT)
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
41433SLEEVE, DIFFERENTIAL CLUTCH
41434HUB, DIFFERENTIAL CLUTCH
41435ABOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING)
*12-1.25PX78-30
*12-1.25PX78-30
41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER
41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER
41655NUT, FRONT DIFFERENTIAL MOUNT, NO.1
41993LABEL, DIFFERENTIAL OIL INFORMATION
43637CNUT, CASTLE (FOR FRONT AXLE DRIVE PINION)
43640GSEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)
52392ASUPPORT, FRONT DIFFERENTIAL, NO.1
52393ASUPPORT, FRONT DIFFERENTIAL, NO.2
52394SUPPORT, FRONT DIFFERENTIAL, NO.3
9010514090
main90105-14090
90105T0078
main90105-T0078
90105T0080
main90105-T0080
90105T0104
main90105-T0104
90105T0303
main90105-T0303
90119T0149
main90119-T0149
90178T0025
main90178-T0025
57 parts on this diagram · 3 diagrams in section
