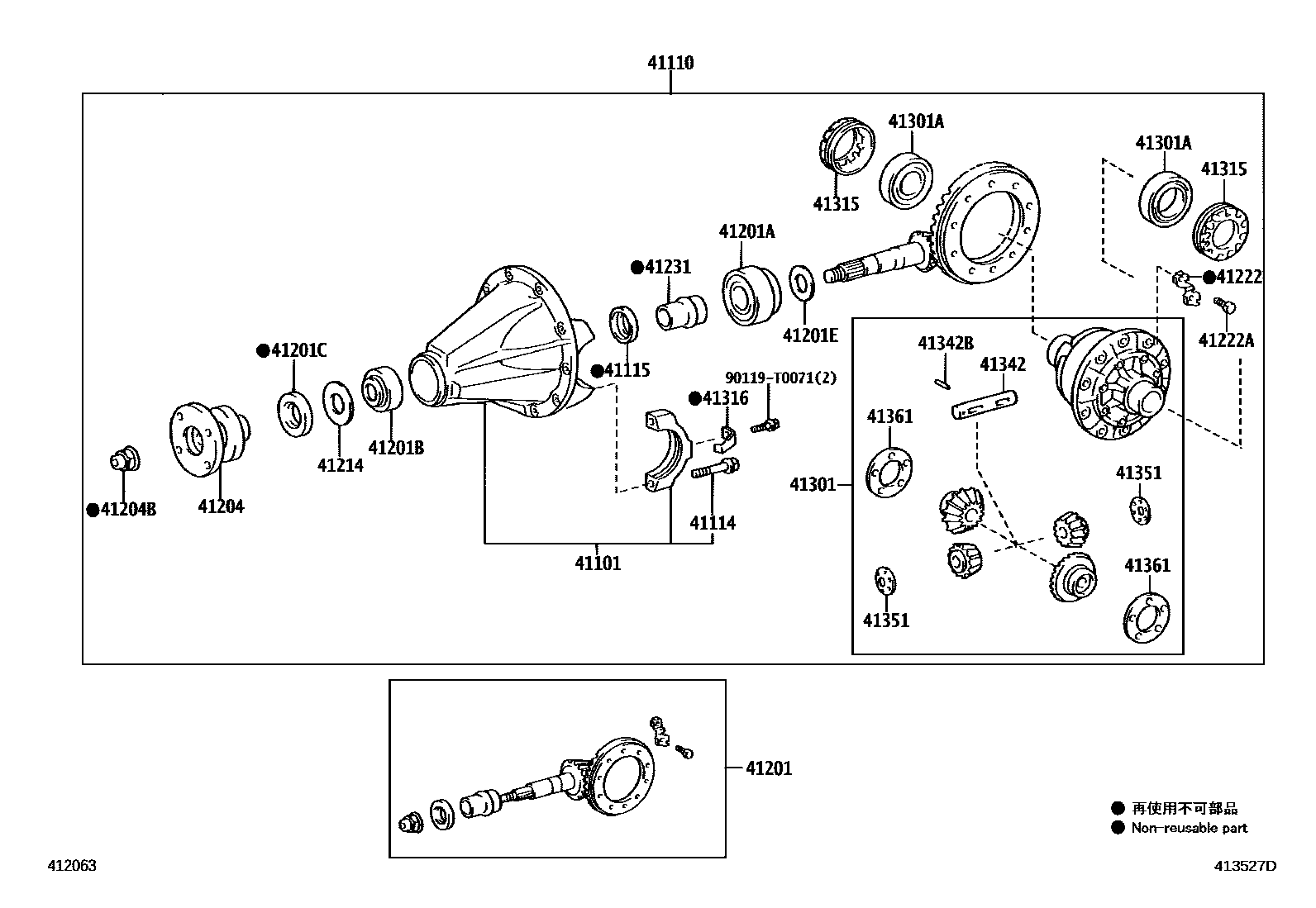

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0003 1 0006 1W(LSD) 0008 1W(LSD) 0009 1W(DIFFERENTIAL LOCK) 0013 1 0014 1MOROCCO SPEC,W(DIFFERENTIAL L

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-0K010iKUN25..RHD..XTR201107-201408

DIFFERENTIAL LOCK-WITH(LSD)

main41101-0K010iKUN2#,35..LHD..(THDCB,THSCB,XTR)..EUR201107-201412

main41101-0K011iKUN25..FLD201412-201504

DIFFERENTIAL LOCK-WITHOUT

main41101-0K040iKUN25..LHD..DCB..DLX..CBU201108-201512

main41101-35150iKUN25..FLD201408-201512

sub41101-35151

main41101-35150iKUN25..RHD..DLX201107-201512

DIFFERENTIAL LOCK-WITH

sub41101-35151

main41101-35171iKUN25..DCB..IV3;KUN35..(DCB,SCB)..IV3;KUN25..LHD..SCB..DLX..CBU201108-201410

DIFFERENTIAL LOCK-WITH(LSD)

sub41101-35172

main41101-35171iKUN25..LHD..DCB..DLX..CBU201108-201210

sub41101-35172

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-0K011iKUN26..THDCB..5F201107-201412

*FGR=43:12=3.583

sub41110-0K012

main41110-0K012iKUN26..THDCB..5F201412-201504

*FGR=43:12=3.583

sub41110-0KC40

main41110-0K021iKUN25..THDCB..SR201107-201412

*FGR=41:11=3.727

sub41110-0K022

main41110-0K022iKUN26..THDCB..5FC;KUN25,35..LHD..(THDCB,THSCB,XTR)..EUR201412-201504

*FGR=41:11=3.727,DIFFERENTIAL LOCK-WITHOUT

sub41110-0KC50

main41110-0K022iKUN25..FLD201412-201504

*FGR=41:11=3.727

sub41110-0KC50

main41110-0K071iKUN35..XTR;KUN25..XTR..SR;KUN25..(THDCB,THSCB)..IV3;KUN25..LHD..(THDCB,THSCB,XTR)..DLX..CBU201107-201408

*FGR=41:11=3.727

sub41110-0K072

main41110-0K071iKUN35..XTR;KUN25..XTR..SR;KUN25..(THDCB,THSCB)..IV3;KUN25..LHD..(THDCB,THSCB,XTR)..DLX..CBU201107-201408

*FGR=41:11=3.727,DIFFERENTIAL LOCK-WITH(LSD)

sub41110-0K072

main41110-0K450iKUN26..DCB..5F201108-201512

*FGR=43:12=3.583

main41110-0K500iKUN25..LHD..DCB..DLX..CBU201108-201512

*FGR=41:11=3.727

main41110-71360iKUN25..SCB..IV3;KUN35..SCB..CBU;KUN26..DCB..5FC..SR;KUN25..(DCB,SCB)..SR;KUN25..RHD..(DCB,SCB)..DLX201108-201410

*FGR=41:11=3.727,DIFFERENTIAL LOCK-WITH(LSD)

sub41110-71361

main41110-71360iKUN25..SCB..IV3;KUN35..SCB..CBU;KUN26..DCB..5FC..SR;KUN25..(DCB,SCB)..SR;KUN25..RHD..(DCB,SCB)..DLX201108-201410

*FGR=41:11=3.727

sub41110-71361

main41110-71370iKUN25..RHD..SR;KUN25..THSCB..CBU;KUN26..LHD..5FC..DLX;KUN35..XTR..DLX..CBU;KUN35..(DCB,THDCB)..CBU;KUN25..LHD..(DCB,SCB,THDCB,XTR)..EUR201107-201512

*FGR=41:11=3.727

sub41110-71371

main41110-71370iKUN25..RHD..DLX201107-201512

*FGR=41:11=3.727,DIFFERENTIAL LOCK-WITH

sub41110-71371

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90080-10301iKUN25..SCB..IV3;KUN25..(DCB,SCB)..SR;KUN26,35..(DCB,SCB)..CBU201108-201512

main90105-12053iKUN25..DCB..IV3;KUN35..(DCB,SCB)..IV3;KUN25..LHD..SCB..DLX..CBU201107-201512

DIFFERENTIAL LOCK-WITH

main90105-12053iKUN25..FLD201107-201512

main90105-T0081iKUN25..FLD201107-201408

DIFFERENTIAL LOCK-WITH(LSD)

main90105-T0081iKUN2#,35..LHD..(THDCB,THSCB,XTR)..EUR201107-201504

41115RING, DIFFERENTIAL OIL STORAGE

main41115-0K010iKUN2#,35..LHD..(THDCB,THSCB,XTR)..EUR201107-201504

main41115-0K010iKUN25..FLD201107-201408

DIFFERENTIAL LOCK-WITH(LSD)

main41115-35010iKUN25..FLD201107-201512

main41115-35010iKUN25..DCB..IV3;KUN35..(DCB,SCB)..IV3;KUN25..LHD..SCB..DLX..CBU201107-201512

DIFFERENTIAL LOCK-WITH

main90080-20103iKUN25..DCB..IV3;KUN35..(DCB,SCB)..IV3;KUN25..LHD..SCB..DLX..CBU201108-201512

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-09620iKUN26..DCB..5F201110-201207

*FGR=43:12=3.583

sub41201-80765

main41201-09B30iKUN25..SCB..IV3;KUN35..DCB..CBU;KUN26..LHD..5FC..DLX;KUN25..THDCB..DLX..CBU;KUN25..(DCB,SCB,THDCB)..SR201107-201412

*FGR=41:11=3.727

sub41201-09B31

main41201-09B30iKUN25..RHD..DLX;KUN26..THDCB..5FC;KUN25,35..LHD..(THDCB,THSCB,XTR)201107-201412

*FGR=41:11=3.727,DIFFERENTIAL LOCK-WITH

sub41201-09B31

main41201-09B50iKUN26..THDCB..5F201107-201412

*FGR=43:12=3.583

sub41201-09D80

main41201-09D40iKUN26..THDCB..5F201412-201501

*FGR=43:12=3.583

sub41201-09D90

main41201-09D50iKUN35..DCB..CBU201412-201512

*FGR=41:11=3.727,DIFFERENTIAL LOCK-WITH(LSD)

sub41201-09E00

main41201-09D50iKUN25..RHD..DLX;KUN26..THDCB..5FC;KUN25,35..LHD..(THDCB,THSCB,XTR)201412-201512

*FGR=41:11=3.727

sub41201-09E00

main41201-09D50iKUN25..RHD..DLX;KUN26..THDCB..5FC;KUN25,35..LHD..(THDCB,THSCB,XTR)201412-201512

*FGR=41:11=3.727,TURKEY SPEC&DIFFERENTIAL LOCK-WITH(LSD)

sub41201-09E00

main41201-09D50iKUN25..RHD..DLX;KUN26..THDCB..5FC;KUN25,35..LHD..(THDCB,THSCB,XTR)201412-201512

*FGR=41:11=3.727,DIFFERENTIAL LOCK-WITH

sub41201-09E00

main41201-09D90iKUN26..THDCB..5F201501-201504

*FGR=43:12=3.583

main41201-80765iKUN26..DCB..5F201207-201512

*FGR=43:12=3.583

main41201-80766iKUN25..SCB..IV3;KUN26..DCB..5FC;KUN25..(DCB,SCB)..SR;KUN35..(DCB,SCB)..CBU201108-201512

*FGR=41:11=3.727

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90080-36216iKUN25..DCB..IV3;KUN35..(DCB,SCB)..IV3;KUN25..LHD..SCB..DLX..CBU201108-201512

main90366-35087iKUN25..RHD..DLX201107-201512

DIFFERENTIAL LOCK-WITH

main90366-35087iKUN25..FLD201107-201512

main90366-T0016iKUN25..RHD..XTR201107-201408

DIFFERENTIAL LOCK-WITH(LSD)

main90366-T0016iKUN2#,35..LHD..(THDCB,THSCB,XTR)..EUR201107-201504

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90080-36214iKUN25..DCB..IV3;KUN35..(DCB,SCB)..IV3;KUN25..LHD..SCB..DLX..CBU201108-201512

main90366-30067iKUN25..SR;KUN26..DLX;KUN35..CBU;KUN35..XTR..IV3;KUN25..(SCB,THDCB,XTR)..IV3;KUN25..LHD..(THDCB,THSCB,XTR)..DLX..CBU201107-201203

DIFFERENTIAL LOCK-WITH

main90366-30105iKUN25..DCB..IV3;KUN35..(DCB,SCB)..IV3;KUN25..LHD..SCB..DLX..CBU201203-201512

DIFFERENTIAL LOCK-WITH

main90366-30105iKUN25..DCB..IV3;KUN35..(DCB,SCB)..IV3;KUN25..LHD..SCB..DLX..CBU201203-201512

DIFFERENTIAL LOCK-WITH(LSD)

main90366-30105iKUN25..FLD201203-201512

main90366-30105iKUN25..RHD..DLX201203-201512

RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)

main90366-T0013iKUN2#,35..LHD..(THDCB,THSCB,XTR)201107-201203

DIFFERENTIAL LOCK-WITH(LSD)

main90366-T0057iKUN25..RHD..XTR201203-201408

DIFFERENTIAL LOCK-WITH(LSD)

main90366-T0057iKUN2#,35..LHD..(THDCB,THSCB,XTR)..EUR201203-201504

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90080-31110iKUN25..DCB..IV3;KUN35..(DCB,SCB)..IV3;KUN25..LHD..SCB..DLX..CBU201108-201512

main90311-41014iKUN25..SR..EUR;KUN26..5F..DLX;KUN26..LHD..5FC..DLX;KUN35..XTR..DLX..CBU;KUN35..(DCB,THDCB)..CBU;KUN25..(SCB,THDCB,XTR)..IV3;KUN25..LHD..(THDCB,THSCB,XTR)..DLX..CBU.201107-201512

DIFFERENTIAL LOCK-WITH

main90311-41014iKUN25..FLD201107-201512

main90311-T0034iKUN25..RHD..XTR201107-201408

DIFFERENTIAL LOCK-WITH(LSD)

main90311-T0034iKUN2#,35..LHD..(THDCB,THSCB,XTR)..EUR201107-201412

main90311-T0068iKUN25..FLD201412-201504

DIFFERENTIAL LOCK-WITHOUT

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90564-35109iKUN25..FLD201107-201504

OD=52,T=1.70

main90564-35109iKUN25..FLD201107-201408

OD=52,T=1.70,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35110iKUN25..FLD201107-201408

OD=52,T=1.73,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35110iKUN25..RHD..XTR201107-201504

OD=52,T=1.73

main90564-35111iKUN25..RHD..XTR201107-201504

OD=52,T=1.76

main90564-35111iKUN25..RHD..XTR201107-201408

OD=52,T=1.76,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35112iKUN25..RHD..XTR201107-201504

OD=52,T=1.79

main90564-35112iKUN25..RHD..XTR201107-201408

OD=52,T=1.79,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35113iKUN2#,35..LHD..(THDCB,THSCB,XTR)..EUR201107-201504

OD=52,T=1.82

main90564-35113iKUN25..FLD201107-201408

OD=52,T=1.82,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35114iKUN25..FLD201107-201504

OD=52,T=1.85

main90564-35114iKUN25..FLD201107-201408

OD=52,T=1.85,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35115iKUN25..FLD201107-201408

OD=52,T=1.88,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35115iKUN25..RHD..XTR201107-201504

OD=52,T=1.88

main90564-35116iKUN25..FLD201107-201504

OD=52,T=1.91

main90564-35116iKUN25..FLD201107-201408

OD=52,T=1.91,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35117iKUN2#,35..LHD..(THDCB,THSCB,XTR)..EUR201107-201504

OD=52,T=1.94

main90564-35117iKUN25..FLD201107-201408

OD=52,T=1.94,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35118iKUN25..FLD201107-201504

OD=52,T=1.97

main90564-35118iKUN25..FLD201107-201408

OD=52,T=1.97,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35119iKUN2#,35..LHD..(THDCB,THSCB,XTR)..EUR201107-201504

OD=52,T=2.00

main90564-35119iKUN25..RHD..XTR201107-201408

OD=52,T=2.00,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35120iKUN25..FLD201107-201504

OD=52,T=2.03

main90564-35120iKUN25..RHD..XTR201107-201408

OD=52,T=2.03,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35121iKUN25..FLD201107-201504

OD=52,T=2.06

main90564-35121iKUN25..RHD..XTR201107-201408

OD=52,T=2.06,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35123iKUN25..FLD201107-201504

OD=52,T=2.09

main90564-35123iKUN25..RHD..XTR201107-201408

OD=52,T=2.09,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35124iKUN2#,35..LHD..(THDCB,THSCB,XTR)..EUR201107-201504

OD=52,T=2.12

main90564-35124iKUN25..RHD..XTR201107-201408

OD=52,T=2.12,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35125iKUN25..RHD..XTR201107-201504

OD=52,T=2.15

main90564-35125iKUN25..FLD201107-201408

OD=52,T=2.15,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35126iKUN25..RHD..XTR201107-201408

OD=52,T=2.18,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35126iKUN25..RHD..XTR201107-201504

OD=52,T=2.18

main90564-35127iKUN25..FLD201107-201504

OD=52,T=2.21

main90564-35127iKUN25..RHD..XTR201107-201408

OD=52,T=2.21,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35128iKUN25..FLD201107-201504

OD=52,T=2.24

main90564-35128iKUN25..RHD..XTR201107-201408

OD=52,T=2.24,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35129iKUN25..RHD..XTR201107-201408

OD=52,T=2.27,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35129iKUN25..RHD..XTR201107-201504

OD=52,T=2.27

main90564-35130iKUN2#,35..LHD..(THDCB,THSCB,XTR)..EUR201107-201504

OD=52,T=2.30

main90564-35130iKUN25..FLD201107-201408

OD=52,T=2.30,DIFFERENTIAL LOCK-WITH(LSD)

main90564-35131iKUN25..RHD..XTR201107-201504

OD=52,T=2.33

main90564-35131iKUN25..FLD201107-201408

OD=52,T=2.33,DIFFERENTIAL LOCK-WITH(LSD)

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-0K050iKUN25..DCB..IV3;KUN35..(DCB,SCB)..IV3;KUN25..LHD..SCB..DLX..CBU201108-201512

main41204-0K060iKUN25..RHD..XTR201107-201208

DIFFERENTIAL LOCK-WITH(LSD),(L)

main41204-0K060iKUN2#,35..LHD..(THDCB,THSCB,XTR)201107-201208

(L)

main41204-0K060iKUN25..FLD201208-201408

DIFFERENTIAL LOCK-WITH(LSD)

main41204-0K060iKUN2#,35..LHD..(THDCB,THSCB,XTR)..EUR201208-201412

main41204-0K100iKUN2#,35..LHD..(THDCB,THSCB,XTR)..EUR201412-201504

DIFFERENTIAL LOCK-WITHOUT

main41204-71020iKUN25..SCB..IV3;KUN35..SCB..CBU;KUN2#..(DCB,SCB)..SR;KUN25..RHD..(DCB,SCB)..DLX201108-201410

DIFFERENTIAL LOCK-WITH(LSD)

main41204-71020iKUN2#,35..LHD..(THDCB,THSCB,XTR)201107-201208

(J)

main41204-71020iKUN25..RHD..XTR201107-201208

DIFFERENTIAL LOCK-WITH(LSD),(J)

main41204-71020iKUN25..LHD..DCB..DLX..CBU201108-201512

main41204-71020iKUN25..RHD..DLX201107-201512

DIFFERENTIAL LOCK-WITH

41204BNUT (FOR REAR DRIVE PINION)

main90080-17204iKUN25..DCB..IV3;KUN35..(DCB,SCB)..IV3;KUN25..LHD..SCB..DLX..CBU201108-201512

OD=40.2

main90177-22003iKUN25..LHD..DCB..DLX..CBU201107-201512

OD=39.5

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-0K030iKUN25..SCB..IV3;KUN25..(DCB,SCB)..SR;KUN26,35..(DCB,SCB)..CBU201108-201512

main41214-26011iKUN25..LHD..DCB..DLX..CBU201107-201512

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-0K010iKUN2#,35..LHD..(THDCB,THSCB,XTR)..EUR201107-201504

main41222-0K010iKUN25..RHD..XTR201107-201408

DIFFERENTIAL LOCK-WITH(LSD)

main41222-35020iKUN25..SCB..IV3;KUN35..SCB..CBU;KUN2#..(DCB,SCB)..SR;KUN25..RHD..(DCB,SCB)..DLX201108-201410

DIFFERENTIAL LOCK-WITH(LSD)

main41222-35020iKUN25..LHD..DCB..DLX..CBU201108-201210

main41222-60010iKUN25..RHD..SR;KUN26..5F..DLX;KUN25..THSCB..CBU;KUN26..LHD..5FC..DLX;KUN35..XTR..DLX..CBU;KUN35..(DCB,THDCB)..CBU;KUN25..LHD..(DCB,SCB,THDCB,XTR)..EUR201107-201512

DIFFERENTIAL LOCK-WITH

main41222-60010iKUN25..FLD201408-201512

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90080-10292iKUN25..DCB..IV3;KUN35..(DCB,SCB)..IV3;KUN25..LHD..SCB..DLX..CBU201108-201512

main90101-11353iKUN25..FLD;KUN35..THSCB;KUN35..XTR..SR;KUN35..XTR..IV3201406-201504

(J)

main90101-11353iKUN25..FLD;KUN35..THSCB;KUN35..XTR..SR;KUN35..XTR..IV3201406-201408

DIFFERENTIAL LOCK-WITH

main90101-11353iKUN25..FLD;KUN35..THSCB;KUN35..XTR..SR;KUN35..XTR..IV3201406-201408

DIFFERENTIAL LOCK-WITH(LSD),(J)

main90101-11353iKUN25..LHD..DCB..DLX..CBU201107-201512

main90101-T0006iKUN25..RHD..XTR201406-201408

DIFFERENTIAL LOCK-WITH(LSD),(L)

main90101-T0006iKUN25..FLD201406-201504

(L)

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-0K010iKUN25..LHD..DCB..DLX..CBU201108-201512

main41231-24010iKUN25..RHD..DLX;KUN2#,35..LHD..(THDCB,THSCB,XTR)201107-201512

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-0K011iKUN25..THDCB..SR201107-201504

main41301-0K011iKUN26..THDCB..5F201412-201504

MOROCCO SPEC

main41301-0K090iKUN25..LHD..DCB..DLX..CBU201108-201512

main41301-60060iKUN25..RHD..DLX201107-201512

DIFFERENTIAL LOCK-WITH

sub41301-60061

main41301-60060iKUN25..FLD201408-201512

sub41301-60061

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90080-36215iKUN25..SCB..IV3;KUN25..(DCB,SCB)..SR;KUN26,35..(DCB,SCB)..CBU201108-201512

main90366-50007iKUN25..LHD..DCB..DLX..CBU201108-201210

main90366-50007iKUN25..DCB..IV3;KUN35..(DCB,SCB)..IV3;KUN25..LHD..SCB..DLX..CBU201108-201410

DIFFERENTIAL LOCK-WITH(LSD)

main90366-50007iKUN25..RHD..DLX201107-201512

RH

main90366-50007iKUN25..RHD..DLX201107-201512

DIFFERENTIAL LOCK-WITH,RH

main90366-75001iKUN25..RHD..DLX201107-201512

LH

main90366-75001iKUN25..RHD..DLX201107-201512

DIFFERENTIAL LOCK-WITH,LH

main90366-T0010iKUN25..THDCB..SR201107-201504

main90366-T0019iKUN35..XTR;KUN25..XTR..SR;KUN25..(THDCB,THSCB)..IV3;KUN25..LHD..(THDCB,THSCB,XTR)..DLX..CBU201107-201408

DIFFERENTIAL LOCK-WITH(LSD)

main90366-T0019iKUN25..THDCB..SR201208-201408

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-0K010iKUN2#,35..LHD..(THDCB,THSCB,XTR)..EUR201107-201504

main41315-0K010iKUN25..FLD201107-201408

DIFFERENTIAL LOCK-WITH(LSD)

main41315-35020iKUN25..RHD..SR;KUN26..5F..DLX;KUN25..THSCB..CBU;KUN26..LHD..5FC..DLX;KUN35..XTR..DLX..CBU;KUN35..(DCB,THDCB)..CBU;KUN25..LHD..(DCB,SCB,THDCB,XTR)..EUR201107-201512

DIFFERENTIAL LOCK-WITH,RH

main41315-35020iKUN25..RHD..SR;KUN26..5F..DLX;KUN25..THSCB..CBU;KUN26..LHD..5FC..DLX;KUN35..XTR..DLX..CBU;KUN35..(DCB,THDCB)..CBU;KUN25..LHD..(DCB,SCB,THDCB,XTR)..EUR201107-201512

RH

main41315-35020iKUN25..LHD..DCB..DLX..CBU201108-201210

main41315-35020iKUN25..DCB..IV3;KUN35..(DCB,SCB)..IV3;KUN25..LHD..SCB..DLX..CBU201108-201410

DIFFERENTIAL LOCK-WITH(LSD)

main41315-60010iKUN25..RHD..DLX201107-201512

LH

main41315-60010iKUN25..RHD..SR;KUN26..5F..DLX;KUN25..THSCB..CBU;KUN26..LHD..5FC..DLX;KUN35..XTR..DLX..CBU;KUN35..(DCB,THDCB)..CBU;KUN25..LHD..(DCB,SCB,THDCB,XTR)..EUR201107-201512

DIFFERENTIAL LOCK-WITH,LH

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-0K010iKUN2#,35..LHD..(THDCB,THSCB,XTR)..EUR201107-201504

main41316-0K010iKUN25..RHD..XTR201107-201408

DIFFERENTIAL LOCK-WITH(LSD)

main41316-35010iKUN25..FLD201107-201512

main41316-35010iKUN25..DCB..IV3;KUN35..(DCB,SCB)..IV3;KUN25..LHD..SCB..DLX..CBU201107-201512

DIFFERENTIAL LOCK-WITH

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-0K050iKUN25..XTR..IV3;KUN26,35..THDCB,THSCB201202-201504

*299

main41342-0K050iKUN25..XTR..IV3;KUN25..THDCB..SR;KUN26,35..THDCB,THSCB201107-201202

main41342-53020iKUN25..XTR..IV3;KUN26,35..THDCB,THSCB201202-201504

*300

41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)

main90250-T0006iKUN25..THDCB..SR201107-201504

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-0K010iKUN25..THDCB..SR201107-201504

main41351-0K020iKUN35..XTR;KUN25..XTR..SR;KUN25..(THDCB,THSCB)..IV3;KUN25..LHD..(THDCB,THSCB,XTR)..DLX..CBU201107-201408

DIFFERENTIAL LOCK-WITH(LSD)

main41351-0K020iKUN25..THDCB..SR201208-201408

main41351-30060iKUN35..SCB..CBU201107-201512

DIFFERENTIAL LOCK-WITH

main41351-30060iKUN25..FLD201107-201512

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-0K020iKUN35..XTR;KUN25..(THDCB,THSCB)..IV3;KUN25..LHD..(THDCB,THSCB,XTR)..CBU..EUR201107-201504

T=1.55,(L)

main41361-0K030iKUN25..XTR..IV3;KUN26,35..THDCB,THSCB201107-201504

T=1.60,(L)

main41361-0K040iKUN25..THDCB..SR201107-201504

T=1.65,(L)

main41361-0K050iKUN35..XTR;KUN25..(THDCB,THSCB)..IV3;KUN25..LHD..(THDCB,THSCB,XTR)..CBU..EUR201107-201504

T=1.70,(L)

main41361-0K060iKUN25..XTR..IV3;KUN26,35..THDCB,THSCB201107-201504

T=1.75,(L)

main41361-0K070iKUN25..THDCB..SR201107-201504

T=1.80,(L)

main41361-0K080iKUN25..XTR..IV3;KUN26,35..THDCB,THSCB201107-201504

T=1.85,(L)

main41361-0K090iKUN35..XTR;KUN25..(THDCB,THSCB)..IV3;KUN25..LHD..(THDCB,THSCB,XTR)..CBU..EUR201107-201504

T=1.90,(L)

main41361-34010iKUN25..FLD201405-201504

T=1.50

main41361-34010iKUN25..XTR..IV3;KUN26,35..THDCB,THSCB201405-201504

T=1.50,DIFFERENTIAL LOCK-WITHOUT

main41361-34020iKUN25..FLD201405-201504

T=1.55,DIFFERENTIAL LOCK-WITHOUT,(J)

main41361-34020iKUN25..FLD201405-201504

T=1.55,(J)

main41361-34030iKUN25..XTR..IV3;KUN26,35..THDCB,THSCB201405-201504

T=1.60,(J)

main41361-34030iKUN25..XTR..IV3;KUN26,35..THDCB,THSCB201405-201504

T=1.60,DIFFERENTIAL LOCK-WITHOUT,(J)

main41361-34040iKUN35..XTR;KUN25..(THDCB,THSCB)..IV3;KUN25..LHD..(THDCB,THSCB,XTR)..CBU..EUR201405-201504

T=1.65,(J)

main41361-34040iKUN25..FLD201405-201504

T=1.65,DIFFERENTIAL LOCK-WITHOUT,(J)

main41361-34050iKUN25..XTR..IV3;KUN26,35..THDCB,THSCB201405-201504

T=1.70,DIFFERENTIAL LOCK-WITHOUT,(J)

main41361-34050iKUN35..XTR;KUN25..(THDCB,THSCB)..IV3;KUN25..LHD..(THDCB,THSCB,XTR)..CBU..EUR201405-201504

T=1.70,(J)

main41361-34060iKUN25..XTR..IV3;KUN26,35..THDCB,THSCB201405-201504

T=1.75,(J)

main41361-34060iKUN25..XTR..IV3;KUN26,35..THDCB,THSCB201405-201504

T=1.75,DIFFERENTIAL LOCK-WITHOUT,(J)

main41361-34070iKUN25..FLD201405-201504

T=1.80,DIFFERENTIAL LOCK-WITHOUT,(J)

main41361-34070iKUN35..XTR;KUN25..(THDCB,THSCB)..IV3;KUN25..LHD..(THDCB,THSCB,XTR)..CBU..EUR201405-201504

T=1.80,(J)

main41361-34080iKUN25..XTR..IV3;KUN26,35..THDCB,THSCB201405-201504

T=1.85,DIFFERENTIAL LOCK-WITHOUT,(J)

main41361-34080iKUN25..XTR..IV3;KUN26,35..THDCB,THSCB201405-201504

T=1.85,(J)

main41361-34090iKUN25..XTR..IV3;KUN26,35..THDCB,THSCB201405-201504

T=1.90,(J)

main41361-34090iKUN25..FLD201405-201504

T=1.90,DIFFERENTIAL LOCK-WITHOUT,(J)

main41361-35161iKUN25..SCB..IV3;KUN35..SCB..CBU;KUN2#..(DCB,SCB)..SR;KUN25..RHD..(DCB,SCB)..DLX201107-201410

T=1.8,DIFFERENTIAL LOCK-WITH(LSD)

main41361-35161iKUN25..SCB..IV3;KUN35..SCB..CBU;KUN2#..(DCB,SCB)..SR;KUN25..RHD..(DCB,SCB)..DLX201107-201410

T=1.8

main41361-35291iKUN25..DCB..IV3;KUN35..(DCB,SCB)..IV3;KUN25..LHD..SCB..DLX..CBU201107-201410

T=1.70,MARK N

main41361-35291iKUN35..XTR;KUN25..XTR..SR;KUN25..(THDCB,THSCB)..IV3;KUN25..LHD..(THDCB,THSCB,XTR)..DLX..CBU201107-201410

T=1.70,MARK N,DIFFERENTIAL LOCK-WITH(LSD)

main41361-35310iKUN25..RHD..DLX201107-201512

T=0.9,RH,ID=46

main41361-35310iKUN25..RHD..DLX201107-201512

T=0.9,DIFFERENTIAL LOCK-WITH,RH,ID=46

main41361-35320iKUN25..RHD..DLX201107-201512

T=1.0,DIFFERENTIAL LOCK-WITH,RH,ID=46

main41361-35320iKUN25..RHD..SR;KUN26..5F..DLX;KUN25..THSCB..CBU;KUN26..LHD..5FC..DLX;KUN35..XTR..DLX..CBU;KUN35..(DCB,THDCB)..CBU;KUN25..LHD..(DCB,SCB,THDCB,XTR)..EUR201107-201512

T=1.0,RH,ID=46

main41361-35330iKUN25..RHD..SR;KUN26..5F..DLX;KUN25..THSCB..CBU;KUN26..LHD..5FC..DLX;KUN35..XTR..DLX..CBU;KUN35..(DCB,THDCB)..CBU;KUN25..LHD..(DCB,SCB,THDCB,XTR)..EUR201107-201512

T=1.1,RH,ID=46

main41361-35330iKUN25..RHD..SR;KUN26..5F..DLX;KUN25..THSCB..CBU;KUN26..LHD..5FC..DLX;KUN35..XTR..DLX..CBU;KUN35..(DCB,THDCB)..CBU;KUN25..LHD..(DCB,SCB,THDCB,XTR)..EUR201107-201512

T=1.1,DIFFERENTIAL LOCK-WITH,RH,ID=46

main41361-35340iKUN25..RHD..SR;KUN26..5F..DLX;KUN25..THSCB..CBU;KUN26..LHD..5FC..DLX;KUN35..XTR..DLX..CBU;KUN35..(DCB,THDCB)..CBU;KUN25..LHD..(DCB,SCB,THDCB,XTR)..EUR201107-201512

T=1.2,DIFFERENTIAL LOCK-WITH,RH,ID=46

main41361-35340iKUN25..FLD201107-201512

T=1.2,RH,ID=46

main41361-35350iKUN25..RHD..SR;KUN26..5F..DLX;KUN25..THSCB..CBU;KUN26..LHD..5FC..DLX;KUN35..XTR..DLX..CBU;KUN35..(DCB,THDCB)..CBU;KUN25..LHD..(DCB,SCB,THDCB,XTR)..EUR201107-201512

T=1.3,RH,ID=46

main41361-35350iKUN25..RHD..DLX201107-201512

T=1.3,DIFFERENTIAL LOCK-WITH,RH,ID=46

main41361-60290iKUN25..RHD..SR;KUN26..5F..DLX;KUN25..THSCB..CBU;KUN26..LHD..5FC..DLX;KUN35..XTR..DLX..CBU;KUN35..(DCB,THDCB)..CBU;KUN25..LHD..(DCB,SCB,THDCB,XTR)..EUR201107

T=0.90,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54

main41361-60290iKUN25..RHD..DLX201107

T=0.90,RH & LH,ID=54

main41361-60300iKUN25..RHD..SR;KUN26..5F..DLX;KUN25..THSCB..CBU;KUN26..LHD..5FC..DLX;KUN35..XTR..DLX..CBU;KUN35..(DCB,THDCB)..CBU;KUN25..LHD..(DCB,SCB,THDCB,XTR)..EUR201107

T=1.00,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54

main41361-60300iKUN25..FLD201107

T=1.00,RH & LH,ID=54

main41361-60310iKUN25..RHD..DLX201107

T=1.10,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54

main41361-60310iKUN25..FLD201107

T=1.10,RH & LH,ID=54

main41361-60320iKUN25..RHD..SR;KUN26..5F..DLX;KUN25..THSCB..CBU;KUN26..LHD..5FC..DLX;KUN35..XTR..DLX..CBU;KUN35..(DCB,THDCB)..CBU;KUN25..LHD..(DCB,SCB,THDCB,XTR)..EUR201107

T=1.20,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54

main41361-60320iKUN25..RHD..DLX201107

T=1.20,RH & LH,ID=54

main41361-60330iKUN25..RHD..SR;KUN26..5F..DLX;KUN25..THSCB..CBU;KUN26..LHD..5FC..DLX;KUN35..XTR..DLX..CBU;KUN35..(DCB,THDCB)..CBU;KUN25..LHD..(DCB,SCB,THDCB,XTR)..EUR201107

T=1.30,RH & LH,ID=54

main41361-60330iKUN25..RHD..DLX201107

T=1.30,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54

90119T0071

main90119-T0071

24 parts on this diagram · 7 diagrams in section
