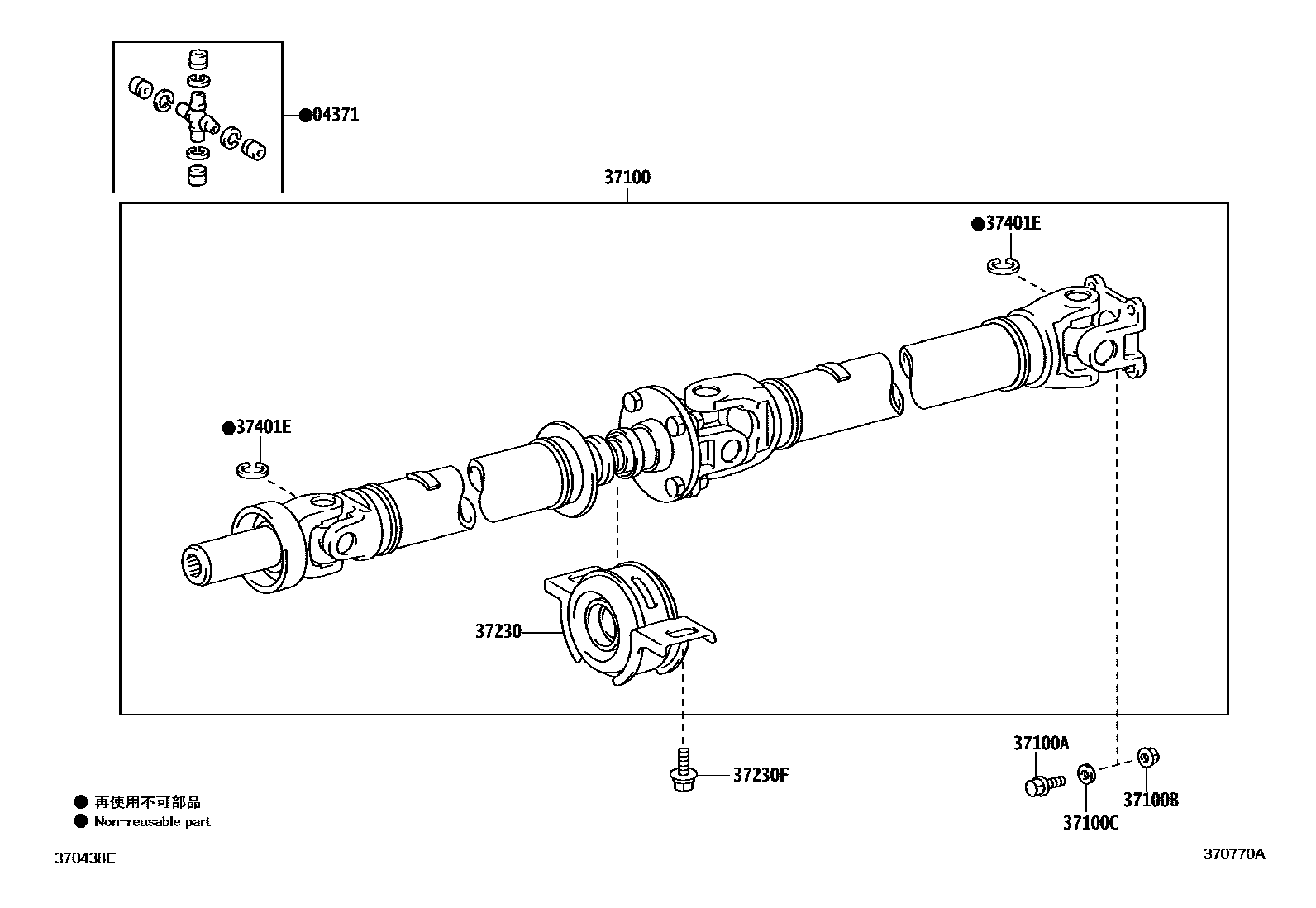

PROPELLER SHAFT & UNIVERSAL JOINT
37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
sub90201-11013
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
37401ERING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
T=1.64,BLUE,NO.2
T=1.59,YELLOW,NO.2
T=1.54,SILVER,NO.2
T=1.49,COPPER,NO.2
T=1.51,BLACK,NO.2
T=1.44,RED,NO.2
T=1.38,GREEN,NO.2
T=1.52,NO.1
T=1.41,NO.2
T=1.46,NO.2
T=1.48,NO.2
T=1.56,NO.2
T=1.61,NO.2
T=1.66,NO.2
T=1.71,NO.2
T=2.19,MARK F
T=2.21,MARK G
T=2.23,MARK H
T=2.25,MARK J
T=2.27,MARK K
T=2.29,MARK 1
T=2.31,MARK 2
T=2.33,MARK 3
T=2.35,MARK 4
T=2.37,MARK 5
T=2.39,MARK 6
T=2.41,MARK 7
T=2.43,MARK 8
T=2.45,MARK N
T=2.47,MARK 10
T=2.49,MARK A
T=2.51,MARK B
T=2.53,MARK C
T=2.55,MARK D
T=2.57,MARK E
8 parts on this diagram · 6 diagrams in section
