EPC Data

TRANSFER GEAR

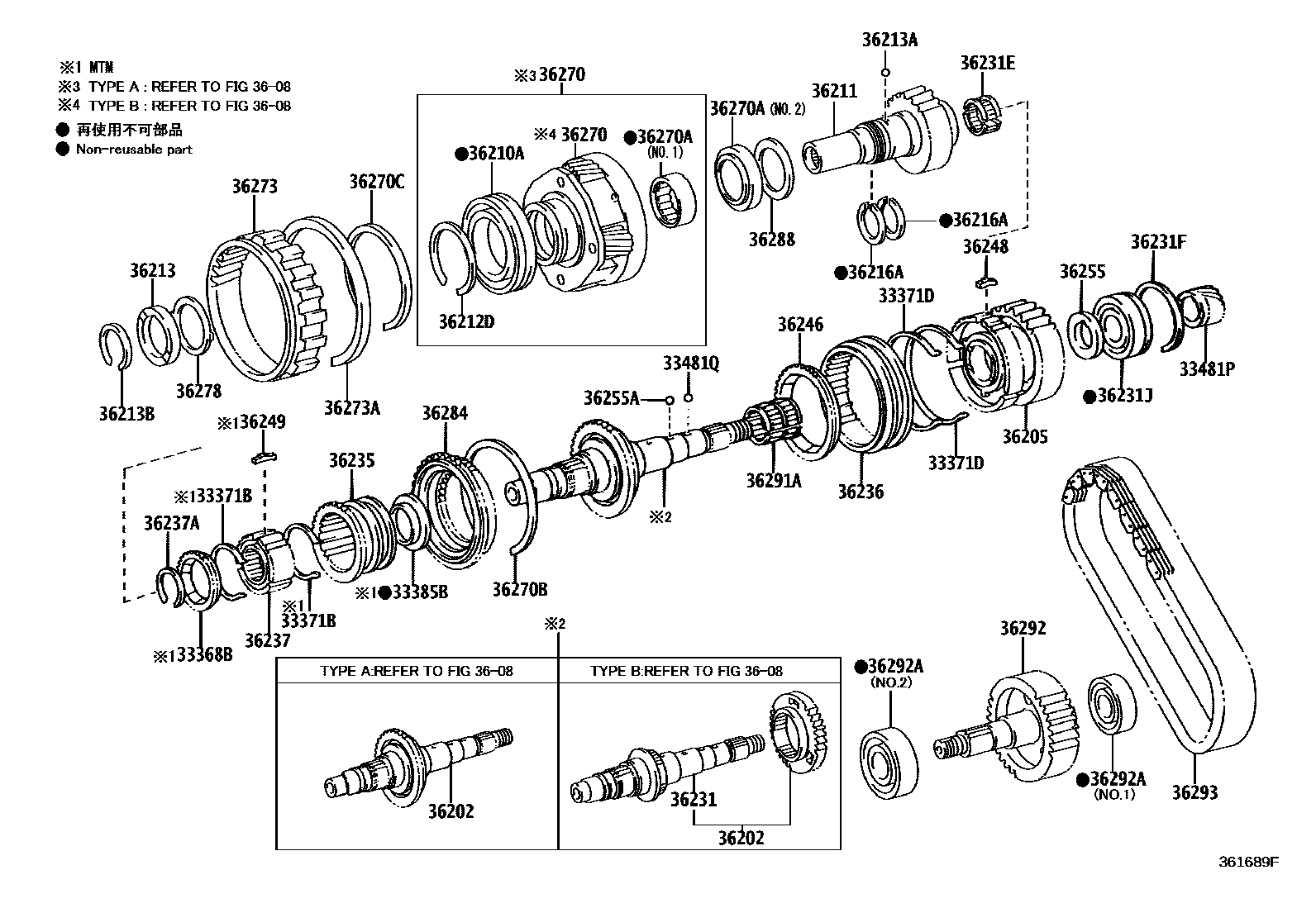

Parts diagram
33368BRING, SYNCHRONIZER (FOR TRANSFER FRONT DRIVE CLUTCH)
main33367-0K280i201306-201512
TYPE B:REFER 36-08
main33367-14010i201107-201512
TYPE A:REFER 36-08
main33367-14010i201107-201306
TYPE B:REFER 36-08
33371BSPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER)
main33371-14010i201107-201512
TYPE B:REFER 36-08,TYPE A:REFER 36-08
33371DSPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER)
main33371-36030i201107-201512
TYPE B:REFER 36-08,TYPE A:REFER 36-08
33385BRETAINER, SHIFTING KEY (FOR TRANSFER FRONT DRIVE CLUTCH)
main33385-35010i201107-201512
TYPE B:REFER 36-08,TYPE A:REFER 36-08
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
main33481-35200i201107-201512
N=11,TYPE B:REFER 36-08,TYPE A:REFER 36-08
main33481-71020i201107-201512
N=11,TYPE B:REFER 36-08,TYPE A:REFER 36-08
main33481-71020i201107-201310
N=11,VSC-WITH&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08,TYPE A:REFER 36-08
main33481-71020i201410-201512
N=11,TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08,TYPE A:REFER 36-08
33481QKEY OR BALL, SPEEDOMETER DRIVE GEAR (FOR TRANSFER)
main90360-05012i201107-201512
TYPE A:REFER 36-08
main90360-05012i201107-201405
TYPE B:REFER 36-08
main90360-T0010i201405-201512
TYPE B:REFER 36-08
36202SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR
main36202-0K010i201107-201512
TYPE B:REFER 36-08
main36202-71010i201107-201512
TYPE A:REFER 36-08
36205SPROCKET SUB-ASSY, TRANSFER DRIVE
main36205-0K030i201107-201512
TYPE B:REFER 36-08
main36205-35081i201107-201307
TYPE A:REFER 36-08
main36205-35110i201307-201512
TYPE A:REFER 36-08
36210ABEARING (FOR TRANSFER INPUT SHAFT)
main90363-75001i201107-201512
TYPE A:REFER 36-08
main90363-75001i201107-201303
TYPE B:REFER 36-08
main90363-T0038i201303-201512
TYPE B:REFER 36-08
36211SHAFT, TRANSFER INPUT
main36201-0K050i201107-201512
TYPE B:REFER 36-08
main36201-71010i201107-201512
TYPE A:REFER 36-08
main36201-71020i201107-201512
TYPE A:REFER 36-08
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
main90520-72001i201107-201512
T=1.45,MARK 1,TYPE A:REFER 36-08
main90520-72001i201107-201303
T=1.45,MARK 1,TYPE B:REFER 36-08
main90520-72002i201107-201303
T=1.50,MARK 2,TYPE B:REFER 36-08
main90520-72002i201107-201512
T=1.50,MARK 2,TYPE A:REFER 36-08
main90520-72003i201107-201303
T=1.55,MARK 3,TYPE B:REFER 36-08
main90520-72003i201107-201512
T=1.55,MARK 3,TYPE A:REFER 36-08
main90520-72004i201107-201512
T=1.60,MARK 4,TYPE A:REFER 36-08
main90520-72004i201107-201303
T=1.60,MARK 4,TYPE B:REFER 36-08
main90520-72005i201107-201303
T=1.65,MARK 5,TYPE B:REFER 36-08
main90520-72005i201107-201512
T=1.65,MARK 5,TYPE A:REFER 36-08
main90520-T0136i201303-201512
T=1.45,MARK 1,TYPE B:REFER 36-08
main90520-T0137i201303-201512
T=1.50,MARK 2,TYPE B:REFER 36-08
main90520-T0138i201303-201512
T=1.55,MARK 3,TYPE B:REFER 36-08
main90520-T0139i201303-201512
T=1.60,MARK 4,TYPE B:REFER 36-08
main90520-T0140i201303-201512
T=1.65,MARK 5,TYPE B:REFER 36-08
36213STOPPER, TRANSFER INPUT GEAR
main36213-0K010i201303-201512
TYPE B:REFER 36-08
main36213-35020i201107-201303
TYPE B:REFER 36-08
main36213-35020i201107-201512
TYPE A:REFER 36-08
36213ABALL (FOR TRANSFER INPUT GEAR STOPPER)
main90360-05012i201107-201405
TYPE B:REFER 36-08
main90360-05012i201107-201512
TYPE A:REFER 36-08
main90360-T0010i201405-201512
TYPE B:REFER 36-08
36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)
main90520-44003i201107-201512
T=2.10-2.15,TYPE A:REFER 36-08
main90520-44003i201107-201411
T=2.10-2.15,TYPE B:REFER 36-08
main90520-44004i201107-201512
T=2.15-2.20,TYPE A:REFER 36-08
main90520-44004i201107-201411
T=2.15-2.20,TYPE B:REFER 36-08
main90520-44005i201107-201411
T=2.20-2.25,TYPE B:REFER 36-08
main90520-44005i201107-201512
T=2.20-2.25,TYPE A:REFER 36-08
main90520-44006i201107-201411
T=2.25-2.30,TYPE B:REFER 36-08
main90520-44006i201107-201512
T=2.25-2.30,TYPE A:REFER 36-08
main90520-44007i201107-201512
T=2.30-2.35,TYPE A:REFER 36-08
main90520-44007i201107-201411
T=2.30-2.35,TYPE B:REFER 36-08
main90520-44008i201107-201512
T=2.35-2.40,TYPE A:REFER 36-08
main90520-44008i201107-201411
T=2.35-2.40,TYPE B:REFER 36-08
main90520-44009i201107-201411
T=2.40-2.45,TYPE B:REFER 36-08
main90520-44009i201107-201512
T=2.40-2.45,TYPE A:REFER 36-08
main90520-44010i201107-201411
T=2.45-2.50,TYPE B:REFER 36-08
main90520-44010i201107-201512
T=2.45-2.50,TYPE A:REFER 36-08
main90520-44011i201107-201411
T=2.50-2.55,TYPE B:REFER 36-08
main90520-44011i201107-201512
T=2.50-2.55,TYPE A:REFER 36-08
main90520-44012i201107-201411
T=2.55-2.60,TYPE B:REFER 36-08
main90520-44012i201107-201512
T=2.55-2.60,TYPE A:REFER 36-08
main90520-44013i201107-201512
T=2.60-2.65,TYPE A:REFER 36-08
main90520-44013i201107-201411
T=2.60-2.65,TYPE B:REFER 36-08
main90520-44014i201107-201411
T=2.65-2.70,TYPE B:REFER 36-08
main90520-44014i201107-201512
T=2.65-2.70,TYPE A:REFER 36-08
main90520-44015i201107-201411
T=2.70-2.75,TYPE B:REFER 36-08
main90520-44015i201107-201512
T=2.70-2.75,TYPE A:REFER 36-08
main90520-44016i201107-201411
T=2.75-2.80,TYPE B:REFER 36-08
main90520-44016i201107-201512
T=2.75-2.80,TYPE A:REFER 36-08
main90520-44017i201107-201512
T=2.80-2.85,TYPE A:REFER 36-08
main90520-44017i201107-201411
T=2.80-2.85,TYPE B:REFER 36-08
main90520-44018i201107-201512
T=2.85-2.90,TYPE A:REFER 36-08
main90520-44018i201107-201411
T=2.85-2.90,TYPE B:REFER 36-08
main90520-44019i201107-201411
T=2.90-2.95,TYPE B:REFER 36-08
main90520-44019i201107-201512
T=2.90-2.95,TYPE A:REFER 36-08
main90520-44020i201107-201411
T=2.95-3.00,TYPE B:REFER 36-08
main90520-44020i201107-201512
T=2.95-3.00,TYPE A:REFER 36-08
main90520-44021i201107-201512
T=3.00-3.05,TYPE A:REFER 36-08
main90520-44021i201107-201411
T=3.00-3.05,TYPE B:REFER 36-08
main90520-T0202i201411-201512
T=2.10-2.15,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0202i201411-201512
T=2.10-2.15,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0202i201411-201512
T=2.10-2.15,TYPE B:REFER 36-08
main90520-T0202i201411-201512
T=2.10-2.15,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0202i201411-201512
T=2.10-2.15,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0202i201411-201512
T=2.10-2.15,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0202i201411-201512
T=2.10-2.15,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0203i201411-201512
T=2.15-2.20,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0203i201411-201512
T=2.15-2.20,TYPE B:REFER 36-08
main90520-T0203i201411-201512
T=2.15-2.20,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0203i201411-201512
T=2.15-2.20,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0203i201411-201512
T=2.15-2.20,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0203i201411-201512
T=2.15-2.20,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0203i201411-201512
T=2.15-2.20,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0204i201411-201512
T=2.20-2.25,TYPE B:REFER 36-08
main90520-T0204i201411-201512
T=2.20-2.25,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0204i201411-201512
T=2.20-2.25,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0204i201411-201512
T=2.20-2.25,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0204i201411-201512
T=2.20-2.25,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0204i201411-201512
T=2.20-2.25,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0204i201411-201512
T=2.20-2.25,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0205i201411-201512
T=2.25-2.30,TYPE B:REFER 36-08
main90520-T0205i201411-201512
T=2.25-2.30,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0205i201411-201512
T=2.25-2.30,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0205i201411-201512
T=2.25-2.30,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0205i201411-201512
T=2.25-2.30,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0205i201411-201512
T=2.25-2.30,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0205i201411-201512
T=2.25-2.30,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0206i201411-201512
T=2.30-2.35,TYPE B:REFER 36-08
main90520-T0206i201411-201512
T=2.30-2.35,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0206i201411-201512
T=2.30-2.35,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0206i201411-201512
T=2.30-2.35,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0206i201411-201512
T=2.30-2.35,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0206i201411-201512
T=2.30-2.35,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0206i201411-201512
T=2.30-2.35,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0207i201411-201512
T=2.35-2.40,TYPE B:REFER 36-08
main90520-T0207i201411-201512
T=2.35-2.40,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0207i201411-201512
T=2.35-2.40,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0207i201411-201512
T=2.35-2.40,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0207i201411-201512
T=2.35-2.40,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0207i201411-201512
T=2.35-2.40,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0207i201411-201512
T=2.35-2.40,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0208i201411-201512
T=2.40-2.45,TYPE B:REFER 36-08
main90520-T0208i201411-201512
T=2.40-2.45,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0208i201411-201512
T=2.40-2.45,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0208i201411-201512
T=2.40-2.45,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0208i201411-201512
T=2.40-2.45,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0208i201411-201512
T=2.40-2.45,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0208i201411-201512
T=2.40-2.45,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0209i201411-201512
T=2.45-2.50,TYPE B:REFER 36-08
main90520-T0209i201411-201512
T=2.45-2.50,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0209i201411-201512
T=2.45-2.50,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0209i201411-201512
T=2.45-2.50,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0209i201411-201512
T=2.45-2.50,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0209i201411-201512
T=2.45-2.50,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0209i201411-201512
T=2.45-2.50,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0210i201411-201512
T=2.50-2.55,TYPE B:REFER 36-08
main90520-T0210i201411-201512
T=2.50-2.55,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0210i201411-201512
T=2.50-2.55,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0210i201411-201512
T=2.50-2.55,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0210i201411-201512
T=2.50-2.55,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0210i201411-201512
T=2.50-2.55,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0210i201411-201512
T=2.50-2.55,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0211i201411-201512
T=2.55-2.60,TYPE B:REFER 36-08
main90520-T0211i201411-201512
T=2.55-2.60,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0211i201411-201512
T=2.55-2.60,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0211i201411-201512
T=2.55-2.60,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0211i201411-201512
T=2.55-2.60,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0211i201411-201512
T=2.55-2.60,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0211i201411-201512
T=2.55-2.60,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0212i201411-201512
T=2.60-2.65,TYPE B:REFER 36-08
main90520-T0212i201411-201512
T=2.60-2.65,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0212i201411-201512
T=2.60-2.65,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0212i201411-201512
T=2.60-2.65,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0212i201411-201512
T=2.60-2.65,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0212i201411-201512
T=2.60-2.65,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0212i201411-201512
T=2.60-2.65,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0213i201411-201512
T=2.65-2.70,TYPE B:REFER 36-08
main90520-T0213i201411-201512
T=2.65-2.70,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0213i201411-201512
T=2.65-2.70,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0213i201411-201512
T=2.65-2.70,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0213i201411-201512
T=2.65-2.70,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0213i201411-201512
T=2.65-2.70,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0213i201411-201512
T=2.65-2.70,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0214i201411-201512
T=2.70-2.75,TYPE B:REFER 36-08
main90520-T0214i201411-201512
T=2.70-2.75,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0214i201411-201512
T=2.70-2.75,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0214i201411-201512
T=2.70-2.75,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0214i201411-201512
T=2.70-2.75,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0214i201411-201512
T=2.70-2.75,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0214i201411-201512
T=2.70-2.75,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0215i201411-201512
T=2.75-2.80,TYPE B:REFER 36-08
main90520-T0215i201411-201512
T=2.75-2.80,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0215i201411-201512
T=2.75-2.80,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0215i201411-201512
T=2.75-2.80,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0215i201411-201512
T=2.75-2.80,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0215i201411-201512
T=2.75-2.80,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0215i201411-201512
T=2.75-2.80,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0216i201411-201512
T=2.80-2.85,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0216i201411-201512
T=2.80-2.85,TYPE B:REFER 36-08
main90520-T0216i201411-201512
T=2.80-2.85,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0216i201411-201512
T=2.80-2.85,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0216i201411-201512
T=2.80-2.85,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0216i201411-201512
T=2.80-2.85,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0216i201411-201512
T=2.80-2.85,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0217i201411-201512
T=2.85-2.90,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0217i201411-201512
T=2.85-2.90,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0217i201411-201512
T=2.85-2.90,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0217i201411-201512
T=2.85-2.90,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0217i201411-201512
T=2.85-2.90,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0217i201411-201512
T=2.85-2.90,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0217i201411-201512
T=2.85-2.90,TYPE B:REFER 36-08
main90520-T0218i201411-201512
T=2.90-2.95,TYPE B:REFER 36-08
main90520-T0218i201411-201512
T=2.90-2.95,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0218i201411-201512
T=2.90-2.95,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0218i201411-201512
T=2.90-2.95,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0218i201411-201512
T=2.90-2.95,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0218i201411-201512
T=2.90-2.95,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0218i201411-201512
T=2.90-2.95,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0219i201411-201512
T=2.95-3.00,TYPE B:REFER 36-08
main90520-T0219i201411-201512
T=2.95-3.00,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0219i201411-201512
T=2.95-3.00,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0219i201411-201512
T=2.95-3.00,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0219i201411-201512
T=2.95-3.00,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0219i201411-201512
T=2.95-3.00,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0219i201411-201512
T=2.95-3.00,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0220i201411-201512
T=3.00-3.05,TYPE B:REFER 36-08
main90520-T0220i201411-201512
T=3.00-3.05,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0220i201411-201512
T=3.00-3.05,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0220i201411-201512
T=3.00-3.05,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0220i201411-201512
T=3.00-3.05,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0220i201411-201512
T=3.00-3.05,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0220i201411-201512
T=3.00-3.05,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1
main36216-35012i201107-201512
TYPE B:REFER 36-08,TYPE A:REFER 36-08
36231SHAFT, TRANSFER OUTPUT, REAR
main36231-0K020i201107-201512
TYPE B:REFER 36-08
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
main90364-28004i201107-201501
TYPE B:REFER 36-08
main90364-28004i201107-201512
TYPE A:REFER 36-08
main90364-C0016i201502-201512
TYPE B:REFER 36-08
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
main90520-71221i201107-201512
T=1.65,ID=71.1,TYPE B:REFER 36-08,TYPE A:REFER 36-08
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
main90363-32006i201107-201303
TYPE B:REFER 36-08
main90363-32006i201107-201512
TYPE A:REFER 36-08
main90363-T0035i201303-201512
TYPE B:REFER 36-08
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
main36235-0K030i201502-201512
TYPE B:REFER 36-08
sub36235-04010
main36235-35021i201107-201402
TYPE A:REFER 36-08
sub36235-35H00
sub36235-35H01
main36235-35021i201107-201405
TYPE B:REFER 36-08
sub36235-35H00
sub36235-35H01
main36235-35022i201402-201512
TYPE A:REFER 36-08
main36235-35022i201405-201502
TYPE B:REFER 36-08
36236SLEEVE, FRONT DRIVE CLUTCH
main36236-0K060i201505-201512
TYPE B:REFER 36-08
main36236-35050i201107-201512
TYPE A:REFER 36-08
main36236-35050i201107-201505
TYPE B:REFER 36-08
36237HUB, TRANSFER CLUTCH
main36237-0K020i201303-201512
TYPE B:REFER 36-08
main36237-35030i201107-201303
TYPE B:REFER 36-08
main36237-35030i201107-201512
TYPE A:REFER 36-08
36237ARING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)
main90520-39004i201107-201411
T=2.10-2.15,MARK A,TYPE B:REFER 36-08
main90520-39004i201107-201512
T=2.10-2.15,MARK A,TYPE A:REFER 36-08
main90520-39005i201107-201512
T=2.15-2.20,MARK B,TYPE A:REFER 36-08
main90520-39005i201107-201411
T=2.15-2.20,MARK B,TYPE B:REFER 36-08
main90520-39006i201107-201411
T=2.20-2.25,MARK C,TYPE B:REFER 36-08
main90520-39006i201107-201512
T=2.20-2.25,MARK C,TYPE A:REFER 36-08
main90520-39007i201107-201411
T=2.25-2.30,MARK D,TYPE B:REFER 36-08
main90520-39007i201107-201512
T=2.25-2.30,MARK D,TYPE A:REFER 36-08
main90520-39008i201107-201411
T=2.30-2.35,MARK E,TYPE B:REFER 36-08
main90520-39008i201107-201512
T=2.30-2.35,MARK E,TYPE A:REFER 36-08
main90520-39009i201107-201411
T=2.35-2.40,MARK F,TYPE B:REFER 36-08
main90520-39009i201107-201512
T=2.35-2.40,MARK F,TYPE A:REFER 36-08
main90520-39010i201107-201411
T=2.40-2.45,MARK G,TYPE B:REFER 36-08
main90520-39010i201107-201512
T=2.40-2.45,MARK G,TYPE A:REFER 36-08
main90520-39011i201107-201512
T=2.45-2.50,MARK H,TYPE A:REFER 36-08
main90520-39011i201107-201411
T=2.45-2.50,MARK H,TYPE B:REFER 36-08
main90520-39012i201107-201411
T=2.50-2.55,MARK J,TYPE B:REFER 36-08
main90520-39012i201107-201512
T=2.50-2.55,MARK J,TYPE A:REFER 36-08
main90520-39013i201107-201411
T=2.00-2.05,MARK K,TYPE B:REFER 36-08
main90520-39013i201107-201512
T=2.00-2.05,MARK K,TYPE A:REFER 36-08
main90520-39014i201107-201411
T=2.05-2.10,MARK L,TYPE B:REFER 36-08
main90520-39014i201107-201512
T=2.05-2.10,MARK L,TYPE A:REFER 36-08
main90520-99078i201107-201512
T=2.0,TYPE B:REFER 36-08
main90520-T0191i201411-201512
T=2.10-2.15,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0191i201411-201512
T=2.10-2.15,TYPE B:REFER 36-08
main90520-T0191i201411-201512
T=2.10-2.15,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0191i201411-201512
T=2.10-2.15,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0191i201411-201512
T=2.10-2.15,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0191i201411-201512
T=2.10-2.15,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0191i201411-201512
T=2.10-2.15,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0192i201411-201512
T=2.15-2.20,TYPE B:REFER 36-08
main90520-T0192i201411-201512
T=2.15-2.20,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0192i201411-201512
T=2.15-2.20,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0192i201411-201512
T=2.15-2.20,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0192i201411-201512
T=2.15-2.20,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0192i201411-201512
T=2.15-2.20,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0192i201411-201512
T=2.15-2.20,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0193i201411-201512
T=2.20-2.25,TYPE B:REFER 36-08
main90520-T0193i201411-201512
T=2.20-2.25,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0193i201411-201512
T=2.20-2.25,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0193i201411-201512
T=2.20-2.25,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0193i201411-201512
T=2.20-2.25,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0193i201411-201512
T=2.20-2.25,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0193i201411-201512
T=2.20-2.25,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0194i201411-201512
T=2.25-2.30,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0194i201411-201512
T=2.25-2.30,TYPE B:REFER 36-08
main90520-T0194i201411-201512
T=2.25-2.30,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0194i201411-201512
T=2.25-2.30,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0194i201411-201512
T=2.25-2.30,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0194i201411-201512
T=2.25-2.30,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0194i201411-201512
T=2.25-2.30,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0195i201411-201512
T=2.30-2.35,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0195i201411-201512
T=2.30-2.35,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0195i201411-201512
T=2.30-2.35,TYPE B:REFER 36-08
main90520-T0195i201411-201512
T=2.30-2.35,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0195i201411-201512
T=2.30-2.35,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0195i201411-201512
T=2.30-2.35,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0195i201411-201512
T=2.30-2.35,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0196i201411-201512
T=2.35-2.40,TYPE B:REFER 36-08
main90520-T0196i201411-201512
T=2.35-2.40,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0196i201411-201512
T=2.35-2.40,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0196i201411-201512
T=2.35-2.40,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0196i201411-201512
T=2.35-2.40,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0196i201411-201512
T=2.35-2.40,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0196i201411-201512
T=2.35-2.40,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0197i201411-201512
T=2.40-2.45,TYPE B:REFER 36-08
main90520-T0197i201411-201512
T=2.40-2.45,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0197i201411-201512
T=2.40-2.45,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0197i201411-201512
T=2.40-2.45,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0197i201411-201512
T=2.40-2.45,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0197i201411-201512
T=2.40-2.45,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0197i201411-201512
T=2.40-2.45,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0198i201411-201512
T=2.45-2.50,TYPE B:REFER 36-08
main90520-T0198i201411-201512
T=2.45-2.50,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0198i201411-201512
T=2.45-2.50,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0198i201411-201512
T=2.45-2.50,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0198i201411-201512
T=2.45-2.50,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0198i201411-201512
T=2.45-2.50,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0198i201411-201512
T=2.45-2.50,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0199i201411-201512
T=2.50-2.55,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0199i201411-201512
T=2.50-2.55,TYPE B:REFER 36-08
main90520-T0199i201411-201512
T=2.50-2.55,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0199i201411-201512
T=2.50-2.55,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0199i201411-201512
T=2.50-2.55,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0199i201411-201512
T=2.50-2.55,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0199i201411-201512
T=2.50-2.55,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0200i201411-201512
T=2.00-2.05,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0200i201411-201512
T=2.00-2.05,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0200i201411-201512
T=2.00-2.05,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0200i201411-201512
T=2.00-2.05,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0200i201411-201512
T=2.00-2.05,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0200i201411-201512
T=2.00-2.05,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
main90520-T0200i201411-201512
T=2.00-2.05,TYPE B:REFER 36-08
main90520-T0201i201411-201512
T=2.05-2.10,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0201i201411-201512
T=2.05-2.10,TYPE B:REFER 36-08
main90520-T0201i201411-201512
T=2.05-2.10,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0201i201411-201512
T=2.05-2.10,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0201i201411-201512
T=2.05-2.10,RUSSIA & UKRAINE SPEC&DIFFERENTIAL LOCK-WITH(LSD)&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 36-08
main90520-T0201i201411-201512
T=2.05-2.10,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 36-08
main90520-T0201i201411-201512
T=2.05-2.10,MOROCCO SPEC&VSC-WITHOUT&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER36-08
36246RING, TRANSFER FRONT DRIVE SYNCHRONIZER
main36246-0K010i201306-201512
TYPE B:REFER 36-08
main36246-35060i201107-201512
TYPE A:REFER 36-08
main36246-35060i201107-201306
TYPE B:REFER 36-08
36248KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1
main36248-0K010i201303-201512
TYPE B:REFER 36-08
main36248-35031i201107-201303
TYPE B:REFER 36-08
main36248-35031i201107-201512
TYPE A:REFER 36-08
36249KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2
main36249-0K010i201303-201512
TYPE B:REFER 36-08
main36249-35030i201107-201303
TYPE B:REFER 36-08
main36249-35030i201107-201512
TYPE A:REFER 36-08
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
main36255-0K010i201303-201512
TYPE B:REFER 36-08
main36255-35020i201107-201303
TYPE B:REFER 36-08
main36255-35020i201107-201512
TYPE A:REFER 36-08
36255ABALL (FOR TRANSFER OUTPUT SHAFT SPACER)
main90360-05012i201107-201405
TYPE B:REFER 36-08
main90360-05012i201107-201512
TYPE A:REFER 36-08
main90360-T0010i201405-201512
TYPE B:REFER 36-08
36270GEAR ASSY, TRANSFER LOW PLANETARY
main36270-0K020i201107-201512
TYPE B:REFER 36-08
sub36270-04020
sub36227-0K011
main36270-35900i201107-201512
TYPE A:REFER 36-08
36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)
main90364-47001i201107-201512
T/P A:SEE 36-08,NO.1
sub90364-47013
main90364-47001i201107-201303
T/P B:SEE 36-08,NO.1
sub90364-47013
main90364-T0033i201303-201512
T/P B:SEE 36-08,NO.1
sub90364-T0054
main90374-49001i201107-201501
T/P B:SEE 36-08,NO.2
main90374-49001i201107-201512
T/P A:SEE 36-08,NO.2
main90374-C0017i201502-201512
T/P B:SEE 36-08,NO.2
36270BRING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)
main90521-99056i201107-201512
T=1.8,TYPE B:REFER 36-08,TYPE A:REFER 36-08
sub90520-T0190
36270CRING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)
main90520-99072i201107-201512
TYPE A:REFER 36-08
main90520-99072i201107-201411
TYPE B:REFER 36-08
main90520-T0188i201411-201512
TYPE B:REFER 36-08
36273GEAR, TRANSFER LOW PLANETARY RING
main36273-0K010i201107-201512
TYPE B:REFER 36-08
main36273-35030i201107-201512
TYPE A:REFER 36-08
36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)
main90520-99078i201107-201512
TYPE A:REFER 36-08
36278WASHER, MANUAL TRANSFER PLANETARY CARRIER
main36278-0K010i201403-201512
T=0.95-1.05,TYPE B:REFER 36-08
main36278-35020i201107-201512
T=0.95-1.05,TYPE A:REFER 36-08
main36278-35020i201107-201403
T=0.95-1.05,TYPE B:REFER 36-08
36284PIECE, TRANSFER LOW PLANETARY GEAR SPLINE
main36284-0K020i201107-201405
TYPE B:REFER 36-08
sub36235-35H01
main36284-0K021i201405-201512
TYPE B:REFER 36-08
main36284-35021i201107-201402
TYPE A:REFER 36-08
sub36235-35H01
main36284-35022i201402-201512
TYPE A:REFER 36-08
36288RACE, TRANSFER THRUST BEARING, NO.1
main36288-0K010i201502-201512
TYPE B:REFER 36-08
main36288-28010i201107-201512
TYPE A:REFER 36-08
main36288-28010i201107-201501
TYPE B:REFER 36-08
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
main90364-37013i201107-201512
TYPE B:REFER 36-08,TYPE A:REFER 36-08
36292SPROCKET, TRANSFER DRIVEN
main36292-0K010i201107-201512
TYPE B:REFER 36-08
main36292-35050i201107-201307
TYPE A:REFER 36-08
main36292-35070i201307-201512
TYPE A:REFER 36-08
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
main90363-28004i201107-201512
(J),NO.1
main90363-32037i201107-201303
T/P B:SEE 36-08,NO.2
main90363-32037i201107-201512
T/P A:SEE 36-08,NO.2
main90363-T0036i201303-201512
T/P B:SEE 36-08,NO.2
main90363-T0037i201303-201512
(L),NO.1
sub90363-T0061
36293CHAIN, TRANSFER FRONT DRIVE
main36293-35040i201107-201307
TYPE A:REFER 36-08
main36293-35040i201107-201512
TYPE B:REFER 36-08
main36293-35050i201307-201512
TYPE A:REFER 36-08

41 parts on this diagram · 1 diagram in section

TRANSFER GEAR — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
