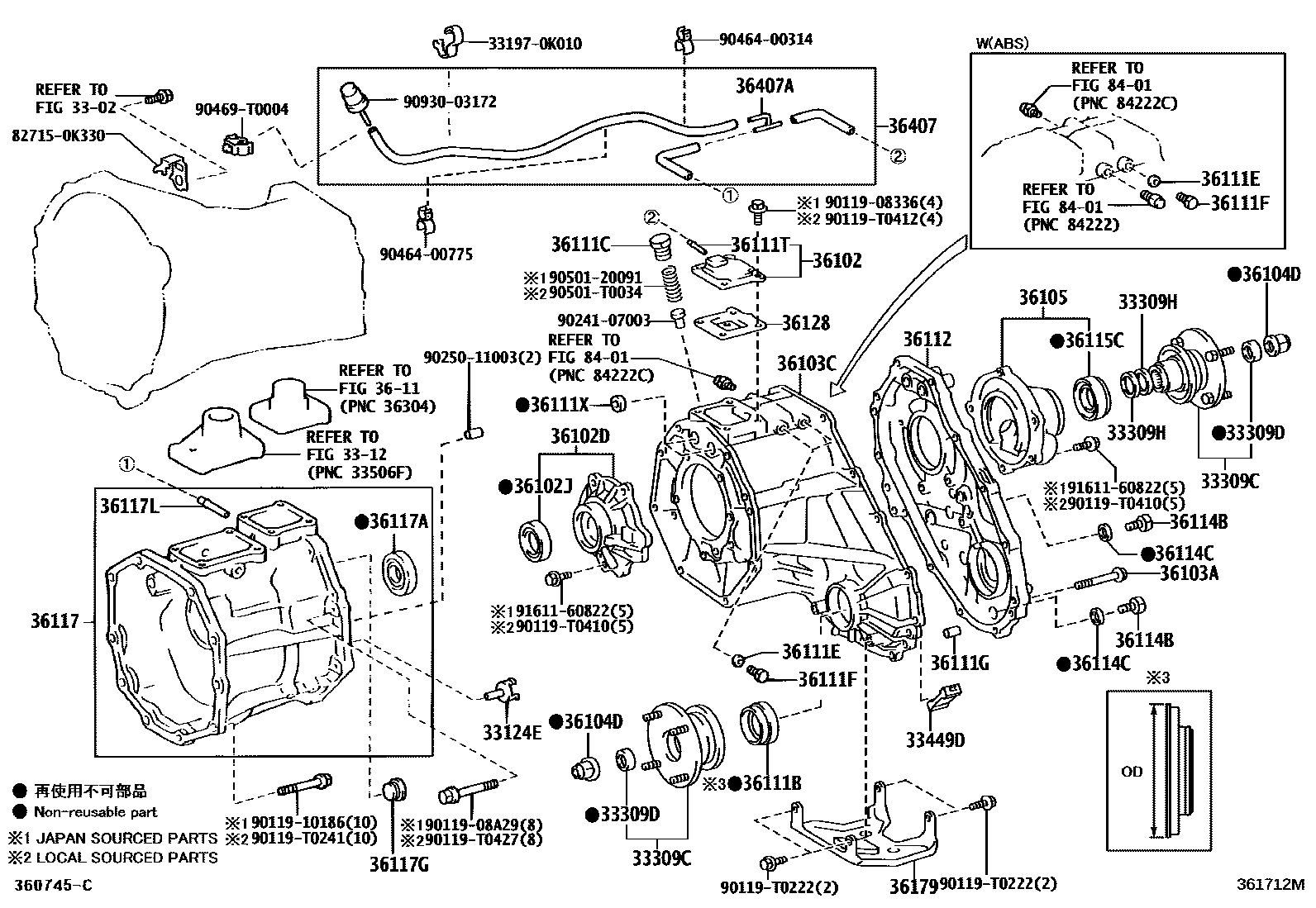

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1

3302

3312

33124EPIPE, OIL RECEIVER(FOR TRANSFER)

main33124-0K010iKUN2#..5F201107-201512

TYPE D:REFER 33-01,TYPE C:REFER 33-01

main33124-0K060iKUN2#..(THDCB,THSCB,XTR)..5F201304-201504

TYPE B:SEE 33-01,(L)

main33124-35100iKUN2#..(THDCB,THSCB,XTR)..5F201107-201504

TYPE B:SEE 33-01,(J)

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-0K010iKUN2#201303-201503

FR,TYPE B:REFER36-08

sub33309-0K011

sub90311-T0082

main33309-0K011iKUN2#201503-201512

FR,TYPE B:REFER36-08

sub33309-0K012

main33309-0K020iKUN2#201303-201512

RR,TYPE B:REFER36-08

main33309-35111iKUN2#201107-201411

FR,TYPE A:REFER36-08

sub33309-35112

sub90311-41017

main33309-35111iKUN2#201107-201303

FR,TYPE B:REFER36-08

sub33309-35112

sub90311-41017

main33309-35112iKUN2#201411-201512

FR,TYPE A:REFER36-08

sub33309-35113

main33309-35120iKUN2#201107-201303

RR,TYPE B:REFER36-08

main33309-35120iKUN2#201107-201512

RR,TYPE A:REFER36-08

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001iKUN2#201107-201512

TYPE A:REFER 36-08

main90312-23001iKUN2#201107-201303

TYPE B:REFER 36-08

main90312-T0004iKUN2#201303-201512

TYPE B:REFER 36-08

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-35010iKUN2#201107-201512

N=30,OD=38,TYPE B:REFER 36-08,TYPE A:REFER 36-08

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iKUN2#201107-201512

TYPE B:REFER 36-08,TYPE A:REFER 36-08

36102COVER SUB-ASSY, TRANSFER CASE

main36102-0K020iKUN2#201303-201512

TYPE B:REFER 36-08

main36102-35040iKUN2#201107-201303

TYPE B:REFER 36-08

main36102-35040iKUN2#201107-201512

TYPE A:REFER 36-08

36102DRETAINER SUB-ASSY, TRANSFER RH BEARING

main36102-0K010iKUN2#201303-201512

TYPE B:REFER 36-08

main36102-35060iKUN2#201107-201512

TYPE A:REFER 36-08

main36102-35060iKUN2#201107-201303

TYPE B:REFER 36-08

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-43008iKUN2#201107-201512

TYPE A:REFER 36-08

main90311-43008iKUN2#201107-201403

TYPE B:REFER 36-08

main90311-T0071iKUN2#201403-201512

TYPE B:REFER 36-08

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28iKUN2#201107-201306

*8-1.25PX55-30,TYPE B:REFER 36-08

main90119-08A28iKUN2#201107-201512

*8-1.25PX55-30,TYPE A:REFER 36-08

main90119-T0411iKUN2#201306-201512

*8-1.25PX55-30,TYPE B:REFER 36-08

36103CCASE, TRANSFER, FRONT

main36111-60261iKUN2#201107-201512

TYPE A:REFER 36-08

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22016iKUN2#201107-201512

TYPE B:REFER 36-08,TYPE A:REFER 36-08

36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT

main36105-0K010iKUN2#201303-201512

TYPE B:REFER 36-08

main36105-35040iKUN2#201107-201303

TYPE B:REFER 36-08

main36105-35040iKUN2#201107-201512

TYPE A:REFER 36-08

3611

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-41013iKUN2#201107-201403

T/P B:SEE36-08,OD=80

main90311-41013iKUN2#201107-201411

T/P A:SEE36-08,OD=80

main90311-41017iKUN2#201411-201512

T/P A:SEE36-08,OD=90

main90311-T0070iKUN2#201403-201503

T/P B:SEE36-08,OD=80

main90311-T0082iKUN2#201503-201512

T/P B:SEE36-08,OD=90

36111CPLUG (FOR TRANSFER CASE)

main90341-14012iKUN2#201107-201512

TYPE A:REFER 36-08

main90341-14012iKUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR201107-201411

TYPE B:REFER 36-08

main90341-T0013iKUN2#201411-201512

TYPE B:REFER 36-08

36111EGASKET (FOR TRANSFER CASE)

main90430-18008iKUN2#..5F201107-201403

TYPE B:REFER 36-08

main90430-T0021iKUN2#..5F201403-201512

TYPE B:REFER 36-08

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iKUN2#..5F201107-201512

TYPE B:REFER 36-08,TYPE A:REFER 36-08

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iKUN26..5F..SR;KUN2#..DCB..DLX;KUN26..THDCB..5FC;KUN25..SCB,THDCB,THSCB,XTR201107-201411

L=14,OD=10,TYPE B:REFER 36-08

main90250-10214iKUN2#201107-201512

L=14,OD=10,TYPE A:REFER 36-08

main90250-T0026iKUN2#201411-201512

L=14,OD=10,TYPE B:REFER 36-08

36111TTUBE (FOR TRANSFER CASE)

main90406-T0007iKUN2#201303-201512

TYPE B:REFER 36-08

main90441-05001iKUN2#201107-201303

TYPE B:REFER 36-08

sub90406-T0007

main90441-05001iKUN2#201107-201512

TYPE A:REFER 36-08

sub90406-T0007

36111XSEAL, OIL (FOR TRANSFER CASE), NO.2

main90311-15008iKUN2#201107-201512

TYPE B:REFER 36-08,TYPE A:REFER 36-08

36112CASE, TRANSFER, REAR

main36112-0K020iKUN2#201107-201512

TYPE B:REFER 36-08

main36112-35040iKUN2#201107-201512

TYPE A:REFER 36-08

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iKUN2#201107-201512

TYPE B:REFER 36-08,TYPE A:REFER 36-08

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008iKUN26..5FC201107-201512

TYPE A:REFER 36-08

main90430-18008iKUN2#201107-201403

TYPE B:REFER 36-08

main90430-T0021iKUN2#201403-201512

TYPE B:REFER 36-08

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-41007iKUN2#201107-201512

TYPE B:REFER 36-08,TYPE A:REFER 36-08

sub90311-41020

36117ADAPTER, TRANSFER

main36107-0K010iKUN2#..5F201107-201512

TYPE C:REFER 33-01

main36107-0K030iKUN2#..5F201107-201512

TYPE D:REFER 33-01

main36107-0K050iKUN2#..(THDCB,THSCB,XTR)..5F201107-201504

TYPE B:REFER 33-01

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90311-T0018iKUN2#..5F201107-201511

TYPE D:REFER 33-01,TYPE C:REFER 33-01

sub90311-T0080

main90311-T0028iKUN2#..(THDCB,THSCB,XTR)..5F201107-201504

TYPE B:REFER 33-01

main90311-T0080iKUN2#..5F201511-201512

TYPE D:REFER 33-01,TYPE C:REFER 33-01

36117GPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)

main90341-24006iKUN2#..(THDCB,THSCB,XTR)..5F201107-201504

TYPE B:REFER 33-01

main90341-24006iKUN2#..5F201107-201512

TYPE D:REFER 33-01,TYPE C:REFER 33-01

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iKUN2#201107-201512

sub90406-T0007

36128DEFLECTOR, BREATHER OIL

main36128-0K020iKUN2#201502-201512

TYPE B:REFER 36-08

main36128-35060iKUN2#201107-201502

TYPE B:REFER 36-08

main36128-35060iKUN2#201107-201512

TYPE A:REFER 36-08

36179PROTECTOR, TRANSFER CASE LOWER

main36179-0K010iKUN2#201107-201310

sub36179-0K011

main36179-0K011iKUN2#201311-201512

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-71050iKUN26..5FC201107-201512

main36407-71070iKUN2#..5F201107-201512

36407AWAY, 3(FOR TRANSFER BREATHER HOSE)

main90413-04001iKUN2#..5F201107-201512

main90413-04008iKUN26..5FC201107-201512

8401

331970K010CLAMP, TRANSMISSION BREATHER

main33197-0K010

827150K330BRACKET,WIRING HARNESS CLAMP

main82715-0K330

9011908336

main90119-08336

9011908A29

main90119-08A29

9011910186

main90119-10186

90119T0222

main90119-T0222

90119T0241

main90119-T0241

90119T0410

main90119-T0410

90119T0412

main90119-T0412

90119T0427

main90119-T0427

9024107003

main90241-07003

9025011003

main90250-11003

9046400314

main90464-00314

9046400775

main90464-00775

90469T0004

main90469-T0004

9050120091

main90501-20091

90501T0034

main90501-T0034

9093003172

main90930-03172

9161160822

main91611-60822

54 parts on this diagram · 2 diagrams in section
