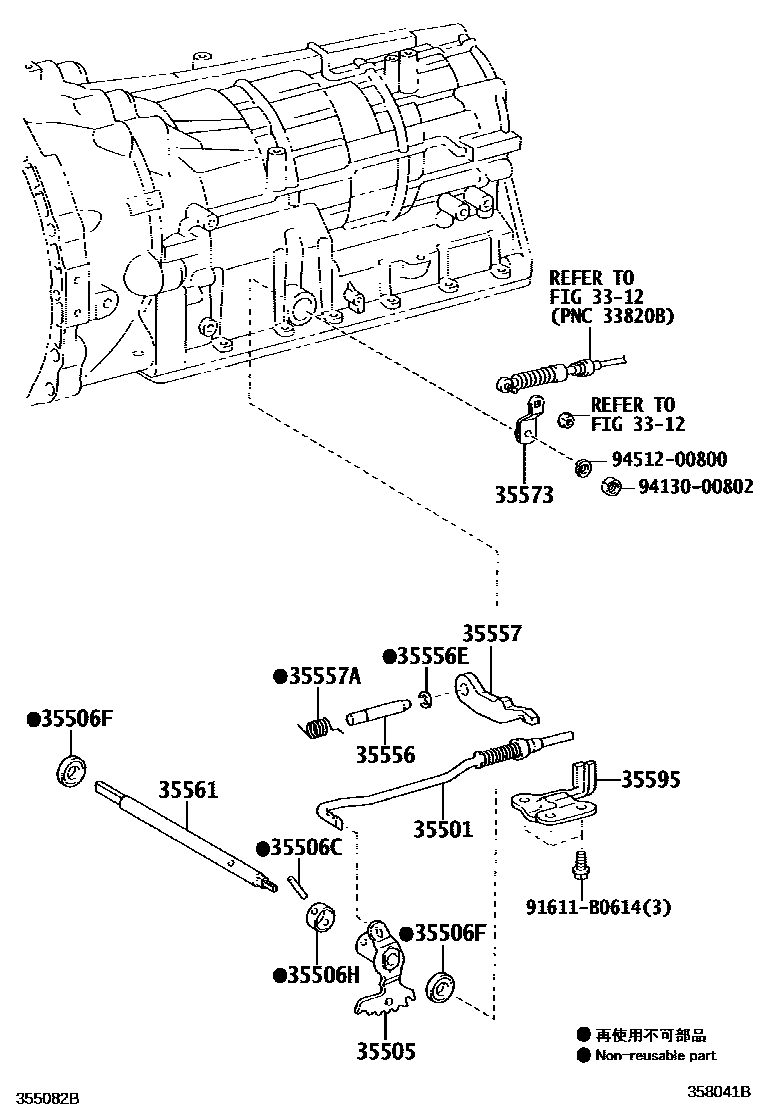

THROTTLE LINK & VALVE LEVER (ATM)

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-60020iKUN26..5FC201107-201512

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-60040iKUN26..5FC201107-201512

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iKUN26..5FC201107-201512

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iKUN26..5FC201107-201512

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iKUN26..5FC201107-201512

35556SHAFT, PARKING LOCK PAWL

main35556-60020iKUN26..5FC201107-201512

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iKUN26..5FC201107-201512

35557PAWL, PARKING LOCK

main35557-60040iKUN26..5FC201107-201512

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03123iKUN26..5FC201107-201512

35561SHAFT, MANUAL VALVE LEVER

main35561-60030iKUN26..5FC201107-201512

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-60020iKUN26..5FC201107-201512

35595BRACKET, PARKING LOCK PAWL

main35595-60030iKUN26..5FC201107-201512

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

16 parts on this diagram · 1 diagram in section
