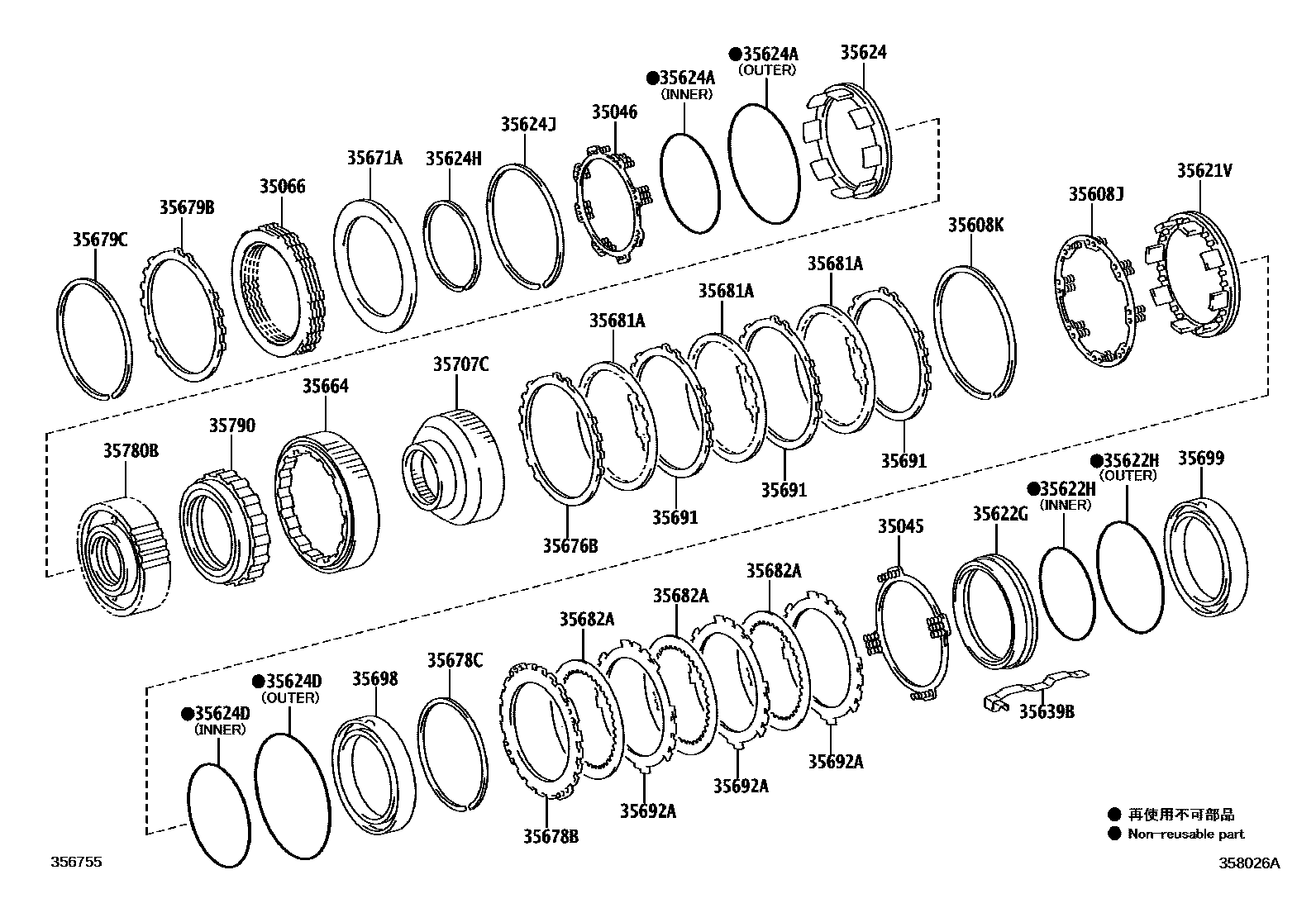

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
35046SPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3
35066DISC SET, 2ND BRAKE
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
35621VPISTON, BRAKE, NO.1
35622GPISTON, BRAKE, NO.2
35622HRING, O (FOR BRAKE PISTON NO.2)
OUTER
INNER
35624PISTON, 2ND BRAKE
35624ARING, O (FOR 2ND BRAKE PISTON)
INNER
OUTER
35624DRING, O (FOR BRAKE PISTON NO.4)
OUTER
INNER
INNER
35624HRING, SNAP (FOR 2ND BRAKE PISTON)
35624JRING, HOLE SNAP (FOR 2ND BRAKE PISTON)
35639BSPRING, BRAKE PLATE STOPPER
35664CYLINDER, 2ND BRAKE
35671APLATE, BRAKE CUSHION
35676BFLANGE, BRAKE, NO.1
T=2.0,MARK 0
T=2.2,MARK 1
T=2.4,MARK 2
T=2.6,MARK 3
35678BFLANGE, BRAKE, NO.2
T=4.6
35678CRING, SNAP (FOR BRAKE NO.2)
35679BFLANGE, BRAKE, NO.3
35679CRING, SNAP (FOR BRAKE NO.3)
35681ADISC, BRAKE, NO.1
35682ADISC, BRAKE, NO.2
35691PLATE, BRAKE, NO.1
35692APLATE, BRAKE, NO.2
35698CYLINDER, BRAKE, NO.1
35699CYLINDER, BRAKE, NO.2
35707CRACE SUB-ASSY, 1 WAY CLUTCH, INNER
35780BCLUTCH ASSY, 1 WAY N0.2
35790CLUTCH ASSY, 1 WAY
30 parts on this diagram · 1 diagram in section
