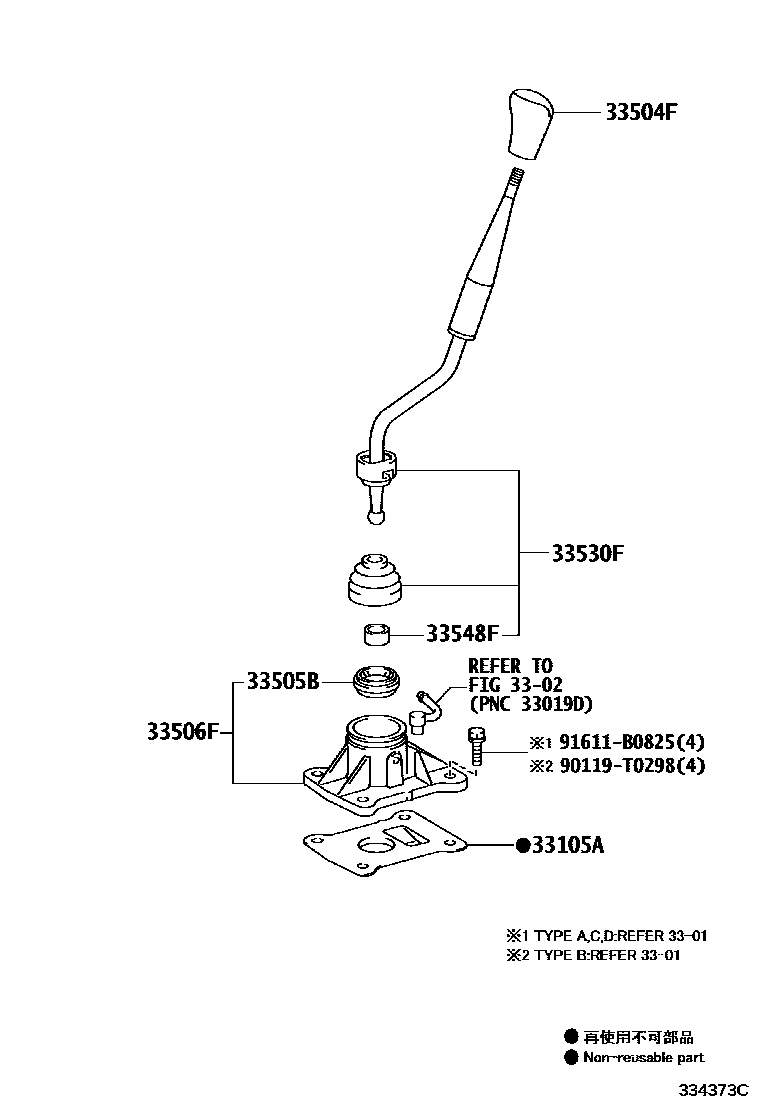

SHIFT LEVER & RETAINER
3302
33105ADEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)
TYPE B:REFER 33-01
TYPE D:REFER 33-01,TYPE C:REFER 33-01
33504FKNOB SUB-ASSY, SHIFT LEVER
DK.GRAY,TRIM1#
BLACK,TRIM2#
DK.GRAY,TRIM1#
BLACK,TRIM2#
DK.GRAY,TRIM1#,(L)
DK.GRAY,TRIM10,(L)
BLACK,TRIM1#,2#,(L)
BLACK,TRIM2#,(L)
BLACK,TRIM10,2#,(L)
BLACK,TRIM2#,(J)
sub33504-22140
33505BSEAT SUB-ASSY, SHIFT LEVER
TYPE B:REFER 33-01
TYPE D:REFER 33-01
TYPE D:REFER 33-01
TYPE C:REFER 33-01
33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
TYPE D:REFER 33-01
TYPE B:REFER 33-01
TYPE C:REFER 33-01
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
90119T0298
main90119-T0298
91611B0825
main91611-B0825
9 parts on this diagram · 5 diagrams in section
