TRANSMISSION GEAR (MTM)

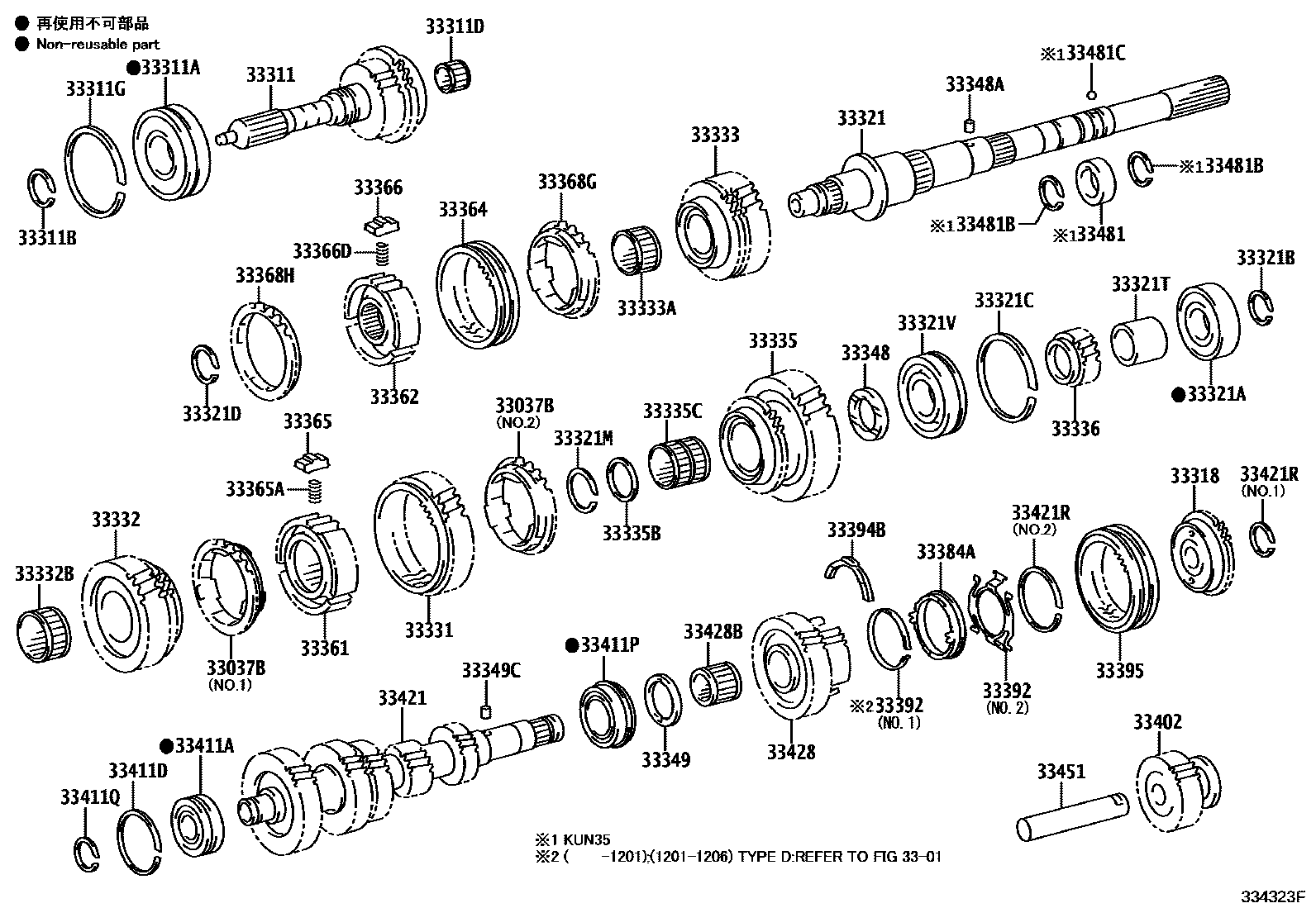

Parts diagram
33037BRING SET, SYNCHRONIZER, NO.1
main33037-0K010i201107-201512
T/P C:SEE 33-01,NO.2
main33037-0K020i201107-201512
T/P C:SEE 33-01,NO.1
sub33037-0K130
main33037-0K030i201107-201512
T/P D:SEE 33-01,NO.2
sub33037-0K150
main33037-0K040i201107-201512
T/P D:SEE 33-01,NO.1
main33037-0K050i201107-201504
T/P B:SEE 33-01,NO.1
sub33037-35030
main33037-0K060i201107-201504
T/P B:SEE 33-01,NO.2
33311SHAFT, INPUT
main33301-0K010i201107-201208
TYPE C:REFER 33-01
sub33301-0K090
main33301-0K011i201208-201410
TYPE C:REFER 33-01
sub33301-0K012
main33301-0K012i201410-201512
TYPE C:REFER 33-01
sub33301-0K090
main33301-0K030i201107-201407
TYPE B:REFER 33-01
sub33301-0K070
main33301-0K050i201107-201305
TYPE D:REFER 33-01
sub33301-0K052
sub90311-T0094
main33301-0K051i201305-201512
TYPE D:REFER 33-01
sub33301-0K052
main33301-0K070i201407-201504
TYPE B:REFER 33-01
sub33301-0K120
33311ABEARING (FOR INPUT SHAFT FRONT)
main90363-T0010i201107-201509
TYPE C:REFER 33-01
sub90363-T0048
main90363-T0010i201107-201405
TYPE D:REFER 33-01
sub90363-T0048
main90363-T0021i201107-201504
TYPE B:REFER 33-01
main90363-T0030i201405-201512
TYPE D:REFER 33-01
main90363-T0048i201510-201512
TYPE C:REFER 33-01
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
main90520-38008i201107-201512
T=2.10,MARK A,TYPE C:REFER 33-01
main90520-38008i201107-201501
T=2.10,MARK A,TYPE D:REFER 33-01
main90520-38009i201107-201512
T=2.15,MARK B,TYPE C:REFER 33-01
main90520-38009i201107-201501
T=2.15,MARK B,TYPE D:REFER 33-01
main90520-38010i201107-201501
T=2.20,MARK C,TYPE D:REFER 33-01
main90520-38010i201107-201512
T=2.20,MARK C,TYPE C:REFER 33-01
main90520-38011i201107-201512
T=2.25,MARK D,TYPE C:REFER 33-01
main90520-38011i201107-201501
T=2.25,MARK D,TYPE D:REFER 33-01
main90520-38012i201107-201512
T=2.30,MARK E,TYPE C:REFER 33-01
main90520-38012i201107-201501
T=2.30,MARK E,TYPE D:REFER 33-01
main90520-38013i201107-201512
T=2.35,MARK F,TYPE C:REFER 33-01
main90520-38013i201107-201501
T=2.35,MARK F,TYPE D:REFER 33-01
main90520-38014i201107-201512
T=2.40,MARK G,TYPE C:REFER 33-01
main90520-38014i201107-201501
T=2.40,MARK G,TYPE D:REFER 33-01
main90520-T0049i201107-201504
T=2.10,MARK A,TYPE B:REFER 33-01
main90520-T0050i201107-201504
T=2.15,MARK B,TYPE B:REFER 33-01
main90520-T0051i201107-201504
T=2.20,MARK C,TYPE B:REFER 33-01
main90520-T0052i201107-201504
T=2.25,MARK D,TYPE B:REFER 33-01
main90520-T0053i201107-201504
T=2.30,MARK E,TYPE B:REFER 33-01
main90520-T0054i201107-201504
T=2.35,MARK F,TYPE B:REFER 33-01
main90520-T0055i201107-201504
T=2.40,MARK G,TYPE B:REFER 33-01
main90520-T0239i201502-201512
T=2.10,MARK A,TYPE D:REFER 33-01
main90520-T0240i201502-201512
T=2.15,MARK B,TYPE D:REFER 33-01
main90520-T0241i201502-201512
T=2.20,MARK C,TYPE D:REFER 33-01
main90520-T0242i201502-201512
T=2.25,MARK D,TYPE D:REFER 33-01
main90520-T0243i201502-201512
T=2.30,MARK E,TYPE D:REFER 33-01
main90520-T0244i201502-201512
T=2.35,MARK F,TYPE D:REFER 33-01
main90520-T0245i201502-201512
T=2.40,MARK G,TYPE D:REFER 33-01
33311DBEARING, INPUT SHAFT
main90364-T0014i201107-201512
TYPE C:REFER 33-01
main90364-T0019i201107-201504
TYPE B:REFER 33-01
main90364-T0024i201107-201512
TYPE D:REFER 33-01
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
main90520-T0037i201107-201512
TYPE C:REFER 33-01
sub90520-T0284
main90520-T0038i201107-201512
TYPE D:REFER 33-01
sub90520-T0285
main90520-T0040i201107-201504
TYPE B:REFER 33-01
33318PIECE, GEAR SPLINE, NO.5
main33318-0K010i201107-201510
TYPE C:REFER 33-01
sub33318-0K060
main33318-0K030i201107-201504
TYPE B:REFER 33-01
main33318-0K040i201107-201512
TYPE D:REFER 33-01
main33318-0K060i201511-201512
TYPE C:REFER 33-01
sub33318-0K040
33321SHAFT, OUTPUT
main33321-0K010i201107-201312
TYPE C:REFER 33-01
sub33321-0K130
main33321-0K020i201107-201312
TYPE C:REFER 33-01
sub33321-0K120
main33321-0K040i201107-201402
TYPE B:REFER 33-01
sub33321-0K041
main33321-0K041i201402-201504
TYPE B:REFER 33-01
main33321-0K050i201107-201402
TYPE B:REFER 33-01
sub33321-0K051
main33321-0K051i201402-201504
TYPE B:REFER 33-01
main33321-0K060i201107-201512
TYPE D:REFER 33-01
sub33321-0K061
main33321-0K070i201107-201512
TYPE D:REFER 33-01
sub33321-0K071
main33321-0K120i201312-201512
TYPE C:REFER 33-01
sub33321-0K121
main33321-0K130i201312-201503
TYPE C:REFER 33-01
sub33321-0K131
33321ABEARING (FOR OUTPUT SHAFT REAR)
main90363-T0012i201107-201405
TYPE D:REFER 33-01
sub90363-T0049
main90363-T0012i201107-201509
TYPE C:REFER 33-01
sub90363-T0049
main90363-T0020i201107-201504
TYPE B:REFER 33-01
main90363-T0032i201405-201512
TYPE D:REFER 33-01
main90363-T0049i201510-201512
TYPE C:REFER 33-01
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
main90520-28031i201107-201501
T=2.65,MARK A,TYPE D:REFER 33-01
main90520-28031i201107-201512
T=2.65,MARK A,TYPE C:REFER 33-01
main90520-28032i201107-201501
T=2.70,MARK B,TYPE D:REFER 33-01
main90520-28032i201107-201512
T=2.70,MARK B,TYPE C:REFER 33-01
main90520-28033i201107-201512
T=2.75,MARK C,TYPE C:REFER 33-01
main90520-28033i201107-201501
T=2.75,MARK C,TYPE D:REFER 33-01
main90520-28034i201107-201512
T=2.80,MARK D,TYPE C:REFER 33-01
main90520-28034i201107-201501
T=2.80,MARK D,TYPE D:REFER 33-01
main90520-28035i201107-201501
T=2.85,MARK E,TYPE D:REFER 33-01
main90520-28035i201107-201512
T=2.85,MARK E,TYPE C:REFER 33-01
main90520-28037i201107-201501
T=2.90,MARK F,TYPE D:REFER 33-01
main90520-28037i201107-201512
T=2.90,MARK F,TYPE C:REFER 33-01
main90520-28039i201107-201512
T=2.95,MARK G,TYPE C:REFER 33-01
main90520-28039i201107-201501
T=2.95,MARK G,TYPE D:REFER 33-01
main90520-28042i201107-201501
T=3.00,MARK H,TYPE D:REFER 33-01
main90520-28042i201107-201512
T=3.00,MARK H,TYPE C:REFER 33-01
main90520-28043i201107-201501
T=3.05,MARK J,TYPE D:REFER 33-01
main90520-28043i201107-201512
T=3.05,MARK J,TYPE C:REFER 33-01
main90520-28045i201107-201512
T=3.10,MARK K,TYPE C:REFER 33-01
main90520-28045i201107-201501
T=3.10,MARK K,TYPE D:REFER 33-01
main90520-28046i201107-201512
T=3.15,MARK L,TYPE C:REFER 33-01
main90520-28046i201107-201501
T=3.15,MARK L,TYPE D:REFER 33-01
main90520-28047i201107-201501
T=3.20,MARK M,TYPE D:REFER 33-01
main90520-28047i201107-201512
T=3.20,MARK M,TYPE C:REFER 33-01
main90520-28048i201107-201501
T=3.25,MARK N,TYPE D:REFER 33-01
main90520-28048i201107-201512
T=3.25,MARK N,TYPE C:REFER 33-01
main90520-28049i201107-201501
T=3.30,MARK P,TYPE D:REFER 33-01
main90520-28049i201107-201512
T=3.30,MARK P,TYPE C:REFER 33-01
main90520-28050i201107-201512
T=3.35,MARK Q,TYPE C:REFER 33-01
main90520-28050i201107-201501
T=3.35,MARK Q,TYPE D:REFER 33-01
main90520-28051i201107-201512
T=3.40,MARK R,TYPE C:REFER 33-01
main90520-28051i201107-201501
T=3.40,MARK R,TYPE D:REFER 33-01
main90520-28052i201107-201501
T=3.45,MARK S,TYPE D:REFER 33-01
main90520-28052i201107-201512
T=3.45,MARK S,TYPE C:REFER 33-01
main90520-T0110i201107-201504
T=2.65,MARK A,TYPE B:REFER 33-01
main90520-T0111i201107-201504
T=2.70,MARK B,TYPE B:REFER 33-01
main90520-T0112i201107-201504
T=2.75,MARK C,TYPE B:REFER 33-01
main90520-T0113i201107-201504
T=2.80,MARK D,TYPE B:REFER 33-01
main90520-T0114i201107-201504
T=2.85,MARK E,TYPE B:REFER 33-01
main90520-T0115i201107-201504
T=2.90,MARK F,TYPE B:REFER 33-01
main90520-T0116i201107-201504
T=2.95,MARK G,TYPE B:REFER 33-01
main90520-T0117i201107-201504
T=3.00,MARK H,TYPE B:REFER 33-01
main90520-T0118i201107-201504
T=3.05,MARK J,TYPE B:REFER 33-01
main90520-T0119i201107-201504
T=3.10,MARK K,TYPE B:REFER 33-01
main90520-T0120i201107-201504
T=3.15,MARK L,TYPE B:REFER 33-01
main90520-T0121i201107-201504
T=3.20,MARK M,TYPE B:REFER 33-01
main90520-T0122i201107-201504
T=3.25,MARK N,TYPE B:REFER 33-01
main90520-T0123i201107-201504
T=3.30,MARK P,TYPE B:REFER 33-01
main90520-T0124i201107-201504
T=3.35,MARK Q,TYPE B:REFER 33-01
main90520-T0125i201107-201504
T=3.40,MARK R,TYPE B:REFER 33-01
main90520-T0126i201107-201504
T=3.45,MARK S,TYPE B:REFER 33-01
main90520-T0252i201502-201512
T=2.65,MARK A,TYPE D:REFER 33-01
main90520-T0253i201502-201512
T=2.70,MARK B,TYPE D:REFER 33-01
main90520-T0254i201502-201512
T=2.75,MARK C,TYPE D:REFER 33-01
main90520-T0255i201502-201512
T=2.80,MARK D,TYPE D:REFER 33-01
main90520-T0256i201502-201512
T=2.85,MARK E,TYPE D:REFER 33-01
main90520-T0257i201502-201512
T=2.90,MARK F,TYPE D:REFER 33-01
main90520-T0258i201502-201512
T=2.95,MARK G,TYPE D:REFER 33-01
main90520-T0259i201502-201512
T=3.00,MARK H,TYPE D:REFER 33-01
main90520-T0260i201502-201512
T=3.05,MARK J,TYPE D:REFER 33-01
main90520-T0261i201502-201512
T=3.10,MARK K,TYPE D:REFER 33-01
main90520-T0262i201502-201512
T=3.15,MARK L,TYPE D:REFER 33-01
main90520-T0263i201502-201512
T=3.20,MARK M,TYPE D:REFER 33-01
main90520-T0264i201502-201512
T=3.25,MARK N,TYPE D:REFER 33-01
main90520-T0265i201502-201512
T=3.30,MARK P,TYPE D:REFER 33-01
main90520-T0266i201502-201512
T=3.35,MARK Q,TYPE D:REFER 33-01
main90520-T0267i201502-201512
T=3.40,MARK R,TYPE D:REFER 33-01
main90520-T0268i201502-201512
T=3.45,MARK S,TYPE D:REFER 33-01
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
main90520-88001i201107-201512
T=2.36-2.46,TYPE D:REFER 33-01
main90520-T0038i201107-201512
T=1.7,TYPE C:REFER 33-01
sub90520-T0285
main90520-T0041i201107-201504
T=2.41,TYPE B:REFER 33-01
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
main90520-30014i201107-201512
T=1.80,MARK A,TYPE C:REFER 33-01
main90520-30014i201107-201501
T=1.80,MARK A,TYPE D:REFER 33-01
main90520-30015i201107-201501
T=1.85,MARK B,TYPE D:REFER 33-01
main90520-30015i201107-201512
T=1.85,MARK B,TYPE C:REFER 33-01
main90520-30016i201107-201501
T=1.90,MARK C,TYPE D:REFER 33-01
main90520-30016i201107-201512
T=1.90,MARK C,TYPE C:REFER 33-01
main90520-30017i201107-201512
T=1.95,MARK D,TYPE C:REFER 33-01
main90520-30017i201107-201501
T=1.95,MARK D,TYPE D:REFER 33-01
main90520-30018i201107-201512
T=2.00,MARK E,TYPE C:REFER 33-01
main90520-30018i201107-201501
T=2.00,MARK E,TYPE D:REFER 33-01
main90520-30019i201107-201512
T=2.05,MARK F,TYPE C:REFER 33-01
main90520-30019i201107-201501
T=2.05,MARK F,TYPE D:REFER 33-01
main90520-30020i201107-201512
T=2.10,MARK G,TYPE C:REFER 33-01
main90520-30020i201107-201501
T=2.10,MARK G,TYPE D:REFER 33-01
main90520-T0063i201107-201504
T=1.80,MARK A,TYPE B:REFER 33-01
main90520-T0064i201107-201504
T=1.85,MARK B,TYPE B:REFER 33-01
main90520-T0065i201107-201504
T=1.90,MARK C,TYPE B:REFER 33-01
main90520-T0066i201107-201504
T=1.95,MARK D,TYPE B:REFER 33-01
main90520-T0067i201107-201504
T=2.00,MARK E,TYPE B:REFER 33-01
main90520-T0068i201107-201504
T=2.05,MARK F,TYPE B:REFER 33-01
main90520-T0069i201107-201504
T=2.10,MARK G,TYPE B:REFER 33-01
main90520-T0276i201502-201512
T=1.80,MARK A,TYPE D:REFER 33-01
main90520-T0277i201502-201512
T=1.85,MARK B,TYPE D:REFER 33-01
main90520-T0278i201502-201512
T=1.90,MARK C,TYPE D:REFER 33-01
main90520-T0279i201502-201512
T=1.95,MARK D,TYPE D:REFER 33-01
main90520-T0280i201502-201512
T=2.00,MARK E,TYPE D:REFER 33-01
main90520-T0281i201502-201512
T=2.05,MARK F,TYPE D:REFER 33-01
main90520-T0282i201502-201512
T=2.10,MARK G,TYPE D:REFER 33-01
33321MRING, SHAFT SNAP (FOR BEARING)
main90520-36007i201107-201512
T=2.30,MARK A,TYPE C:REFER 33-01
main90520-36007i201107-201501
T=2.30,MARK A,TYPE D:REFER 33-01
main90520-36008i201107-201512
T=2.35,MARK B,TYPE C:REFER 33-01
main90520-36008i201107-201501
T=2.35,MARK B,TYPE D:REFER 33-01
main90520-36009i201107-201501
T=2.40,MARK C,TYPE D:REFER 33-01
main90520-36009i201107-201512
T=2.40,MARK C,TYPE C:REFER 33-01
main90520-36010i201107-201501
T=2.45,MARK D,TYPE D:REFER 33-01
main90520-36010i201107-201512
T=2.45,MARK D,TYPE C:REFER 33-01
main90520-36011i201107-201512
T=2.50,MARK E,TYPE C:REFER 33-01
main90520-36011i201107-201501
T=2.50,MARK E,TYPE D:REFER 33-01
main90520-36012i201107-201512
T=2.55,MARK F,TYPE C:REFER 33-01
main90520-36012i201107-201501
T=2.55,MARK F,TYPE D:REFER 33-01
main90520-36013i201107-201512
T=2.60,MARK G,TYPE C:REFER 33-01
main90520-36013i201107-201501
T=2.60,MARK G,TYPE D:REFER 33-01
main90520-T0103i201107-201504
T=2.30,MARK A,TYPE B:REFER 33-01
main90520-T0104i201107-201504
T=2.35,MARK B,TYPE B:REFER 33-01
main90520-T0105i201107-201504
T=2.40,MARK C,TYPE B:REFER 33-01
main90520-T0106i201107-201504
T=2.45,MARK D,TYPE B:REFER 33-01
main90520-T0107i201107-201504
T=2.50,MARK E,TYPE B:REFER 33-01
main90520-T0108i201107-201504
T=2.55,MARK F,TYPE B:REFER 33-01
main90520-T0109i201107-201504
T=2.60,MARK G,TYPE B:REFER 33-01
main90520-T0269i201502-201512
T=2.30,MARK A,TYPE D:REFER 33-01
main90520-T0270i201502-201512
T=2.35,MARK B,TYPE D:REFER 33-01
main90520-T0271i201502-201512
T=2.40,MARK C,TYPE D:REFER 33-01
main90520-T0272i201502-201512
T=2.45,MARK D,TYPE D:REFER 33-01
main90520-T0273i201502-201512
T=2.50,MARK E,TYPE D:REFER 33-01
main90520-T0274i201502-201512
T=2.55,MARK F,TYPE D:REFER 33-01
main90520-T0275i201502-201512
T=2.60,MARK G,TYPE D:REFER 33-01
33321TSPACER (FOR OUTPUT SHAFT)
main90387-T0007i201107-201512
TYPE C:REFER 33-01
main90387-T0010i201107-201512
TYPE D:REFER 33-01
main90387-T0011i201107-201504
TYPE B:REFER 33-01
33321VBEARING (FOR OUTPUT SHAFT CENTER)
main90363-T0011i201107-201312
TYPE D:REFER 33-01
sub90363-T0047
main90363-T0011i201107-201509
TYPE C:REFER 33-01
sub90363-T0047
main90363-T0022i201107-201504
TYPE B:REFER 33-01
main90363-T0031i201312-201512
TYPE D:REFER 33-01
main90363-T0047i201510-201512
TYPE C:REFER 33-01
33331GEAR, REVERSE
main33331-0K010i201107-201203
TYPE C:REFER 33-01
sub33331-09005
sub33331-09015
main33331-0K011i201203-201503
TYPE C:REFER 33-01
sub33331-0K060
main33331-0K030i201107-201208
TYPE B:REFER 33-01
sub33331-09025
sub33331-09035
main33331-0K031i201208-201504
TYPE B:REFER 33-01
main33331-0K040i201107-201512
TYPE D:REFER 33-01
main33331-0K060i201503-201512
TYPE C:REFER 33-01
sub33331-0K040
33332GEAR, 2ND
main33033-0K010i201107-201504
TYPE C:REFER 33-01
sub33033-0K070
main33033-0K030i201107-201504
TYPE B:REFER 33-01
main33033-0K050i201107-201512
TYPE D:REFER 33-01
main33033-0K070i201504-201512
TYPE C:REFER 33-01
sub33033-0K050
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
main90364-T0011i201107-201512
TYPE C:REFER 33-01
main90364-T0020i201107-201504
TYPE B:REFER 33-01
main90364-T0026i201107-201512
TYPE D:REFER 33-01
33333GEAR, 3RD
main33034-0K010i201107-201503
TYPE C:REFER 33-01
sub33034-0K130
main33034-0K040i201107-201504
TYPE B:REFER 33-01
main33034-0K050i201107-201505
TYPE D:REFER 33-01
sub33034-0K040
main33034-0K060i201503-201506
TYPE C:REFER 33-01
sub33034-0K110
main33034-0K080i201505-201512
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-205R16C 6J,TYPE D:REFER 33-01
main33034-0K080i201505-201512
MOROCCO SPEC&TIRE & DISC WHEEL-205R16C 6J,TYPE D:REFER 33-01
main33034-0K080i201505-201512
TYPE D:REFER 33-01
main33034-0K080i201505-201512
RUSSIA & UKRAINE SPEC,TYPE D:REFER 33-01
main33034-0K080i201505-201512
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE D:REFER 33-01
main33034-0K080i201505-201512
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE D:REFER 33-01
main33034-0K080i201505-201512
MOROCCO SPEC&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE D:REFER 33-01
main33034-0K080i201505-201512
MOROCCO SPEC&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE D:REFER 33-01
main33034-0K110i201507-201512
TYPE C:REFER 33-01
sub33034-0K080
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
main90364-T0012i201107-201512
TYPE C:REFER 33-01
main90364-T0022i201107-201504
TYPE B:REFER 33-01
main90364-T0027i201107-201512
TYPE D:REFER 33-01
33335GEAR, 1ST
main33032-0K020i201107-201210
TYPE C:REFER 33-01
sub33032-0K021
main33032-0K021i201210-201512
TYPE C:REFER 33-01
sub33032-0K100
main33032-0K040i201107-201302
TYPE B:REFER 33-01
sub33032-0K041
main33032-0K041i201302-201504
TYPE B:REFER 33-01
main33032-0K070i201107-201210
TYPE D:REFER 33-01
sub33032-0K071
main33032-0K071i201210-201512
TYPE D:REFER 33-01
33335BSPACER(FOR 1ST GEAR BEARING)
main90560-39002i201107-201512
TYPE D:REFER 33-01,TYPE C:REFER 33-01
main90560-39002i201107-201504
TYPE B:SEE 33-01,(J)
main90560-T0010i201304-201504
TYPE B:SEE 33-01,(L)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
main90364-T0010i201107-201512
TYPE C:REFER 33-01
main90364-T0021i201107-201504
TYPE B:REFER 33-01
main90364-T0025i201107-201512
TYPE D:REFER 33-01
33336GEAR, 5TH
main33336-0K010i201210-201405
MOROCCO SPEC,TYPE C:REFER 33-01
sub33336-0K011
main33336-0K010i201310-201405
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE C:REFER 33-01
sub33336-0K011
main33336-0K010i201107-201405
RUSSIA & UKRAINE SPEC,TYPE C:REFER 33-01
sub33336-0K011
main33336-0K010i201108-201405
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE C:REFER 33-01
sub33336-0K011
main33336-0K011i201405-201410
RUSSIA & UKRAINE SPEC,TYPE C:REFER 33-01
sub33336-0K012
main33336-0K011i201405-201410
MOROCCO SPEC,TYPE C:REFER 33-01
sub33336-0K012
main33336-0K011i201405-201410
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE C:REFER 33-01
sub33336-0K012
main33336-0K011i201405-201410
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE C:REFER 33-01
sub33336-0K012
main33336-0K011i201408-201410
MOROCCO SPEC&TIRE & DISC WHEEL-255/70R15C 7JJ,TYPE C:REFER 33-01
sub33336-0K012
main33336-0K011i201408-201410
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-205R16C 6J,TYPE C:REFER 33-01
sub33336-0K012
main33336-0K011i201408-201410
MOROCCO SPEC&TIRE & DISC WHEEL-205R16C 6J,TYPE C:REFER 33-01
sub33336-0K012
main33336-0K012i201410-201512
RUSSIA & UKRAINE SPEC,TYPE C:REFER 33-01
sub33336-0K130
main33336-0K012i201410-201512
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE C:REFER 33-01
sub33336-0K130
main33336-0K012i201410-201512
MOROCCO SPEC&TIRE & DISC WHEEL-205R16C 6J,TYPE C:REFER 33-01
sub33336-0K130
main33336-0K012i201410-201512
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-205R16C 6J,TYPE C:REFER 33-01
sub33336-0K130
main33336-0K012i201410-201512
MOROCCO SPEC&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE C:REFER 33-01
sub33336-0K130
main33336-0K012i201410-201512
MOROCCO SPEC&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE C:REFER 33-01
sub33336-0K130
main33336-0K012i201410-201512
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE C:REFER 33-01
sub33336-0K130
main33336-0K012i201410-201504
MOROCCO SPEC&TIRE & DISC WHEEL-255/70R15C 7JJ,TYPE C:REFER 33-01
sub33336-0K130
main33336-0K020i201210-201407
MOROCCO SPEC,TYPE B:REFER 33-01
sub33336-0K110
main33336-0K020i201107-201407
RUSSIA & UKRAINE SPEC,TYPE B:REFER 33-01
sub33336-0K110
main33336-0K030i201108-201508
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE D:REFER 33-01
sub33336-0K031
main33336-0K030i201210-201410
MOROCCO SPEC,TYPE D:REFER 33-01
sub33336-0K031
main33336-0K030i201107-201508
RUSSIA & UKRAINE SPEC,TYPE D:REFER 33-01
sub33336-0K031
main33336-0K030i201310-201508
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE D:REFER 33-01
sub33336-0K031
main33336-0K030i201408-201504
MOROCCO SPEC&TIRE & DISC WHEEL-255/70R15C 7JJ,TYPE D:REFER 33-01
sub33336-0K031
main33336-0K030i201408-201508
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-205R16C 6J,TYPE D:REFER 33-01
sub33336-0K031
main33336-0K030i201408-201508
MOROCCO SPEC&TIRE & DISC WHEEL-205R16C 6J,TYPE D:REFER 33-01
sub33336-0K031
main33336-0K030i201410-201508
MOROCCO SPEC&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE D:REFER 33-01
sub33336-0K031
main33336-0K030i201410-201508
MOROCCO SPEC&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE D:REFER 33-01
sub33336-0K031
main33336-0K031i201508-201512
MOROCCO SPEC&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE D:REFER 33-01
sub33336-0K032
main33336-0K031i201508-201512
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-205R16C 6J,TYPE D:REFER 33-01
sub33336-0K032
main33336-0K031i201508-201512
MOROCCO SPEC&TIRE & DISC WHEEL-205R16C 6J,TYPE D:REFER 33-01
sub33336-0K032
main33336-0K031i201508-201512
RUSSIA & UKRAINE SPEC,TYPE D:REFER 33-01
sub33336-0K032
main33336-0K031i201508-201512
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE D:REFER 33-01
sub33336-0K032
main33336-0K031i201508-201512
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE D:REFER 33-01
sub33336-0K032
main33336-0K031i201508-201512
MOROCCO SPEC&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE D:REFER 33-01
sub33336-0K032
main33336-0K040i201107-201503
TYPE C:REFER 33-01
main33336-0K050i201107-201407
TYPE B:REFER 33-01
sub33336-0K051
sub33336-0K120
main33336-0K060i201107-201507
TYPE D:REFER 33-01
sub33336-0K061
main33336-0K061i201508-201512
TYPE D:REFER 33-01
sub33336-0K062
main33336-0K110i201408-201504
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 33-01
main33336-0K110i201408-201504
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-205R16C 6J,TYPE B:REFER 33-01
main33336-0K110i201408-201504
MOROCCO SPEC&TIRE & DISC WHEEL-255/70R15C 7JJ,TYPE B:REFER 33-01
main33336-0K110i201408-201504
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 33-01
main33336-0K110i201408-201504
MOROCCO SPEC&TIRE & DISC WHEEL-205R16C 6J,TYPE B:REFER 33-01
main33336-0K110i201407-201504
RUSSIA & UKRAINE SPEC,TYPE B:REFER 33-01
main33336-0K110i201407-201408
MOROCCO SPEC,TYPE B:REFER 33-01
main33336-0K120i201407-201504
TYPE B:REFER 33-01
33348WASHER, 1ST GEAR THRUST
main33348-0K010i201107-201504
TYPE B:REFER 33-01
main33348-0K020i201107-201512
TYPE D:REFER 33-01
sub33348-0K040
main33348-0K030i201107-201512
TYPE C:REFER 33-01
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
main90250-05026i201107-201512
TYPE D:REFER 33-01,TYPE C:REFER 33-01
main90250-T0021i201107-201504
TYPE B:REFER 33-01
33349WASHER, 5TH GEAR THRUST
main33346-0K020i201107-201504
TYPE B:SEE 33-01,(L)
main33346-0K020i201107-201512
TYPE D:REFER 33-01,TYPE C:REFER 33-01
main33346-71010i201107-201504
TYPE B:SEE 33-01,(J)
33349CPIN (FOR 5TH GEAR THRUST WASHER)
main90250-05026i201107-201512
TYPE D:REFER 33-01,TYPE C:REFER 33-01
main90250-05026i201107-201504
TYPE B:REFER 33-01
33361HUB, TRANSMISSION CLUTCH, NO.1
main33361-0K020i201107-201203
TYPE C:REFER 33-01
sub33361-0K021
main33361-0K021i201203-201512
TYPE C:REFER 33-01
sub33361-0K090
main33361-0K030i201107-201208
TYPE B:REFER 33-01
sub33361-0K031
main33361-0K031i201208-201504
TYPE B:REFER 33-01
main33361-0K050i201107-201512
TYPE D:REFER 33-01
33362HUB, TRANSMISSION CLUTCH, NO.2
main33362-0K020i201107-201406
TYPE D:REFER 33-01
sub33362-0K050
main33362-0K020i201107-201402
TYPE C:REFER 33-01
sub33362-0K050
main33362-0K030i201107-201504
TYPE B:REFER 33-01
sub33362-0K031
main33362-0K050i201407-201512
TYPE D:REFER 33-01
main33362-0K050i201402-201512
TYPE C:REFER 33-01
33364SLEEVE, TRANSMISSION HUB, NO.2
main33364-0K010i201107-201503
TYPE C:REFER 33-01
sub33364-0K060
main33364-0K020i201107-201504
TYPE B:REFER 33-01
main33364-0K030i201107-201512
TYPE D:REFER 33-01
main33364-0K060i201503-201512
TYPE C:REFER 33-01
sub33364-0K030
33365KEY, SYNCHROMESH SHIFTING, NO.1
main33365-0K010i201107-201504
TYPE B:REFER 33-01
main33365-0K020i201107-201512
TYPE C:REFER 33-01
main33365-35060i201107-201512
TYPE D:REFER 33-01
33365ASPRING, COMPRESSION
main90501-08212i201107-201512
TYPE D:REFER 33-01
main90501-08212i201107-201503
TYPE C:REFER 33-01
main90501-T0023i201107-201504
TYPE B:REFER 33-01
main90501-T0051i201503-201512
TYPE C:REFER 33-01
33366KEY, SYNCHROMESH SHIFTING, NO.2
main33365-30060i201503-201512
TYPE D:REFER 33-01,TYPE C:REFER 33-01
main33366-0K010i201107-201504
TYPE B:REFER 33-01
main33366-0K020i201107-201503
TYPE C:REFER 33-01
main33366-35050i201107-201503
TYPE D:REFER 33-01
33366DSPRING, COMPRESSION
main90501-08212i201107-201512
TYPE D:REFER 33-01
main90501-08212i201107-201503
TYPE C:REFER 33-01
main90501-T0023i201107-201504
TYPE B:REFER 33-01
main90501-T0051i201503-201512
TYPE C:REFER 33-01
33368GRING, SYNCHRONIZER (FOR 3RD GEAR)
main33038-0K050i201503-201512
TYPE C:REFER 33-01
sub33038-0K070
main33038-0K070i201503-201512
TYPE D:REFER 33-01
main33368-0K010i201107-201503
TYPE C:REFER 33-01
main33368-0K030i201107-201503
TYPE D:REFER 33-01
main33368-0K050i201107-201504
TYPE B:REFER 33-01
33368HRING, SYNCHRONIZER (FOR 4TH GEAR)
main33368-0K020i201107-201512
TYPE C:REFER 33-01
sub33368-0K220
main33368-0K040i201107-201512
TYPE D:REFER 33-01
main33368-0K060i201107-201504
TYPE B:REFER 33-01
sub33368-35090
33384ARING, SYNCHRONIZER, OUTER NO.3
main33384-0K010i201405-201512
TYPE C:REFER 33-01
sub33384-0K011
main33384-0K020i201406-201504
TYPE B:REFER 33-01
sub33384-0K021
main33384-0K030i201503-201512
TYPE D:REFER 33-01
sub33384-0K031
main33384-60090i201107-201503
TYPE D:REFER 33-01
sub33384-60091
main33384-60090i201107-201404
TYPE C:REFER 33-01
sub33384-60091
main33384-60090i201107-201405
TYPE B:REFER 33-01
sub33384-60091
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
main33392-0K010i201312-201512
T/P C:SEE 33-01,NO.2
main33392-60020i201107-201206
T/P D:SEE 33-01,NO.1
main33392-60020i201107-201201
T/P C:SEE 33-01,NO.1
main33392-60020i201107-201504
T/P B:SEE 33-01,NO.1
main33392-60030i201107-201504
T/P B:SEE 33-01,NO.2
main33392-60030i201107-201201
T/P C:SEE 33-01,NO.2
main33392-60030i201107-201206
T/P D:SEE 33-01,NO.2
main33392-60040i201206-201512
T/P D:SEE 33-01,NO.2
main33392-60040i201201-201312
T/P C:SEE 33-01,NO.2
33394BKEY, SYNCHROMESH SHIFTING, NO.3
main33394-0K010i201312-201512
TYPE C:REFER 33-01
main33394-0K020i201509-201512
TYPE D:REFER 33-01
main33394-60020i201107-201508
TYPE D:REFER 33-01
main33394-60020i201107-201312
TYPE C:REFER 33-01
main33394-60020i201107-201504
TYPE B:REFER 33-01
33395SLEEVE, TRANSMISSION HUB, NO.3
main33395-0K010i201107-201503
TYPE C:REFER 33-01
sub33395-0K060
main33395-0K040i201107-201504
TYPE B:REFER 33-01
main33395-0K050i201107-201512
TYPE D:REFER 33-01
main33395-0K060i201503-201512
TYPE C:REFER 33-01
sub33395-0K050
33402GEAR SUB-ASSY, REVERSE IDLER
main33402-0K010i201107-201405
TYPE C:REFER 33-01
sub33402-0K050
main33402-0K030i201107-201211
TYPE B:REFER 33-01
sub33402-0K070
main33402-0K040i201107-201405
TYPE D:REFER 33-01
sub33402-0K060
main33402-0K050i201405-201512
TYPE C:REFER 33-01
sub33402-0K060
main33402-0K060i201405-201512
TYPE D:REFER 33-01
main33402-0K070i201211-201504
TYPE B:REFER 33-01
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
main90365-T0004i201107-201504
TYPE B:REFER 33-01
main90365-T0006i201107-201512
TYPE D:REFER 33-01,TYPE C:REFER 33-01
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
main90520-56002i201107-201512
T=1.07,OD=62,TYPE D:REFER 33-01,TYPE C:REFER 33-01
main90520-T0087i201107-201504
T=1.07,OD=62,TYPE B:REFER 33-01
33411PBEARING, COUNTERSHAFT CENTER
main90365-T0003i201107-201504
TYPE B:REFER 33-01
main90365-T0007i201107-201512
TYPE D:REFER 33-01,TYPE C:REFER 33-01
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
main90520-23057i201107-201512
T=2.10,MARK A,TYPE C:REFER 33-01
main90520-23057i201107-201501
T=2.10,MARK A,TYPE D:REFER 33-01
main90520-23058i201107-201501
T=2.15,MARK B,TYPE D:REFER 33-01
main90520-23058i201107-201512
T=2.15,MARK B,TYPE C:REFER 33-01
main90520-23059i201107-201501
T=2.20,MARK C,TYPE D:REFER 33-01
main90520-23059i201107-201512
T=2.20,MARK C,TYPE C:REFER 33-01
main90520-23060i201107-201501
T=2.25,MARK D,TYPE D:REFER 33-01
main90520-23060i201107-201512
T=2.25,MARK D,TYPE C:REFER 33-01
main90520-23061i201107-201501
T=2.30,MARK E,TYPE D:REFER 33-01
main90520-23061i201107-201512
T=2.30,MARK E,TYPE C:REFER 33-01
main90520-23062i201107-201512
T=2.35,MARK F,TYPE C:REFER 33-01
main90520-23062i201107-201501
T=2.35,MARK F,TYPE D:REFER 33-01
main90520-T0097i201107-201504
T=2.10,MARK A,TYPE B:REFER 33-01
main90520-T0098i201107-201504
T=2.15,MARK B,TYPE B:REFER 33-01
main90520-T0099i201107-201504
T=2.20,MARK C,TYPE B:REFER 33-01
main90520-T0100i201107-201504
T=2.25,MARK D,TYPE B:REFER 33-01
main90520-T0101i201107-201504
T=2.30,MARK E,TYPE B:REFER 33-01
main90520-T0102i201107-201504
T=2.35,MARK F,TYPE B:REFER 33-01
main90520-T0246i201502-201512
T=2.10,MARK A,TYPE D:REFER 33-01
main90520-T0247i201502-201512
T=2.15,MARK B,TYPE D:REFER 33-01
main90520-T0248i201502-201512
T=2.20,MARK C,TYPE D:REFER 33-01
main90520-T0249i201502-201512
T=2.25,MARK D,TYPE D:REFER 33-01
main90520-T0250i201502-201512
T=2.30,MARK E,TYPE D:REFER 33-01
main90520-T0251i201502-201512
T=2.35,MARK F,TYPE D:REFER 33-01
33421GEAR, COUNTER
main33421-0K012i201107-201308
TYPE C:REFER 33-01
sub33421-0K013
main33421-0K013i201308-201512
TYPE C:REFER 33-01
sub33421-0K160
main33421-0K060i201107-201306
TYPE B:REFER 33-01
sub33421-0K061
main33421-0K061i201306-201407
TYPE B:REFER 33-01
sub33421-0K140
main33421-0K080i201107-201306
TYPE D:REFER 33-01
sub33421-0K081
main33421-0K081i201306-201512
TYPE D:REFER 33-01
sub33421-0K082
main33421-0K140i201407-201504
TYPE B:REFER 33-01
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
main90520-22016i201107-201512
T=2.85,MARK A,T/P D:SEE 33-01,NO.1,T/P C:SEE 33-01,NO.1
main90520-22017i201107-201512
T=2.90,MARK B,T/P D:SEE 33-01,NO.1,T/P C:SEE 33-01,NO.1
main90520-22018i201107-201512
T=2.95,MARK C,T/P D:SEE 33-01,NO.1,T/P C:SEE 33-01,NO.1
main90520-22019i201107-201512
T=3.00,MARK D,T/P D:SEE 33-01,NO.1,T/P C:SEE 33-01,NO.1
main90520-22020i201107-201512
T=3.05,MARK E,T/P D:SEE 33-01,NO.1,T/P C:SEE 33-01,NO.1
main90520-22021i201107-201512
T=3.10,MARK F,T/P D:SEE 33-01,NO.1,T/P C:SEE 33-01,NO.1
main90520-22022i201107-201512
T=3.15,MARK G,T/P D:SEE 33-01,NO.1,T/P C:SEE 33-01,NO.1
main90520-33021i201107-201504
T=1.00,T/P B:SEE 33-01,NO.2
main90520-33021i201107-201512
T=1.00,T/P C:SEE 33-01,NO.2,T/P D:SEE 33-01,NO.2
main90520-T0127i201107-201504
T=2.85,MARK A,T/P B:SEE 33-01,NO.1
main90520-T0128i201107-201504
T=2.90,MARK B,T/P B:SEE 33-01,NO.1
main90520-T0129i201107-201504
T=2.95,MARK C,T/P B:SEE 33-01,NO.1
main90520-T0130i201107-201504
T=3.00,MARK D,T/P B:SEE 33-01,NO.1
main90520-T0131i201107-201504
T=3.05,MARK E,T/P B:SEE 33-01,NO.1
main90520-T0132i201107-201504
T=3.10,MARK F,T/P B:SEE 33-01,NO.1
main90520-T0133i201107-201504
T=3.15,MARK G,T/P B:SEE 33-01,NO.1
33428GEAR, COUNTERSHAFT 5TH
main33428-0K010i201108-201308
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE C:REFER 33-01
sub33428-0K011
main33428-0K010i201107-201308
RUSSIA & UKRAINE SPEC,TYPE C:REFER 33-01
sub33428-0K011
main33428-0K010i201210-201308
MOROCCO SPEC,TYPE C:REFER 33-01
sub33428-0K011
main33428-0K011i201308-201512
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE C:REFER 33-01
sub33428-0K012
main33428-0K011i201408-201512
MOROCCO SPEC&TIRE & DISC WHEEL-205R16C 6J,TYPE C:REFER 33-01
sub33428-0K012
main33428-0K011i201408-201512
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-205R16C 6J,TYPE C:REFER 33-01
sub33428-0K012
main33428-0K011i201410-201512
MOROCCO SPEC&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE C:REFER 33-01
sub33428-0K012
main33428-0K011i201410-201512
MOROCCO SPEC&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE C:REFER 33-01
sub33428-0K012
main33428-0K011i201310-201512
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE C:REFER 33-01
sub33428-0K012
main33428-0K011i201308-201512
RUSSIA & UKRAINE SPEC,TYPE C:REFER 33-01
sub33428-0K012
main33428-0K011i201308-201410
MOROCCO SPEC,TYPE C:REFER 33-01
sub33428-0K012
main33428-0K011i201408-201504
MOROCCO SPEC&TIRE & DISC WHEEL-255/70R15C 7JJ,TYPE C:REFER 33-01
sub33428-0K012
main33428-0K050i201210-201306
MOROCCO SPEC,TYPE B:REFER 33-01
sub33428-0K051
main33428-0K050i201107-201306
RUSSIA & UKRAINE SPEC,TYPE B:REFER 33-01
sub33428-0K051
main33428-0K051i201306-201407
RUSSIA & UKRAINE SPEC,TYPE B:REFER 33-01
sub33428-0K100
main33428-0K051i201306-201407
MOROCCO SPEC,TYPE B:REFER 33-01
sub33428-0K100
main33428-0K060i201108-201306
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE D:REFER 33-01
sub33428-0K061
main33428-0K060i201107-201306
RUSSIA & UKRAINE SPEC,TYPE D:REFER 33-01
sub33428-0K061
main33428-0K060i201210-201306
MOROCCO SPEC,TYPE D:REFER 33-01
sub33428-0K061
main33428-0K061i201306-201512
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE D:REFER 33-01
sub33428-0K062
main33428-0K061i201408-201512
MOROCCO SPEC&TIRE & DISC WHEEL-205R16C 6J,TYPE D:REFER 33-01
sub33428-0K062
main33428-0K061i201408-201512
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-205R16C 6J,TYPE D:REFER 33-01
sub33428-0K062
main33428-0K061i201310-201512
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE D:REFER 33-01
sub33428-0K062
main33428-0K061i201306-201512
RUSSIA & UKRAINE SPEC,TYPE D:REFER 33-01
sub33428-0K062
main33428-0K061i201410-201512
MOROCCO SPEC&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE D:REFER 33-01
sub33428-0K062
main33428-0K061i201410-201512
MOROCCO SPEC&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE D:REFER 33-01
sub33428-0K062
main33428-0K061i201408-201504
MOROCCO SPEC&TIRE & DISC WHEEL-255/70R15C 7JJ,TYPE D:REFER 33-01
sub33428-0K062
main33428-0K061i201306-201410
MOROCCO SPEC,TYPE D:REFER 33-01
sub33428-0K062
main33428-0K070i201107-201308
TYPE C:REFER 33-01
sub33428-0K071
main33428-0K071i201308-201512
TYPE C:REFER 33-01
main33428-0K080i201107-201306
TYPE B:REFER 33-01
sub33428-0K081
main33428-0K081i201306-201407
TYPE B:REFER 33-01
main33428-0K090i201107-201306
TYPE D:REFER 33-01
sub33428-0K091
main33428-0K091i201306-201512
TYPE D:REFER 33-01
sub33428-0K092
main33428-0K100i201408-201504
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J,TYPE B:REFER 33-01
main33428-0K100i201408-201504
MOROCCO SPEC&TIRE & DISC WHEEL-255/70R15C 7JJ,TYPE B:REFER 33-01
main33428-0K100i201408-201504
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE B:REFER 33-01
main33428-0K100i201408-201504
MOROCCO SPEC&TIRE & DISC WHEEL-205R16C 6J,TYPE B:REFER 33-01
main33428-0K100i201408-201504
RUSSIA & UKRAINE SPEC&TIRE & DISC WHEEL-205R16C 6J,TYPE B:REFER 33-01
main33428-0K100i201407-201504
RUSSIA & UKRAINE SPEC,TYPE B:REFER 33-01
main33428-0K100i201407-201408
MOROCCO SPEC,TYPE B:REFER 33-01
main33428-0K110i201407-201504
TYPE B:REFER 33-01
33428BBEARING (FOR COUNTER 5TH GEAR)
main90364-T0013i201107-201512
TYPE C:REFER 33-01
main90364-T0023i201107-201504
TYPE B:REFER 33-01
main90364-T0028i201107-201512
TYPE D:REFER 33-01
33451SHAFT, REVERSE IDLER GEAR
main33451-0K010i201107-201512
TYPE C:REFER 33-01
main33451-0K030i201107-201504
TYPE B:REFER 33-01
main33451-0K040i201107-201512
TYPE D:REFER 33-01
33481GEAR, SPEEDOMETER DRIVE (MTM)
main33481-0K010i201504-201512
N=11,MARK 11X28-30,TYPE C:REFER 33-01
main33481-35070i201107-201512
N=11,MARK 11X28-30,TYPE D:REFER 33-01
main33481-35070i201107-201503
N=11,MARK 11X28-30,TYPE C:REFER 33-01
main33481-35070i201107-201504
N=11,MARK 11X28-30,TYPE B:REFER 33-01
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
main90520-28030i201107-201512
T=1.5,TYPE C:REFER 33-01
main90520-28030i201107-201501
T=1.5,TYPE D:REFER 33-01
main90520-T0134i201107-201504
T=1.5,TYPE B:REFER 33-01
main90520-T0283i201502-201512
T=1.5,TYPE D:REFER 33-01
33481CBALL, REVERSE SHIFT RESTRICT
main90360-06004i201107-201504
TYPE B:SEE 33-01,(J)
main90360-06004i201107-201512
TYPE D:REFER 33-01,TYPE C:REFER 33-01
main90360-T0009i201304-201504
TYPE B:SEE 33-01,(L)

54 parts on this diagram · 1 diagram in section

TRANSMISSION GEAR (MTM) — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
