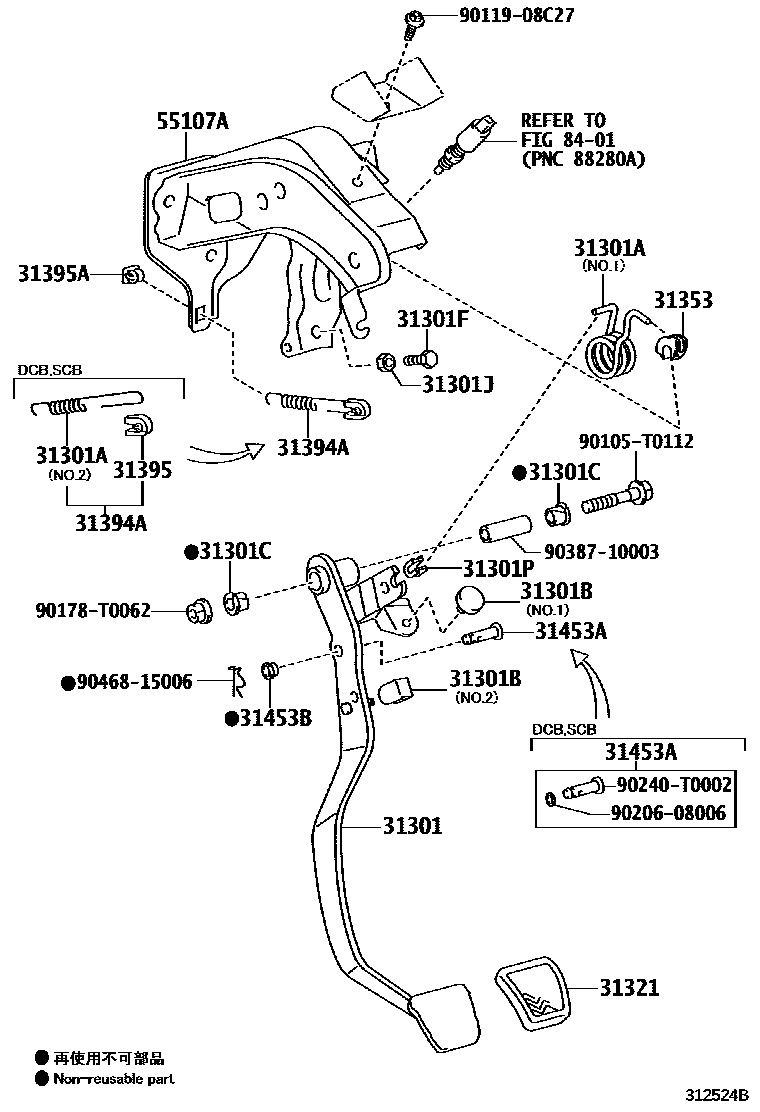

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0K160iKUN25..RHD..XTR201107-201504

main31301-0K180iKUN2#,35..LHD..(THDCB,THSCB,XTR)..5F201107-201504

main31301-0K200iKUN2#..RHD..(DCB,SCB)..5F201108-201512

main31301-0K220iKUN2#,35..LHD..(DCB,SCB)..5F201108-201512

31301ASPRING(FOR CLUTCH PEDAL)

main90905-06079iKUN2#,35..(DCB,SCB)..5F201108-201512

NO.2

main90949-T3001iKUN2#,35..(DCB,SCB)..5F201107-201512

NO.1

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iKUN2#,35..5F201107-201512

NO.1

main90541-T0004iKUN2#..RHD..5F201107-201512

NO.2

main90541-T0005iKUN2#,35..LHD..5F201107-201512

NO.2

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iKUN2#,35..5F201107-201512

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iKUN2#,35..5F201107-201505

main90101-10369iKUN2#,35..5F201505-201512

(J)

main90101-T0005iKUN2#,35..5F201505-201512

(L)

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-T0011iKUN2#,35..5F201107-201512

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iKUN2#,35..5F201107-201512

31321PAD, CLUTCH PEDAL

main31321-52010iKUN2#,35..5F201107-201512

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iKUN2#,35..5F201107-201512

31394ASPRING, PEDAL W/HOOK

main31394-25010iKUN2#,35..5F201107-201512

31395HOOK, PEDAL SPRING

main31395-33010iKUN2#,35..(DCB,SCB)..5F201108-201512

31395AHOOK, PEDAL SPRING, NO.1

main31395-33020iKUN2#,35..5F201107-201512

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-0K011iKUN2#,35..5F201107-201512

L=29.4

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iKUN2#,35..5F201107-201512

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0K060iKUN2#,35..(THDCB,THSCB,XTR)..5F201107-201504

main55107-0K070iKUN2#,35..(DCB,SCB)..5F201108-201512

8401

90105T0112

main90105-T0112

9011908C27

main90119-08C27

90178T0062

main90178-T0062

9020608006

main90206-08006

90240T0002

main90240-T0002

9038710003

main90387-10003

9046815006

main90468-15006

23 parts on this diagram · 4 diagrams in section
