FUEL FILTER

2202

23300FILTER ASSY, FUEL

main23300-0L030i1KDFTV,2KDFTV..KUN2#,35201107-201205

sub23300-0L031

main23300-0L031i1KDFTV,2KDFTV..KUN2#,35201206-201209

sub23300-0L032

main23300-0L032i1KDFTV,2KDFTV..KUN2#,35201210-201512

23328GASKET(FOR FUEL FILTER)

main23344-0L010i1KDFTV,2KDFTV..KUN2#,35201107-201512

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0L041i1KDFTV,2KDFTV..KUN2#,35201107-201512

23388APLUG, FUEL FILTER DRAIN

main23388-0L041i1KDFTV,2KDFTV..KUN2#,35201107-201512

23390ELEMENT ASSY, FUEL FILTER

main23390-0L030i1KDFTV,2KDFTV..KUN2#,35201107-201512

23921SUPPORT, FUEL FILTER

main23921-0L090i2KDFTV..KUN25..RHD..XTR201107-201504

main23921-0L100i1KDFTV,2KDFTV..KUN2#..RHD..(DCB,SCB)201108-201512

main23921-0L110i1KDFTV,2KDFTV..KUN2#,35..LHD..(THDCB,THSCB,XTR)201107-201504

main23921-0L120i1KDFTV,2KDFTV..KUN2#,35..LHD..(DCB,SCB)201108-201512

7751

90105T0059

main90105-T0059

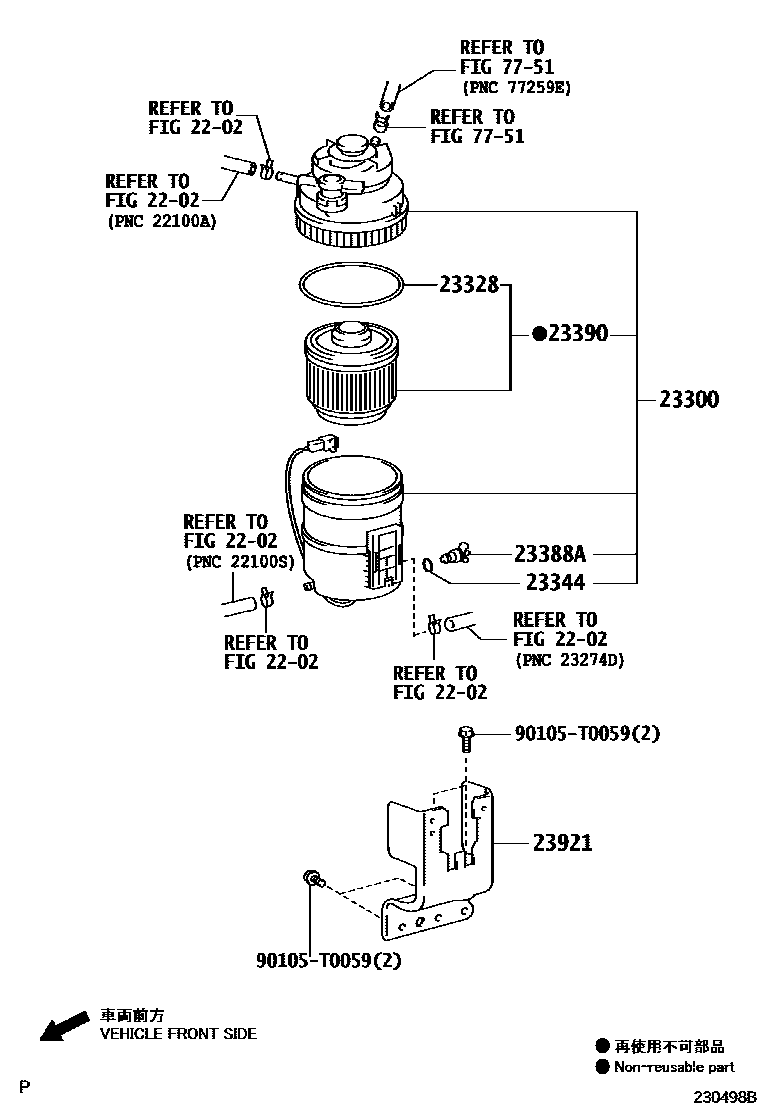

9 parts on this diagram · 1 diagram in section
