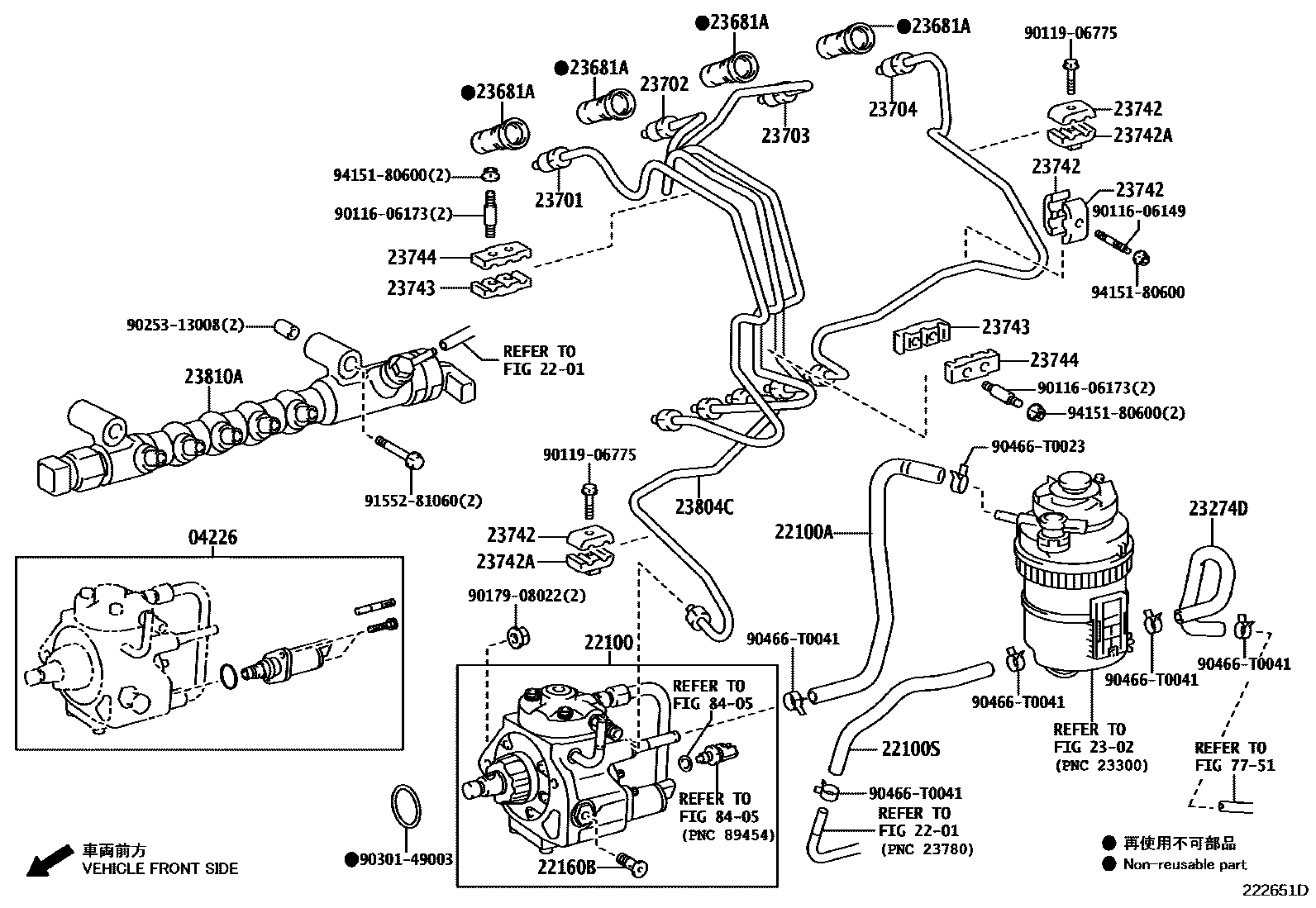

INJECTION PUMP ASSEMBLY

0001 1 0002 1RUSSIA & UKURAINE OR MOROCCO

04226VALVE KIT, SUCTION CONTROL

main04226-30020i1KDFTV,2KDFTV..KUN2#,35201107-201512

RUSSIA & UKRAINE SPEC

2201

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-30160i1KDFTV,2KDFTV..KUN2#,35201107-201410

main22100-30161i1KDFTV,2KDFTV..KUN2#,35201411-201512

main22100-30090i1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU201107-201512

RUSSIA & UKRAINE SPEC

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-0L060i1KDFTV,2KDFTV..KUN2#,35201107-201512

RUSSIA & UKRAINE SPEC

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23273-0L170i1KDFTV,2KDFTV..KUN2#,35201303-201512

(L)

main23273-30290i1KDFTV,2KDFTV..KUN2#,35201107-201303

main23273-0L160i2KDFTV..KUN35..THSCB201303-201308

MOROCCO SPEC,(L)

main23273-30170i2KDFTV..KUN35..THSCB201303-201308

MOROCCO SPEC,(J)

22160BSCREW

main22569-30150i1KDFTV,2KDFTV..KUN2#,35201107-201512

2302

23274DHOSE, FUEL, NO.3

main23274-0L090i1KDFTV,2KDFTV..KUN2#,35201303-201512

(L)

main23274-30040i1KDFTV,2KDFTV..KUN2#,35201107-201303

23681ASEAL, NOZZLE HOLDER

main23681-30010×4i1KDFTV,2KDFTV..KUN2#,35201107-201512

RUSSIA & UKRAINE SPEC

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-30100i1KDFTV,2KDFTV..KUN2#,35201107-201512

sub23701-30101

main23701-30060i2KDFTV..KUN35..THSCB201210-201308

MOROCCO SPEC

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-30100i1KDFTV,2KDFTV..KUN2#,35201107-201512

sub23702-30101

main23702-30060i1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU201107-201512

RUSSIA & UKRAINE SPEC

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-30100i1KDFTV,2KDFTV..KUN2#,35201107-201512

sub23703-30101

main23703-30060i2KDFTV..KUN35..SCB..DLX..CBU201210-201310

MOROCCO SPEC

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-30090i1KDFTV,2KDFTV..KUN2#,35201107-201512

sub23704-30091

main23704-39055i2KDFTV..KUN35..SCB..DLX..CBU201210-201310

MOROCCO SPEC

23742CLAMP, INJECTION PIPE, NO.2

main23742-27010×4i1KDFTV,2KDFTV..KUN2#,35201107-201512

RUSSIA & UKRAINE SPEC,NO.1

main23742-30010i2KDFTV..KUN35..SCB..DLX..CBU201210-201310

MOROCCO SPEC,NO.2

23742ACLAMP, INJECTION PIPE, NO.3

main23742-58020×2i1KDFTV,2KDFTV..KUN2#,35201107-201512

RUSSIA & UKRAINE SPEC,NO.1

main23742-30020i1KDFTV..KUN26..LHD..DCB..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU201107-201512

RUSSIA & UKRAINE SPEC,NO.2

23743CLAMP, INJECTION PIPE, NO.3

main23743-30011×2i1KDFTV,2KDFTV..KUN2#,35201107-201512

RUSSIA & UKRAINE SPEC

23744CLAMP, INJECTION PIPE, NO.4

main23743-30011×2i1KDFTV,2KDFTV..KUN2#,35201107-201512

RUSSIA & UKRAINE SPEC

23804CPIPE SUB-ASSY, FUEL INLET

main23804-30100i1KDFTV,2KDFTV..KUN2#,35201107-201512

sub23804-30101

main23804-30050i2KDFTV..KUN35..SCB..DLX..CBU201210-201310

MOROCCO SPEC

23810ARAIL ASSY, COMMON

main23810-30120i1KDFTV,2KDFTV..KUN2#,35201107-201512

main23810-30100i2KDFTV..KUN25..LHD..(DCB,THDCB)..DLX..CBU201210-201512

MOROCCO SPEC

7751

8405

9011606149

main90116-06149

9011606173

main90116-06173

9011906775

main90119-06775

9017908022

main90179-08022

9025313008

main90253-13008

9030149003

main90301-49003

90466T0023

main90466-T0023

90466T0041

main90466-T0041

9155281060

main91552-81060

9415180600

main94151-80600

31 parts on this diagram · 2 diagrams in section
