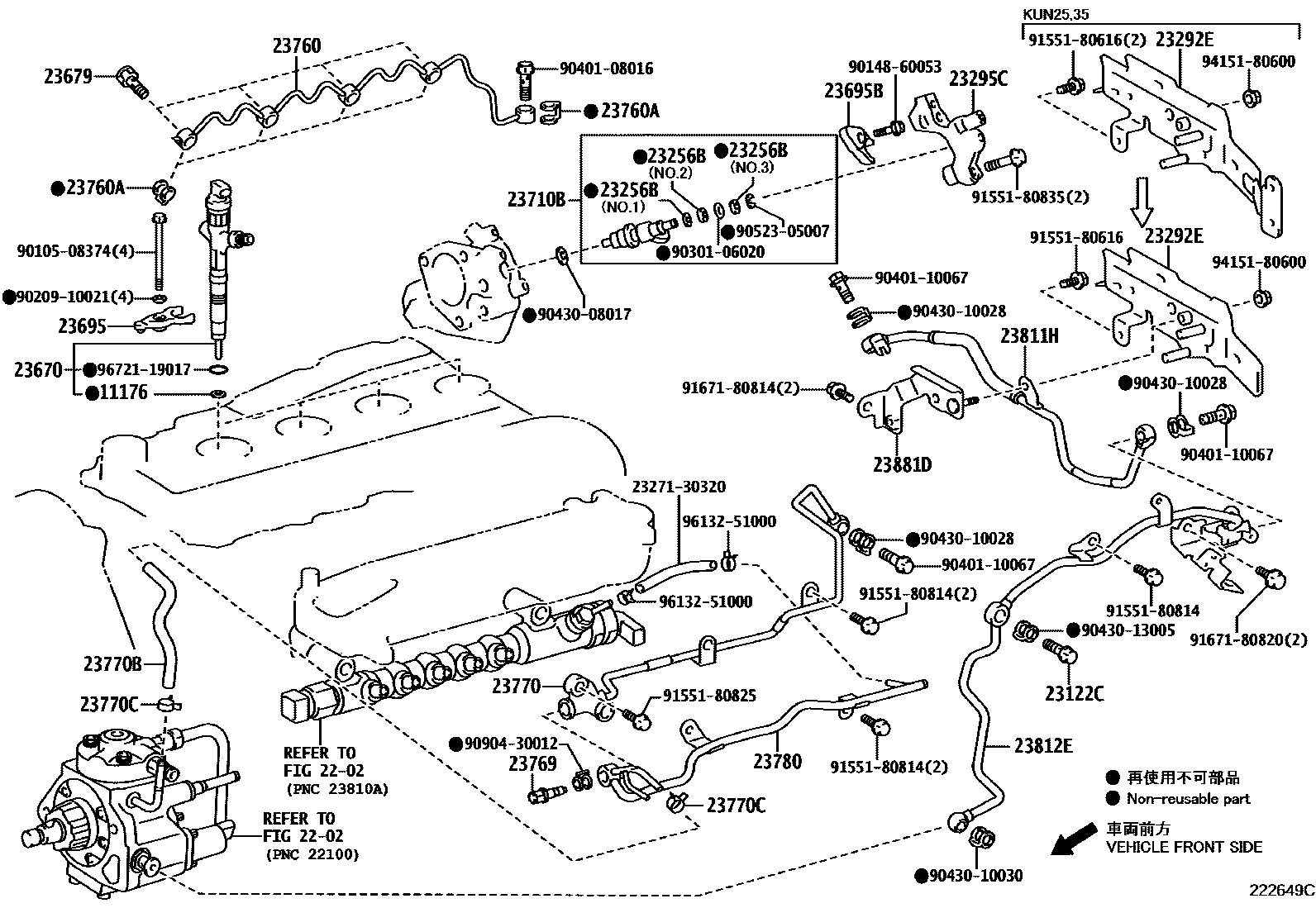

INJECTION NOZZLE
11176SEAT, INJECTION NOZZLE
RUSSIA & UKRAINE SPEC
2202
23256BRING, FUEL INJECTOR BACK-UP, NO.1
NO.1
NO.2
NO.3
23292EPROTECTOR, FUEL HOSE
23295CHOLDER, INJECTOR
23670INJECTOR ASSY
23679SCREW, INJECTOR FOLLOW
RUSSIA & UKRAINE SPEC
23695CLAMP, NOZZLE HOLDER, NO.1
23695BCLAMP, NOZZLE HOLDER, NO.2
23710BINJECTOR ASSY, EXHAUST FUEL ADDITION
23760PIPE ASSY, NOZZLE LEAKAGE
RUSSIA & UKRAINE SPEC
23760AGASKET
RUSSIA & UKRAINE SPEC
23769VALVE, FUEL CHECK
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770BHOSE, FUEL
23770CCLAMP OR CLIP(FOR FUEL HOSE SET)
RUSSIA & UKRAINE SPEC
23780PIPE, NOZZLE LEAKAGE, NO.3
23811HPIPE, FUEL, NO.1
23812EPIPE, FUEL, NO.2
23881DBRACKET, FUEL HOSE
2327130320VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
main23271-30320
9010508374
main90105-08374
9014860053
main90148-60053
9020910021
main90209-10021
9030106020
main90301-06020
9040108016
main90401-08016
9040110067
main90401-10067
9043008017
main90430-08017
9043010028
main90430-10028
9043010030
main90430-10030
9043013005
main90430-13005
9052305007
main90523-05007
9090430012
main90904-30012
9155180616
main91551-80616
9155180814
main91551-80814
9155180825
main91551-80825
9155180835
main91551-80835
9167180814
main91671-80814
9167180820
main91671-80820
9415180600
main94151-80600
9613251000
main96132-51000
9672119017
main96721-19017
43 parts on this diagram · 2 diagrams in section
