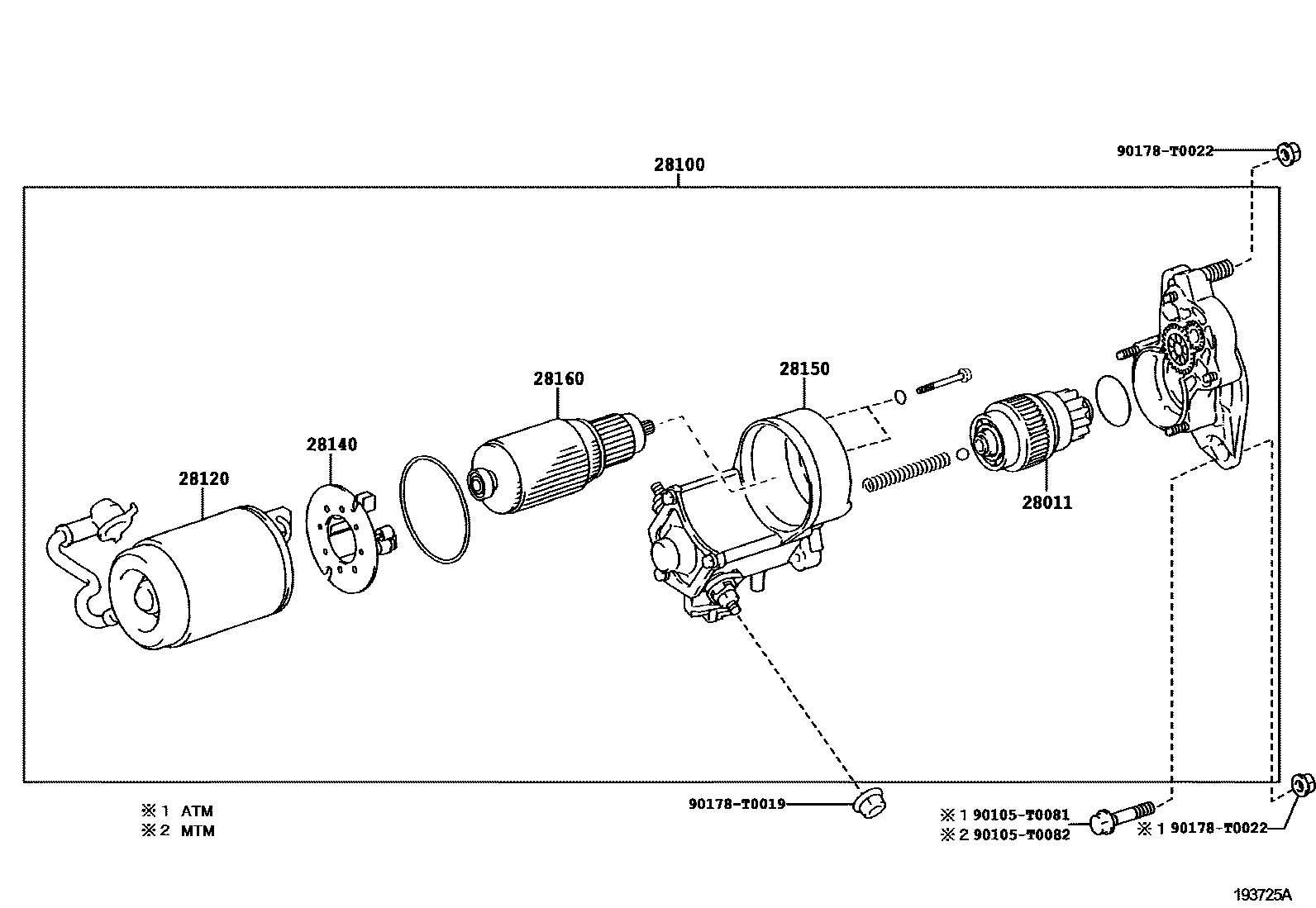

STARTER

0001 112V 2.2KW 0002 112V 2.7KW

28011CLUTCH SUB-ASSY, STARTER

main28011-0L030i1KDFTV..KUN26..THDCB201107-201504

main28011-30050i2KDFTV..KUN25,35;1KDFTV..KUN26..DCB201107-201512

28100STARTER ASSY

main28100-0L032i1KDFTV..KUN26..THDCB201107-201504

12V 2.2KW

main28100-0L051i2KDFTV..KUN25,35;1KDFTV..KUN26..DCB201107-201306

12V 2.7KW

sub28100-0L052

main28100-0L052i2KDFTV..KUN25,35;1KDFTV..KUN26..DCB201307-201512

12V 2.7KW

28120YOKE ASSY, STARTER

main28120-0L030i1KDFTV..KUN26..THDCB201107-201504

main28120-0L050i2KDFTV..KUN25,35;1KDFTV..KUN26..DCB201107-201512

28140HOLDER ASSY, STARTER BRUSH

main28140-0L030i1KDFTV..KUN26..THDCB201107-201504

main28140-77090i2KDFTV..KUN25,35;1KDFTV..KUN26..DCB201107-201512

28150SWITCH ASSY, MAGNET STARTER

main28150-0L030i1KDFTV..KUN26..THDCB201107-201504

main28150-0L050i2KDFTV..KUN25,35;1KDFTV..KUN26..DCB201107-201512

28160ARMATURE ASSY, STARTER

main28160-54140i2KDFTV..KUN25,35;1KDFTV..KUN26..DCB201107-201512

main28160-64041i1KDFTV..KUN26..THDCB201107-201504

90105T0081

main90105-T0081

90105T0082

main90105-T0082

90178T0019

main90178-T0019

90178T0022

main90178-T0022

10 parts on this diagram · 2 diagrams in section
