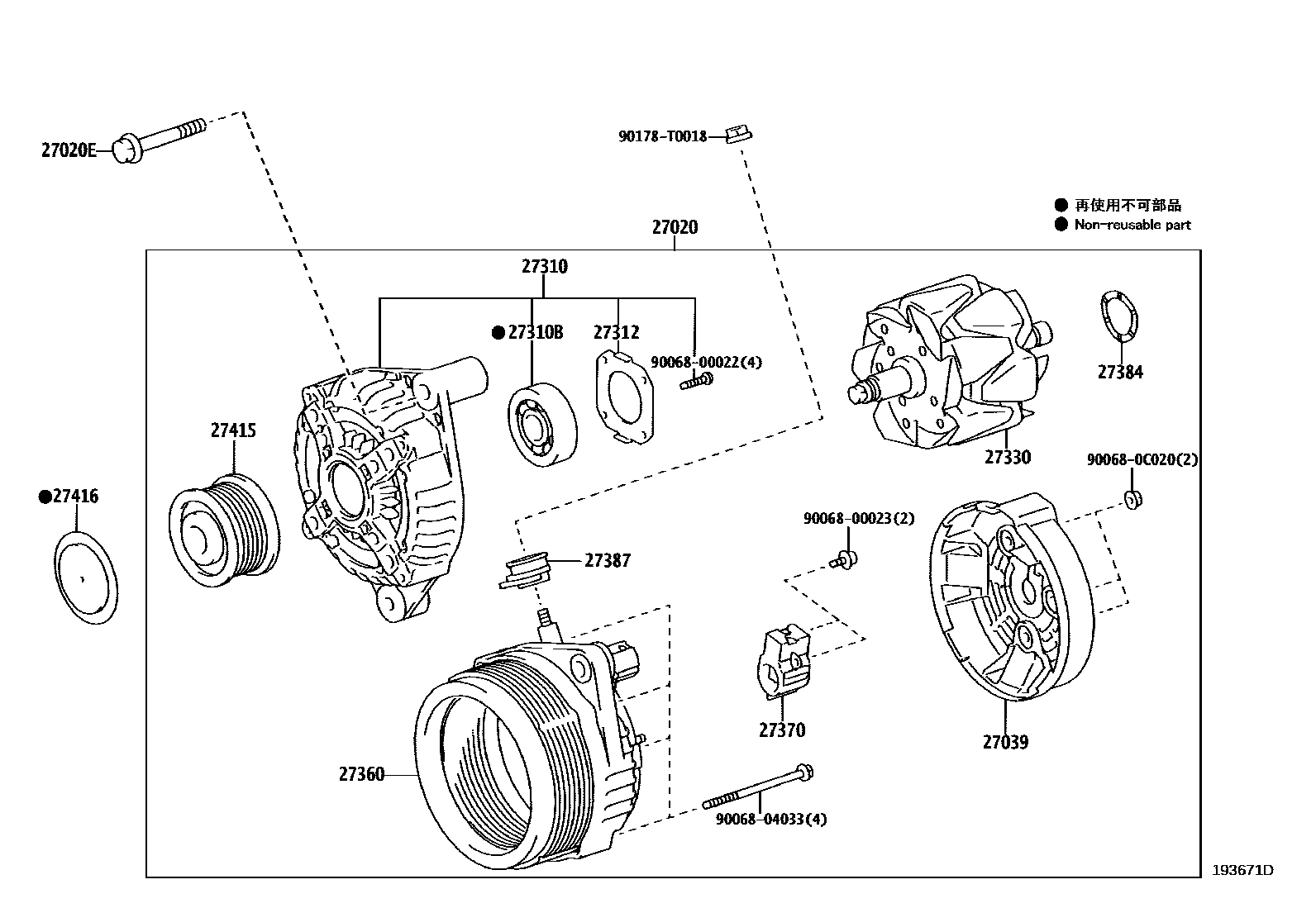

ALTERNATOR

0001 112V 80A(DENSO) 0002 112V 80A(BOSCH) 0003 112V 80A(BOSCH)

27020ALTERNATOR ASSY

main27060-0L022i2KDFTV..KUN25..RHD..XTR;2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN26,35..THDCB,THSCB,XTR201107-201504

12V 80A

main27060-0L060i1KDFTV,2KDFTV..KUN2#,35..DCB,SCB201108-201512

12V 80A

main27060-0L100i2KDFTV..KUN25..LHD..XTR201107-201504

12V 80A

sub27060-0L060

27020EBOLT(FOR ALTERNATOR)

main90105-T0074i1KDFTV,2KDFTV..KUN2#,35201107-201512

27039COVER, ALTERNATOR REAR END

main27039-0L020i2KDFTV..KUN25..RHD..XTR;2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN26,35..THDCB,THSCB,XTR201107-201504

main27039-0L030i2KDFTV..KUN25..LHD..XTR201107-201504

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0L021i2KDFTV..KUN25..RHD..XTR;2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN26,35..THDCB,THSCB,XTR201107-201504

main27310-0L030i2KDFTV..KUN25..LHD..XTR201107-201504

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10029i2KDFTV..KUN25..RHD..XTR;2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN26,35..THDCB,THSCB,XTR201107-201504

main90069-40000i2KDFTV..KUN25..LHD..XTR201107-201504

27312PLATE, RETAINER

main27312-0C020i2KDFTV..KUN25..RHD..XTR;2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN26,35..THDCB,THSCB,XTR201107-201504

main27312-0L030i2KDFTV..KUN25..LHD..XTR201107-201504

27330ROTOR ASSY, ALTERNATOR

main27330-0L050i2KDFTV..KUN25..LHD..XTR;1KDFTV,2KDFTV..KUN2#,35..DCB,SCB201107-201512

main27330-0M040i2KDFTV..KUN25..RHD..XTR;2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN26,35..THDCB,THSCB,XTR201107-201504

27360COIL ASSY, ALTERNATOR

main27360-0L021i2KDFTV..KUN25..RHD..XTR;2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN26,35..THDCB,THSCB,XTR201107-201504

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0C020i2KDFTV..KUN25..RHD..XTR;2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN26,35..THDCB,THSCB,XTR201107-201504

27384WASHER

main27384-0C020i2KDFTV..KUN25..RHD..XTR;2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN26,35..THDCB,THSCB,XTR201107-201504

27387INSULATOR, TERMINAL

main27387-0C020i2KDFTV..KUN25..RHD..XTR;2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN26,35..THDCB,THSCB,XTR201107-201504

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0L030i2KDFTV..KUN25..RHD..XTR;2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN26,35..THDCB,THSCB,XTR201107-201504

main27415-0L040i2KDFTV..KUN25..LHD..XTR;1KDFTV,2KDFTV..KUN2#,35..DCB,SCB201107-201512

27416CAP, ALTERNATOR PULLEY

main27416-0L030i2KDFTV..KUN25..RHD..XTR;2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN26,35..THDCB,THSCB,XTR201107-201504

main27416-33010i2KDFTV..KUN25..LHD..XTR;1KDFTV,2KDFTV..KUN2#,35..DCB,SCB201107-201512

9006800022

main90068-00022

9006800023

main90068-00023

9006804033

main90068-04033

900680C020

main90068-0C020

90178T0018

main90178-T0018

18 parts on this diagram · 3 diagrams in section
