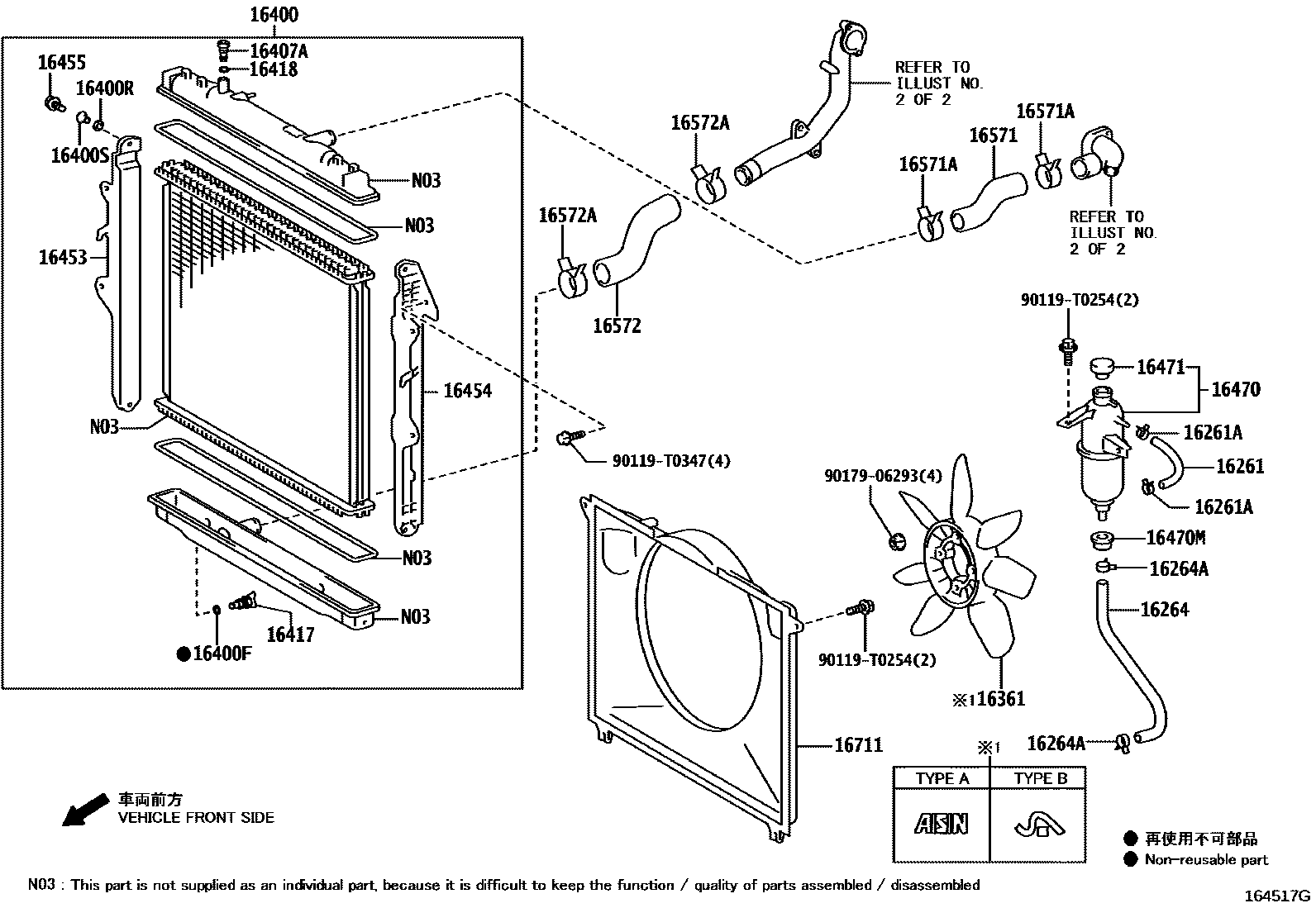

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1RUSSIA & UKURAINE SPEC 0005 1 0006 1 0007 1RUSSIA & UKURAINE SPEC 0009 1 0010 1 0011 1RUSSIA & UKURAINE OR MOROCCO

16261HOSE, WATER BY-PASS

main16261-0L010i1KDFTV,2KDFTV..KUN2#,35201107-201512

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90466-T0015i1KDFTV,2KDFTV..KUN2#,35201504-201512

main90466-T0033i1KDFTV,2KDFTV..KUN2#,35201306-201503

sub90466-T0059

main90466-T0046i1KDFTV,2KDFTV..KUN2#,35201107-201305

sub90466-T0033

16264HOSE, WATER BY-PASS, NO.2

main16264-0L010i1KDFTV,2KDFTV..KUN2#,35201107-201512

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90466-T0030i1KDFTV,2KDFTV..KUN2#,35201107-201208

sub90466-T0031

main90466-T0031i1KDFTV,2KDFTV..KUN2#,35201209-201512

16361FAN

main16361-0L020i1KDFTV,2KDFTV..KUN2#,35201112-201512

TYPE B:REFER ILLUST.

main16361-0L020i1KDFTV,2KDFTV..KUN2#,35201107-201112

main16361-67020i1KDFTV,2KDFTV..KUN2#,35201112-201512

TYPE A:REFER ILLUST.

16400RADIATOR ASSY

main16400-0L120i1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB,XTR)..5F201107-201504

main16400-0L130i1KDFTV..KUN26..THDCB..5FC201107-201111

main16400-0L160i1KDFTV,2KDFTV..KUN2#,35..(DCB,SCB)..5F201108-201512

main16400-0L170i1KDFTV..KUN26..DCB..5FC201108-201111

main16400-0L340i1KDFTV..KUN26..THDCB..5FC201112-201504

main16400-0L350i1KDFTV..KUN26..DCB..5FC201112-201512

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-0D430i1KDFTV..KUN26..DCB..5FC201108-201512

main16492-21050i1KDFTV..KUN26..THDCB..5FC201107-201504

16400RBUSHING(FOR RADIATOR)

main16444-75180i1KDFTV..KUN26..THDCB..5FC201107-201504

16400SCOLLAR(FOR RADIATOR)

main16445-0C180i1KDFTV..KUN26..THDCB..5FC201107-201504

16407ACOCK SUB-ASSY, RADIATOR DRAIN

main16407-67240i1KDFTV..KUN26..5FC201107-201512

16417COCK

main16417-0C180i1KDFTV..KUN26..THDCB..5FC201107-201504

sub16417-21280

main16417-0D430i1KDFTV..KUN26..DCB..5FC201108-201512

16418PACKING

main16418-0D310i1KDFTV..KUN26..DCB..5FC201108-201512

sub16492-0D430

16453PLATE, RADIATOR SIDE

main16453-0L120i1KDFTV..KUN26..THDCB..5FC201107-201504

16454PLATE, RADIATOR SIDE

main16454-0L120i1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB,XTR)..5F201107-201504

16455BOLT, RADIATOR SIDE SUPPORT PLATE

main91651-B0820i1KDFTV..KUN26..THDCB..5FC201107-201504

16470TANK ASSY, RADIATOR RESERVE

main16470-0L010i1KDFTV,2KDFTV..KUN2#,35201107-201108

sub16470-0L011

main16470-0L011i1KDFTV,2KDFTV..KUN2#,35201108-201208

sub16470-0L012

main16470-0L012i1KDFTV,2KDFTV..KUN2#,35201208-201410

sub16470-0L013

main16470-0L013i1KDFTV,2KDFTV..KUN2#,35201411-201512

16470MGROMMET

main90480-T0004i1KDFTV,2KDFTV..KUN2#,35201107-201512

16471CAP SUB-ASSY, RESERVE TANK

main16401-30011i1KDFTV,2KDFTV..KUN2#,35201107-201208

sub16401-30012

main16401-30012i1KDFTV,2KDFTV..KUN2#,35201208-201410

sub16401-30013

main16401-30013i1KDFTV,2KDFTV..KUN2#,35201411-201512

sub16475-28140

16571HOSE, RADIATOR, INLET

main16571-0L030i1KDFTV,2KDFTV..KUN2#,35201107-201203

main16571-0L030i1KDFTV,2KDFTV..KUN2#,35201203-201512

*299

main16571-0L040i1KDFTV,2KDFTV..KUN2#,35201203-201512

*303

main16571-0L050i1KDFTV,2KDFTV..KUN2#,35201203-201512

*304

sub16571-0L030

main16571-0L090i1KDFTV,2KDFTV..KUN2#,35201203-201512

*305

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-T0012i1KDFTV,2KDFTV..KUN2#,35201107-201302

sub90466-T0024

main90466-T0024i1KDFTV,2KDFTV..KUN2#,35201303-201512

16572HOSE, RADIATOR, OUTLET

main16572-0L030i1KDFTV,2KDFTV..KUN2#,35201107-201203

main16572-0L030i1KDFTV,2KDFTV..KUN2#,35201203-201512

*299

main16572-0L040i1KDFTV,2KDFTV..KUN2#,35201203-201512

*303

main16572-0L050i1KDFTV,2KDFTV..KUN2#,35201203-201512

*304

sub16572-0L030

main16572-0L090i1KDFTV,2KDFTV..KUN2#,35201203-201512

*305

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-T0012i1KDFTV,2KDFTV..KUN2#,35201107-201302

sub90466-T0024

main90466-T0024i1KDFTV,2KDFTV..KUN2#,35201303-201512

16711SHROUD, FAN

main16711-0L050i1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB,XTR201107-201504

main16711-0L070i1KDFTV,2KDFTV..KUN2#,35..DCB,SCB201108-201512

90119T0254

main90119-T0254

90119T0347

main90119-T0347

9017906293

main90179-06293

26 parts on this diagram · 9 diagrams in section
