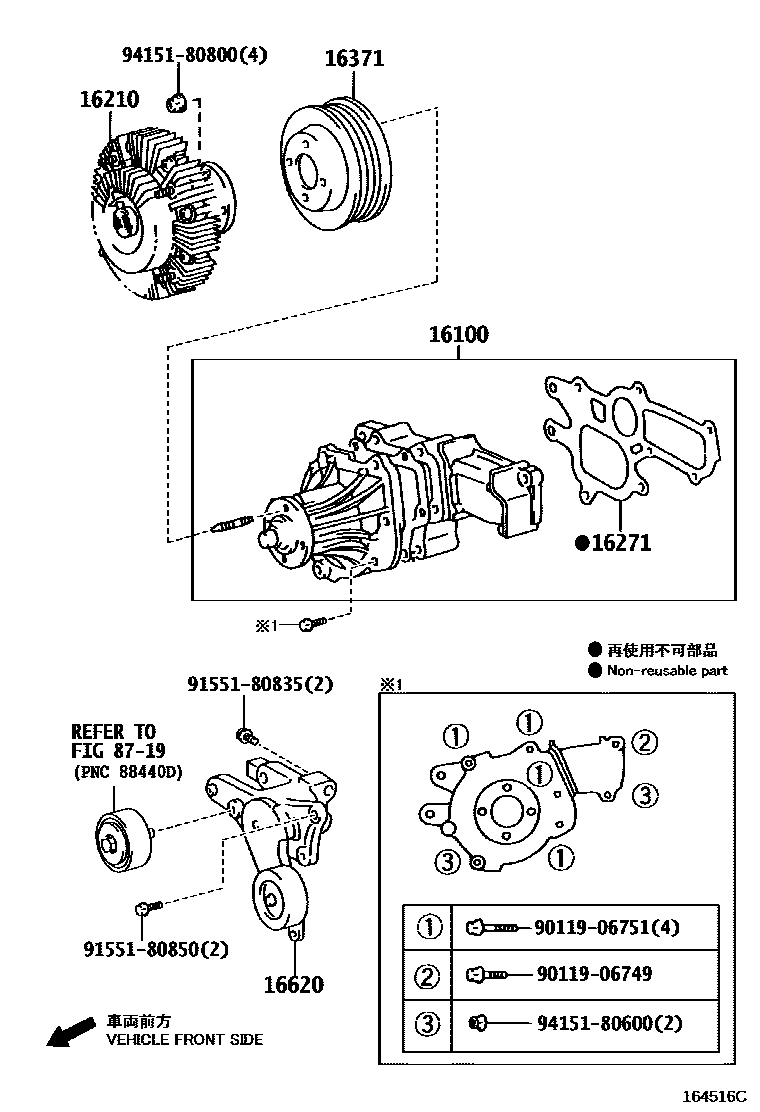

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-39485i1KDFTV,2KDFTV..KUN2#,35201107-201407

sub16100-39486

main16100-39486i1KDFTV,2KDFTV..KUN2#,35201407-201512

16210COUPLING ASSY, FLUID

main16210-30030i1KDFTV,2KDFTV..KUN2#,35201107-201508

sub16210-30031

main16210-30031i1KDFTV,2KDFTV..KUN2#,35201509-201512

16271GASKET, WATER PUMP

main16271-67020i1KDFTV,2KDFTV..KUN2#,35201107-201512

16371PULLEY, FAN

main16371-30020i1KDFTV,2KDFTV..KUN2#,35201107-201512

16620TENSIONER ASSY, V-RIBBED BELT

main16620-30031i1KDFTV,2KDFTV..KUN2#,35201107-201512

8719

9011906749

main90119-06749

9011906751

main90119-06751

9155180835

main91551-80835

9155180850

main91551-80850

9415180600

main94151-80600

9415180800

main94151-80800

12 parts on this diagram · 1 diagram in section
