OIL FILTER

1105

15600AUNION(FOR OIL FILTER)

main90404-19002i1KDFTV,2KDFTV..KUN2#,35201107-201512

15601FILTER SUB-ASSY, OIL

main90915-20003i1KDFTV,2KDFTV..KUN2#,35201107-201512

sub90915-20005

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002i1KDFTV,2KDFTV..KUN2#,35201107-201512

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main15134-67020i1KDFTV,2KDFTV..KUN2#,35201107-201512

15690BVALVE ASSY, OIL COOLER RELIEF

main15690-64011i1KDFTV,2KDFTV..KUN2#,35201107-201512

15701CCOVER SUB-ASSY, OIL COOLER

main15701-30091i1KDFTV,2KDFTV..KUN2#,35201107-201512

15725AGASKET, OIL COOLER COVER

main15725-67010i1KDFTV,2KDFTV..KUN2#,35201107-201512

9011906749

main90119-06749

9043022003

main90430-22003

9091009087

main90910-09087

9415180600

main94151-80600

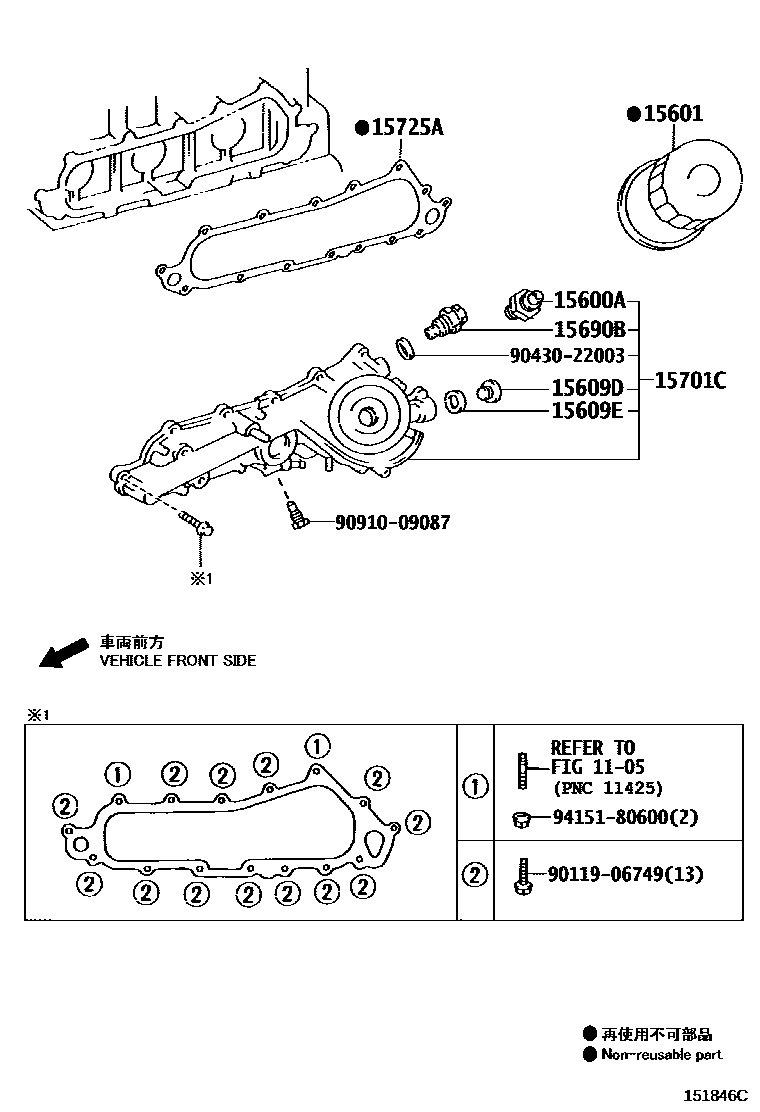

12 parts on this diagram · 1 diagram in section
