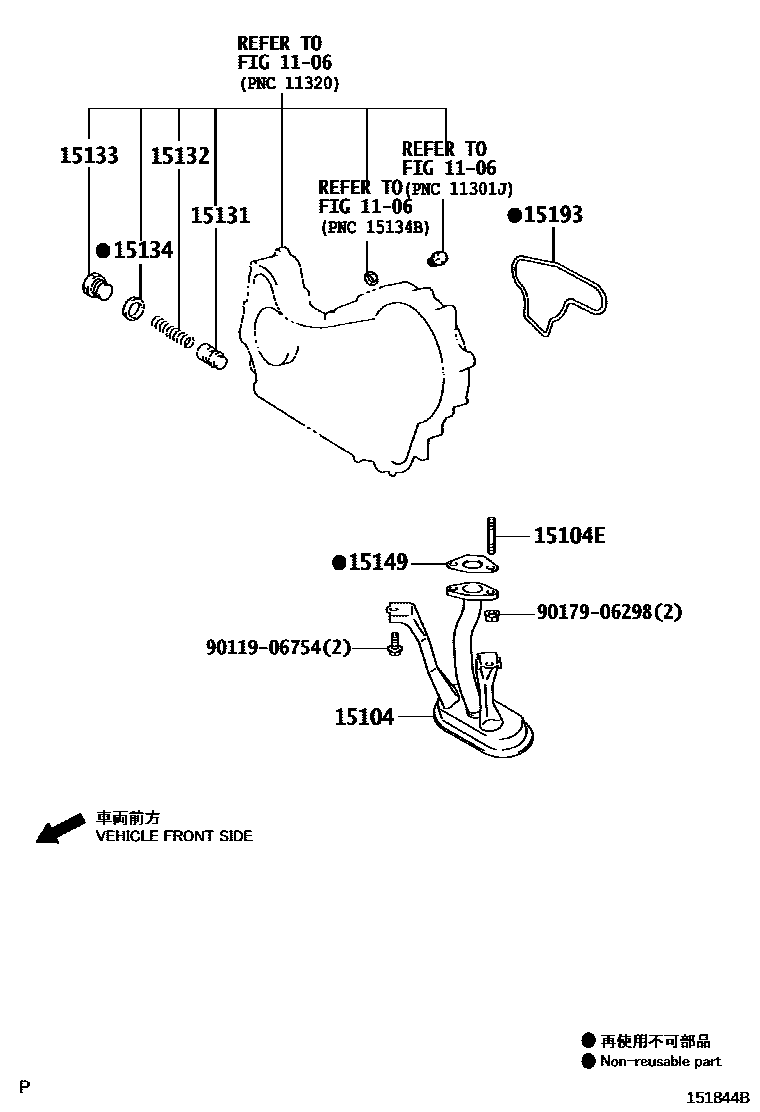

ENGINE OIL PUMP

1106

15104STRAINER SUB-ASSY, OIL

main15104-30050i1KDFTV,2KDFTV..KUN2#,35201107-201512

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06140i1KDFTV,2KDFTV..KUN2#,35201107-201512

15131VALVE, OIL PUMP RELIEF

main15131-46040i1KDFTV,2KDFTV..KUN2#,35201107-201512

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i1KDFTV,2KDFTV..KUN2#,35201107-201512

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1KDFTV,2KDFTV..KUN2#,35201107-201512

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67020i1KDFTV,2KDFTV..KUN2#,35201107-201512

15149GASKET, OIL STRAINER FLANGE

main15149-67010i1KDFTV,2KDFTV..KUN2#,35201107-201512

15193GASKET, OIL PUMP

main15193-67011i1KDFTV,2KDFTV..KUN2#,35201107-201512

9011906754

main90119-06754

9017906298

main90179-06298

11 parts on this diagram · 1 diagram in section
