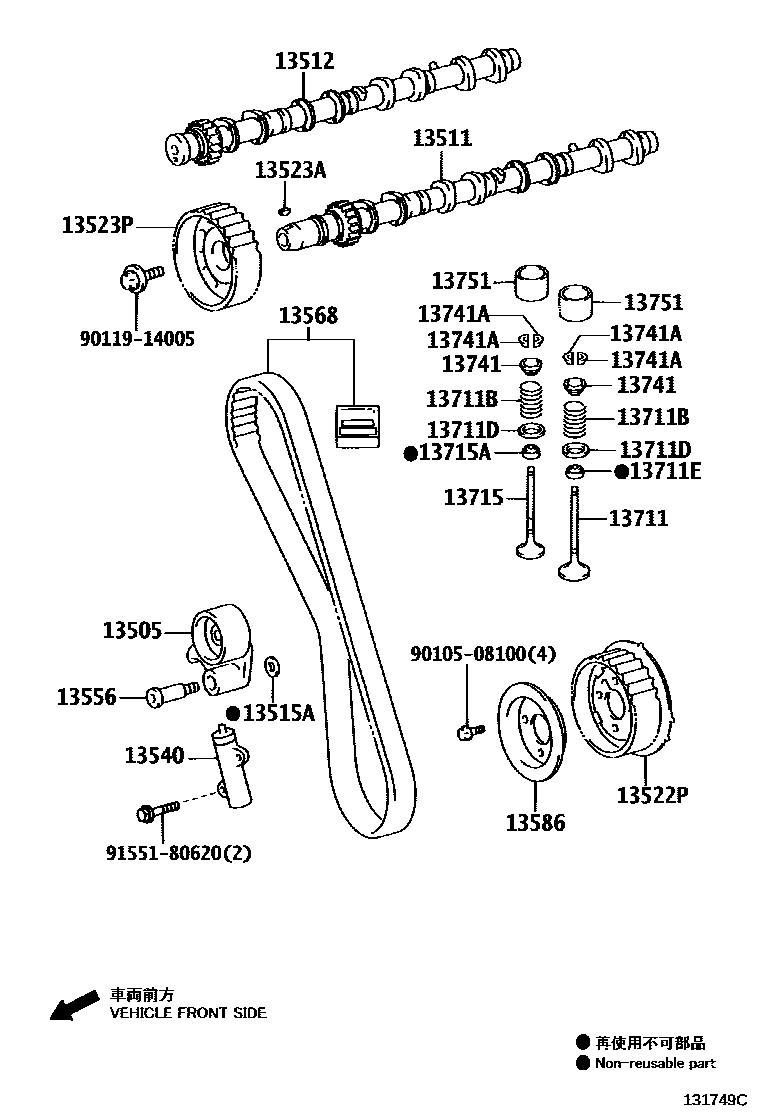

CAMSHAFT & VALVE

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-67041i1KDFTV,2KDFTV..KUN2#,35¥2,950201107-201406

sub13505-67042¥2,680

main13505-67042i1KDFTV,2KDFTV..KUN2#,35¥2,680201407-201512

13511CAMSHAFT

main13501-30040i2KDFTV..KUN25,35¥33,500201107-201512

sub13501-30030¥25,300

main13501-30070i1KDFTV..KUN26201107-201512

sub13501-30060¥31,100

13512CAMSHAFT, NO.2

main13502-30030i2KDFTV..KUN25,35¥33,500201107-201512

sub13502-30020¥25,300

main13502-30060i1KDFTV..KUN26201107-201512

sub13502-30050¥31,100

13515AWASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)

main90201-10124i1KDFTV,2KDFTV..KUN2#,35¥180201107-201512

13522PPULLEY, PUMP DRIVE SHAFT

main13524-30010i1KDFTV,2KDFTV..KUN2#,35¥4,460201107-201512

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05004i1KDFTV..KUN26¥230201107-201512

13523PPULLEY, CAMSHAFT TIMING

main13523-17010i1KDFTV,2KDFTV..KUN2#,35¥2,100201107-201512

13540TENSIONER ASSY, CHAIN, NO.1

main13540-67020i1KDFTV,2KDFTV..KUN2#,35¥4,780201107-201512

13556SHAFT, TIMING BELT IDLER

main13556-67010i1KDFTV,2KDFTV..KUN2#,35¥1,050201107-201512

13568BELT, TIMING

main13568-39016i1KDFTV,2KDFTV..KUN2#,35¥3,410201107-201512

13586FLANGE, CAMSHAFT TIMING PULLEY, NO.2

main13586-17020i1KDFTV,2KDFTV..KUN2#,35¥1,720201107-201512

13711VALVE, INTAKE

main13711-30030i1KDFTV..KUN26¥1,420201107-201512

main13711-30040i2KDFTV..KUN25,35¥1,420201107-201512

13711BSPRING, COMPRESSION(FOR INNER)

main90501-28040i1KDFTV..KUN26¥240201107-201512

main90905-01077i2KDFTV..KUN25,35¥200201107-201512

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-16023i1KDFTV..KUN26¥90201107-201512

13711ESEAL, INTAKE VALVE STEM OIL

main90913-02121i1KDFTV..KUN26¥370201107-201512

13715VALVE, EXHAUST

main13715-30030i1KDFTV..KUN26¥1,980201107-201512

main13715-30040i2KDFTV..KUN25,35¥1,980201107-201512

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-02121i1KDFTV..KUN26¥370201107-201512

13741RETAINER, VALVE SPRING

main13741-15020i1KDFTV..KUN26¥240201107-201512

13741ALOCK, VALVE SPRING RETAINER

main90913-03021i1KDFTV..KUN26¥180201107-201512

13751LIFTER, VALVE

main13751-46030i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.06

main13751-46040i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.08

main13751-46050i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.10

main13751-46060i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.12

main13751-46070i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.14

main13751-46080i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.16

main13751-46090i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.18

main13751-46100i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.20

main13751-46110i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.22

main13751-46120i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.24

main13751-46130i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.26

main13751-46140i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.28

main13751-46150i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.30

main13751-46160i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.32

main13751-46170i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.34

main13751-46180i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.36

main13751-46190i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.38

main13751-46200i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.40

main13751-46210i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.42

main13751-46220i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.44

main13751-46230i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.46

main13751-46240i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.48

main13751-46250i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.50

main13751-46260i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.52

main13751-46270i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.54

main13751-46280i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.56

main13751-46290i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.58

main13751-46300i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.60

main13751-46310i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.62

main13751-46320i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.64

main13751-46330i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.66

main13751-46340i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.68

main13751-46350i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.70

main13751-46360i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.72

main13751-46370i1KDFTV,2KDFTV..KUN2#,35¥860201107-201512

T=5.74

9010508100

main90105-08100¥90

9011914005

main90119-14005¥350

9155180620

main91551-80620¥60

23 parts on this diagram · 1 diagram in section
