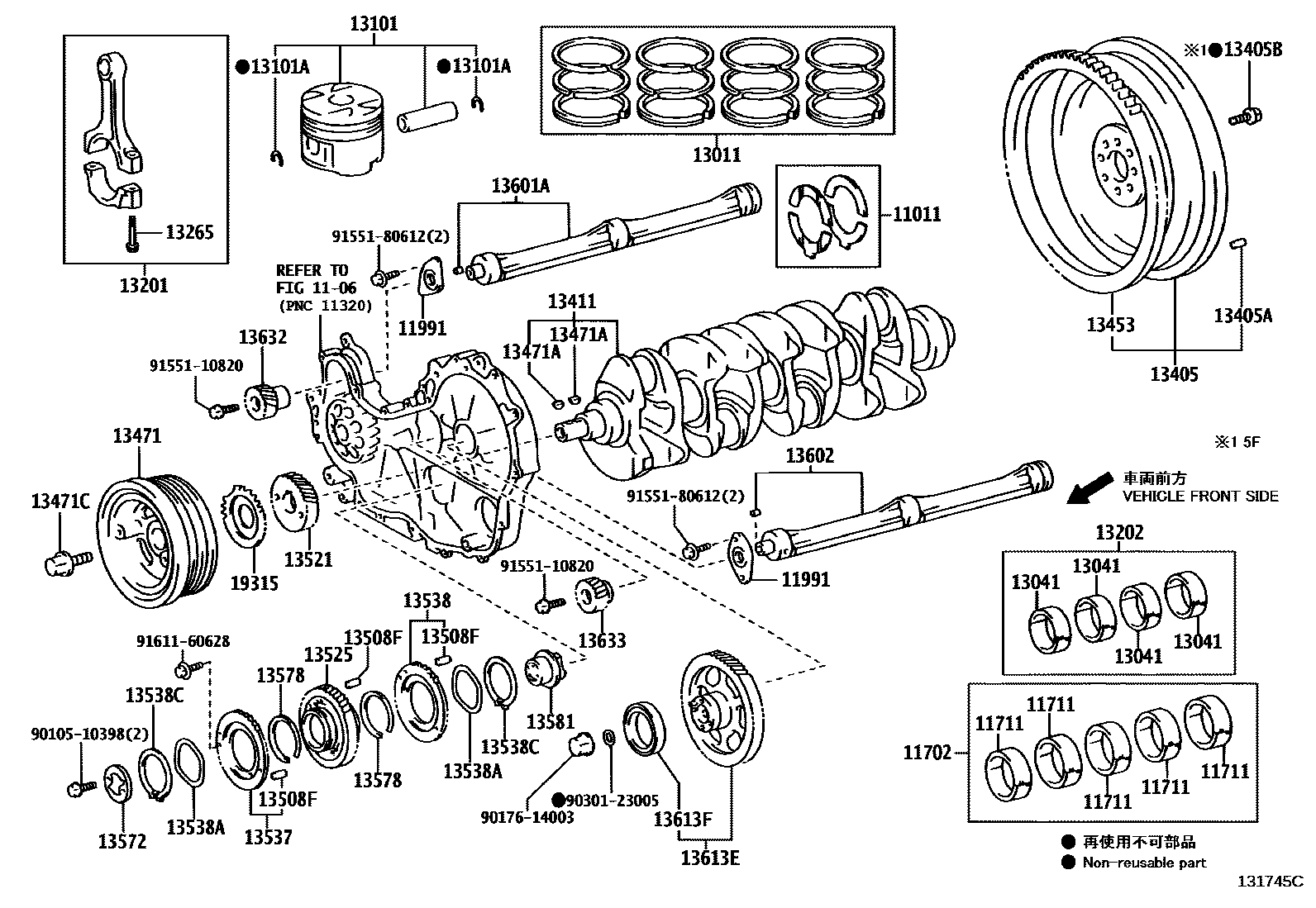

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
O/S 0.125
O/S 0.250
1106
11702BEARING SET, CRANKSHAFT
U/S 0.25
U/S 0.50
11711BEARING, CRANKSHAFT
11991WASHER, BALANCESHAFT THRUST
13011RING SET, PISTON
STD
STD
O/S 0.50
O/S 0.50
O/S 0.75
O/S 1.00
13041BEARING, CONNECTING ROD
RUSSIA & UKRAINE SPEC,MARK2,REFER REPAIR MANUAL
sub13041-30020
RUSSIA & UKRAINE SPEC,MARK3,REFER REPAIR MANUAL
sub13041-30020
RUSSIA & UKRAINE SPEC,MARK4,REFER REPAIR MANUAL
sub13041-30020
RUSSIA & UKRAINE SPEC,MARK5,REFER REPAIR MANUAL
sub13041-30020
MARK5,REFER REPAIR MANUAL
sub13041-30020
MARK6,REFER REPAIR MANUAL
sub13041-30020
RUSSIA & UKRAINE SPEC,MARK6,REFER REPAIR MANUAL
sub13041-30020
13101PISTON SUB-ASSY, W/PIN
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD,MARK3,REFER REPAIR MANUAL
O/S 0.50
O/S 0.50
O/S 0.75
O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
RUSSIA & UKRAINE SPEC
13201ROD SUB-ASSY, CONNECTING
RUSSIA & UKRAINE SPEC
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25,RUSSIA & UKRAINE SPEC
U/S 0.50
U/S 0.50,RUSSIA & UKRAINE SPEC
13265BOLT, CONNECTING ROD
RUSSIA & UKRAINE SPEC
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=15,OD=5
L=22,OD=10
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
(J)
13453GEAR, FLYWHEEL RING
(L)
(J)
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
(L)
(J)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13508FPIN, STRAIGHT(FOR IDLE GEAR)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13525GEAR, IDLE, NO.1
13537GEAR, IDLE SUB, NO.1
13538GEAR, IDLE SUB, NO.2
13538AWASHER, WAVE
13538CRING, SHAFT SNAP
13572PLATE, IDLE GEAR THRUST
13578SPRING, IDLE GEAR
13581SHAFT, IDLE GEAR, NO.1
13601ABALANCESHAFT SUB-ASSY, NO.1
sub13601-0L020
13602BALANCESHAFT SUB-ASSY, NO.2
sub13602-0L020
13613EGEAR, INJECTION
13613FBEARING, RADIAL BALL
13632GEAR, BALANCESHAFT DRIVEN, NO.1
13633GEAR, BALANCESHAFT DRIVEN, NO.2
19315PLATE, CRANK ANGLE SENSOR, NO.1
9010510398
main90105-10398
9017614003
main90176-14003
9030123005
main90301-23005
9155110820
main91551-10820
9155180612
main91551-80612
9161160628
main91611-60628
