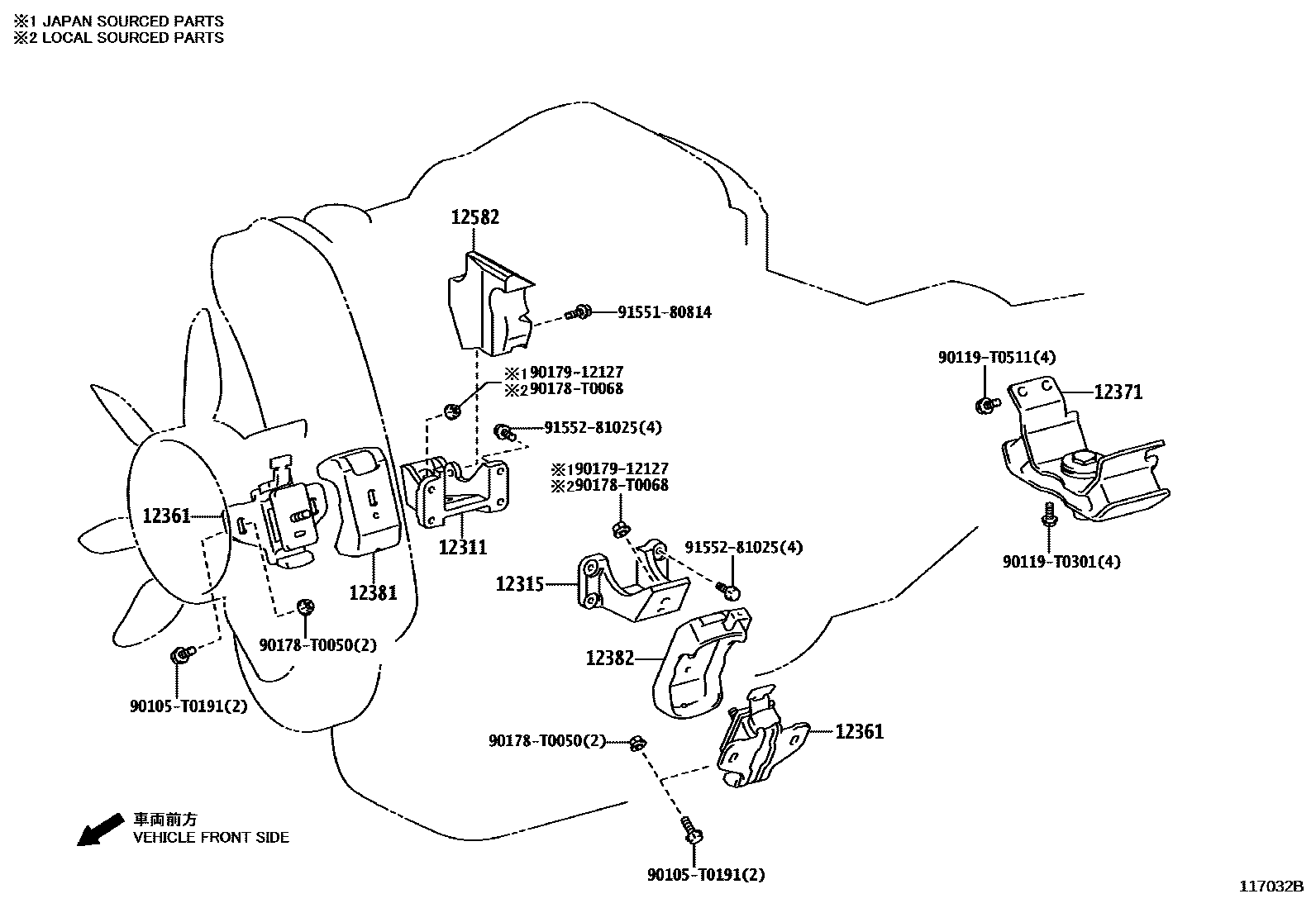

MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-67021i1KDFTV,2KDFTV..KUN2#,35201107

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-67011i1KDFTV,2KDFTV..KUN2#,35201107

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-0L030i2KDFTV..KUN35..THSCB201210-201512

MOROCCO SPEC,(L)

main12361-0L030i1KDFTV..KUN26..LHD..DCB..5F..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU201107-201512

RUSSIA & UKRAINE SPEC,(L)

main12361-0L050i1KDFTV..KUN26..5FC201210-201512

(L)

main12361-30080i2KDFTV..KUN35..SCB..DLX..CBU201210-201512

MOROCCO SPEC,(J)

main12361-30080i1KDFTV..KUN26..LHD..DCB..5F..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU201107-201512

RUSSIA & UKRAINE SPEC,(J)

main12361-30150i1KDFTV,2KDFTV..KUN2#,35..5F201107-201512

main12361-30160i1KDFTV..KUN26..5FC201107-201512

(J)

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-0L031i2KDFTV..KUN35..THSCB201210-201310

MOROCCO SPEC

main12371-0L081i1KDFTV..KUN26..LHD..DCB..5F..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU201107-201512

RUSSIA & UKRAINE SPEC

main12371-0L081i2KDFTV..KUN25..LHD..(DCB,THDCB)..DLX..CBU201210-201512

MOROCCO SPEC

main12371-0L101i1KDFTV..KUN26..LHD..DCB..5FC..SR201108-201512

RUSSIA & UKRAINE SPEC

main12371-0L110i2KDFTV..KUN35201107-201512

main12371-0L120i1KDFTV,2KDFTV..KUN2#..5F201107-201512

main12371-0L130i1KDFTV..KUN26..5FC201107-201512

12381STABILIZER, ENGINE MOUNTING

main12381-0L031i1KDFTV..KUN26..LHD..DCB..5F..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU201107-201512

RUSSIA & UKRAINE SPEC,(L)

main12381-0L031i2KDFTV..KUN35..THSCB201210-201512

MOROCCO SPEC,(L)

main12381-0L060i1KDFTV..KUN26..5FC201210-201512

(L)

main12381-30021i2KDFTV..KUN35..THSCB201210-201512

MOROCCO SPEC,(J)

main12381-30021i1KDFTV..KUN26..LHD..DCB..5F..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU201107-201512

RUSSIA & UKRAINE SPEC,(J)

main12381-30061i1KDFTV..KUN26..5FC201107-201512

(J)

main12381-30080i1KDFTV,2KDFTV..KUN2#,35..5F201107-201512

12382STABILIZER, ENGINE MOUNTING, LH

main12382-0L040i2KDFTV..KUN25..LHD..(DCB,THDCB)..DLX..CBU201210-201512

MOROCCO SPEC,(L)

main12382-0L040i1KDFTV..KUN26..LHD..DCB..5F..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU201107-201512

RUSSIA & UKRAINE SPEC,(L)

main12382-0L050i1KDFTV..KUN26..5FC201210-201512

(L)

main12382-30031i2KDFTV..KUN25..LHD..(DCB,THDCB)..DLX..CBU201210-201512

MOROCCO SPEC,(J)

main12382-30031i1KDFTV..KUN26..LHD..DCB..5F..SR;2KDFTV..KUN25..LHD..(DCB,THDCB)..CBU201107-201512

RUSSIA & UKRAINE SPEC,(J)

main12382-30051i1KDFTV..KUN26..5FC201107-201512

(J)

main12382-30070i1KDFTV,2KDFTV..KUN2#,35..5F201107-201512

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-30010i1KDFTV,2KDFTV..KUN2#,35201107-201201

sub12582-30011

main12582-30011i1KDFTV,2KDFTV..KUN2#,35201201

90105T0191

main90105-T0191

90119T0301

main90119-T0301

90119T0511

main90119-T0511

90178T0050

main90178-T0050

90178T0068

main90178-T0068

9017912127

main90179-12127

9155180814

main91551-80814

9155281025

main91552-81025

15 parts on this diagram · 1 diagram in section
