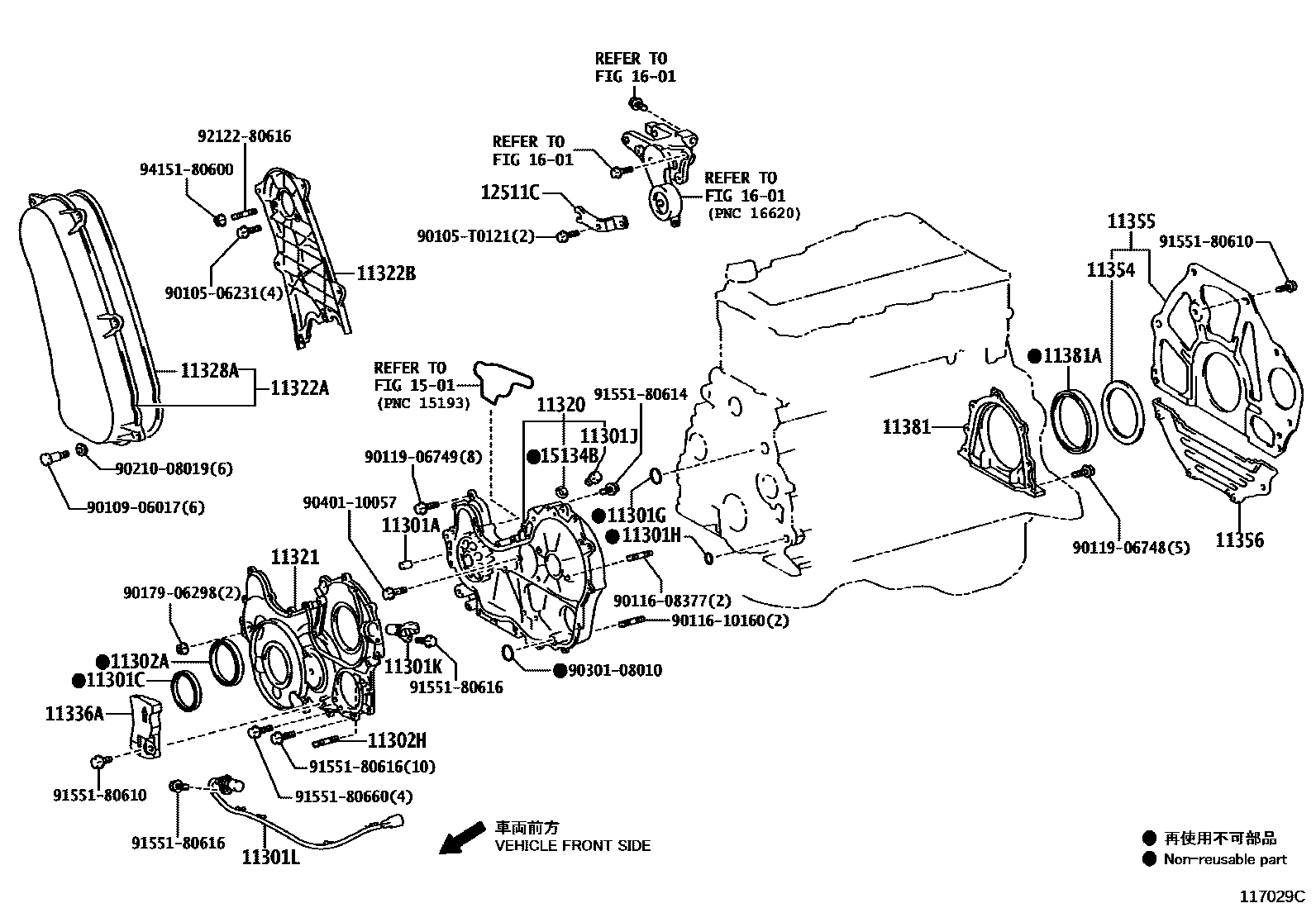

TIMING GEAR COVER & REAR END PLATE

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120i1KDFTV,2KDFTV..KUN2#,35201107

L=18,OD=8

main90250-08120i1KDFTV,2KDFTV..KUN2#,35201107

L=18,OD=8,RUSSIA & UKRAINE SPEC

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-50017i1KDFTV,2KDFTV..KUN2#,35201107-201202

sub90311-50051

main90311-50051i1KDFTV,2KDFTV..KUN2#,35201202-201512

11301GRING, O(FOR TIMING GEAR CASE, UPPER)

main90301-22007i1KDFTV,2KDFTV..KUN2#,35201107-201512

RUSSIA & UKRAINE SPEC

11301HRING, O(FOR TIMING GEAR CASE, LOWER)

main90301-09018i1KDFTV,2KDFTV..KUN2#,35201107-201512

RUSSIA & UKRAINE SPEC

11301JPLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)

main90341-18015i1KDFTV,2KDFTV..KUN2#,35201107-201512

RUSSIA & UKRAINE SPEC

11301KSENSOR, CRANK POSITION

main90919-05025i1KDFTV,2KDFTV..KUN2#,35201107-201512

11301LSENSOR, CRANK POSITION NO.2

main90919-05050i1KDFTV,2KDFTV..KUN2#,35201107-201512

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-65003i1KDFTV,2KDFTV..KUN2#,35201107-201512

11302HBOLT, STUD(FOR TIMING GEAR COVER)

main90116-08377i1KDFTV,2KDFTV..KUN2#,35201107-201512

11320CASE ASSY, TIMING GEAR

main11320-30070i1KDFTV..KUN26201107-201512

main11320-30080i2KDFTV..KUN25,35201107-201512

11321CASE, TIMING GEAR

main11321-30020i1KDFTV,2KDFTV..KUN2#,35201107-201512

11322ACOVER, TIMING BELT, NO.1

main11332-30020i1KDFTV,2KDFTV..KUN2#,35201107-201512

11322BCOVER, TIMING BELT, NO.2

main11322-30010i1KDFTV,2KDFTV..KUN2#,35201107-201512

11328AGASKET, TIMING BELT COVER, NO.1

main11328-30020i1KDFTV,2KDFTV..KUN2#,35201107-201512

11336AINSULATOR, TIMING GEAR COVER

main11336-30010i1KDFTV,2KDFTV..KUN2#,35201107-201512

11354SEAL, FLYWHEEL HOUSING DUST

main11354-30010i1KDFTV,2KDFTV..KUN2#,35201107-201512

11355PLATE, REAR END

main11355-67011i1KDFTV,2KDFTV..KUN2#,35201107-201512

11356PLATE, REAR END, NO.2

main11356-0L010i1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB,XTR201107-201405

sub11356-0L011

main11356-0L011i1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB,XTR201406-201504

sub11356-0L012

main11356-0L020i1KDFTV,2KDFTV..KUN2#,35..DCB,SCB201108-201410

sub11356-0L021

main11356-0L021i1KDFTV,2KDFTV..KUN2#,35..DCB,SCB201411-201512

sub11356-0L022

11381RETAINER, ENGINE REAR OIL SEAL

main11381-67020i1KDFTV,2KDFTV..KUN2#,35201107-201512

11381ASEAL, ENGINE REAR OIL

main90311-95008i1KDFTV,2KDFTV..KUN2#,35201107-201204

main90311-95015i1KDFTV,2KDFTV..KUN2#,35201205-201512

12511CBRACKET, ALTERNATOR

main12511-0L010i1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB,XTR201107-201504

sub12511-30030

main12511-0L020i1KDFTV,2KDFTV..KUN2#,35..DCB,SCB201108-201512

1501

15134BGASKET, OIL PUMP RELIEF VALVE

main15134-67010i1KDFTV,2KDFTV..KUN2#,35201107-201512

RUSSIA & UKRAINE SPEC

1601

9010506231

main90105-06231

90105T0121

main90105-T0121

9010906017

main90109-06017

9011608377

main90116-08377

9011610160

main90116-10160

9011906748

main90119-06748

9011906749

main90119-06749

9017906298

main90179-06298

9021008019

main90210-08019

9030108010

main90301-08010

9040110057

main90401-10057

9155180610

main91551-80610

9155180614

main91551-80614

9155180616

main91551-80616

9155180660

main91551-80660

9212280616

main92122-80616

9415180600

main94151-80600

41 parts on this diagram · 1 diagram in section
