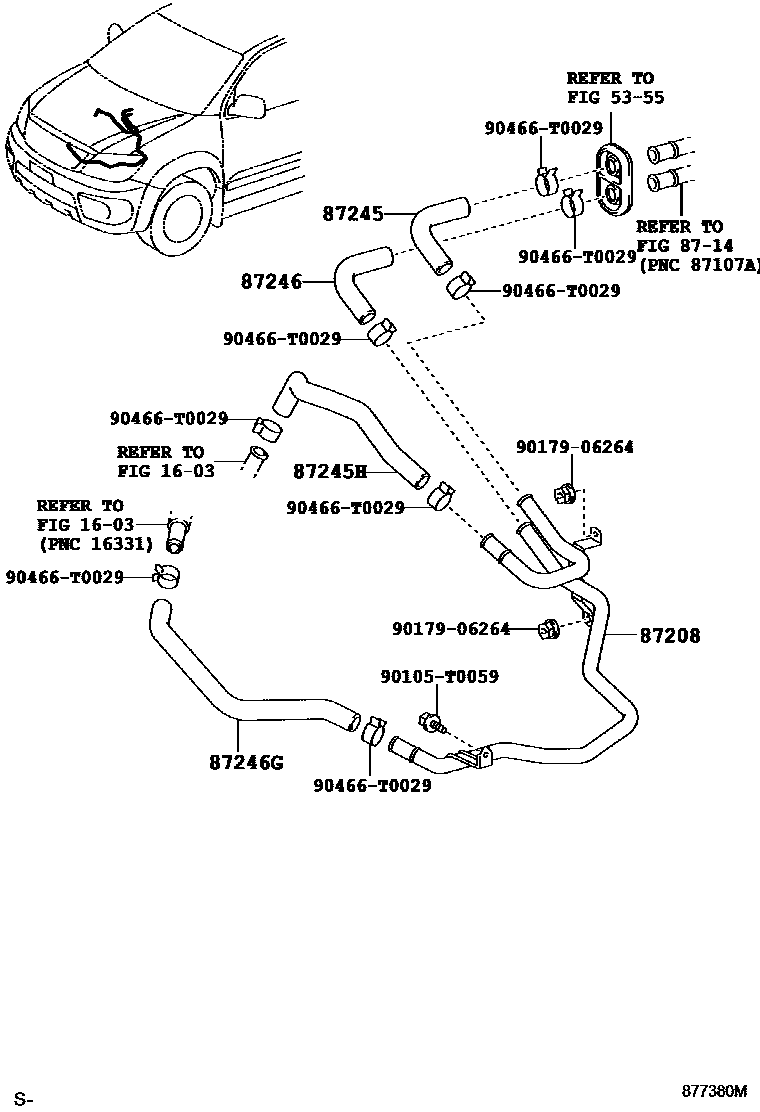

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1W(VISCOUS HEATER)

1603

5355

8714

87208PIPE SUB-ASSY, HEATER WATER

main87208-0K020iKUN25..XTR200507-200610

main87208-0K140iKUN26..4FC,5F;KUN15..DLX..HDCR;KUN25..THDCB,THSCB,XTR200608-201108

87245HOSE, HEATER WATER, INLET

main87245-0K300iKUN15,2#..4FC,5F200507-201108

87245HHOSE, HEATER WATER, INLET H

main87245-0K010iKUN25..XTR200507-200610

COLD AREA SPEC

main87245-0K010iKUN25..XTR200507-200610

COLD AREA SPEC&SINGLE AIR CONDITIONER

main87245-0K760iKUN26..4FC,5F;KUN15..DLX..HDCR;KUN25..THDCB,THSCB,XTR200608-200810

COLD AREA SPEC&SINGLE AIR CONDITIONER

main87245-0K760iKUN15,2#..5F,5FC200808-201108

COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER

87246HOSE, HEATER WATER, OUTLET

main87245-0K300iKUN15,2#..4FC,5F200507-201108

87246GHOSE, HEATER WATER, OUTLET G

main87245-0K310iKUN25..XTR200507-200610

COLD AREA SPEC&SINGLE AIR CONDITIONER

main87245-0K750iKUN26..4FC,5F;KUN15..DLX..HDCR;KUN25..THDCB,THSCB,XTR200608-200810

COLD AREA SPEC&SINGLE AIR CONDITIONER

main87245-0K750iKUN15,2#..5F,5FC200808-201108

COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER

90105T0059

main90105-T0059

9017906264

main90179-06264

90466T0029

main90466-T0029

11 parts on this diagram · 2 diagrams in section
