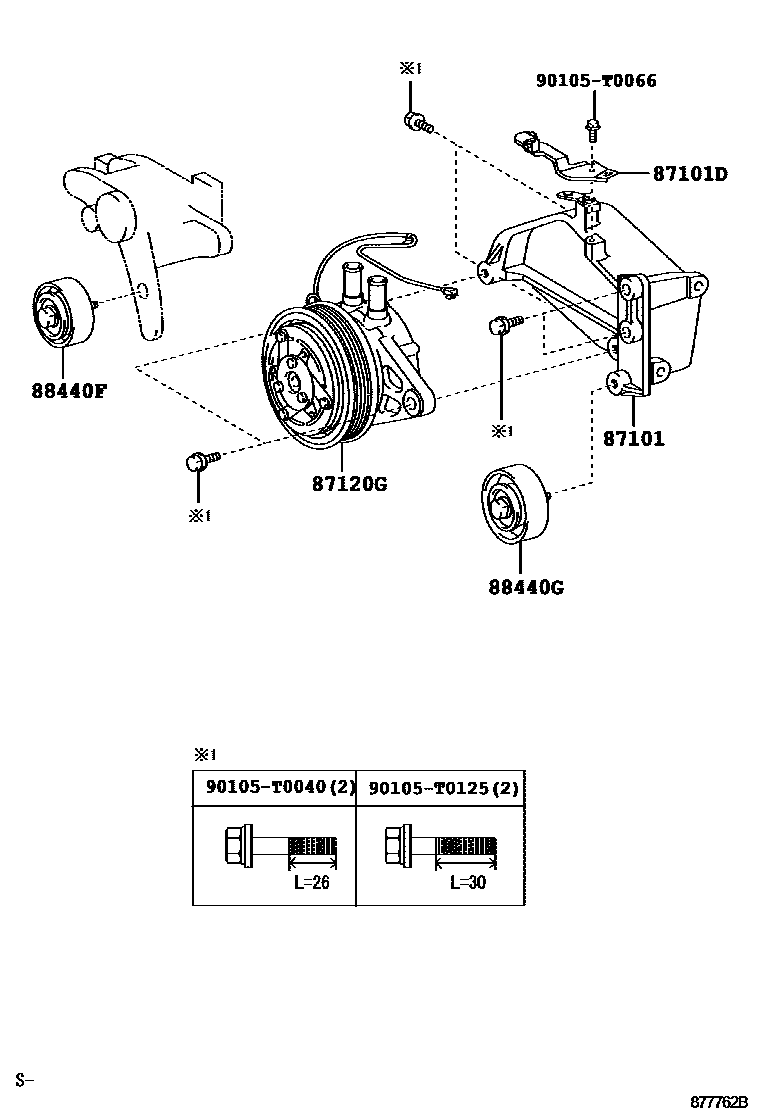

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87101BRACKET SUB-ASSY, VISCOUS HEATER NO.1

main87101-0K010

main87101-0K030

main87101-0K050

87101DBRACKET SUB-ASSY, VISCOUS HEATER NO.2

87120GHEATER ASSY, VISCOUS W/MAGNET CLUTCH

88440FPULLEY ASSY, IDLE NO.1

88440GPULLEY ASSY, IDLE NO.2

90105T0040

main90105-T0040

90105T0066

main90105-T0066

90105T0125

main90105-T0125

8 parts on this diagram · 1 diagram in section
