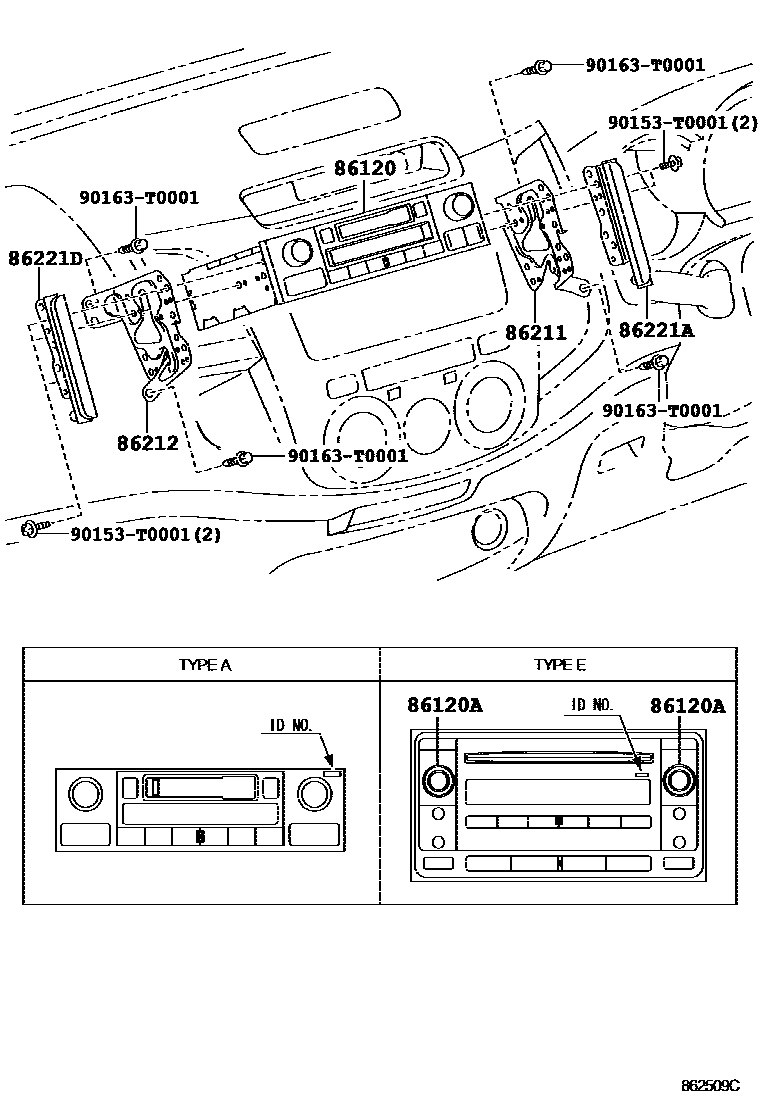

RADIO RECEIVER & AMPLIFIER & CONDENSER

86120RECEIVER ASSY, RADIO

main86120-0K020iKUN25..LHD..THDCB200507-200810

FUJITSU TEN,ID=17421,AUDIO-AM/FM CASSETTE 2SPEAKER,TYPE A:REFER ILLUST.

main86120-0K330iKUN15..LHD..(DCB,SCB)..CBU;KUN2#..LHD..(DCB,THDCB)..(5F,5FC)200808-201108

FUJITSU TEN,ID=12882,AUDIO-AM/FM CD 2SPEAKER,TYPE E:REFER ILLUST.

main86120-0K350iKUN25..LHD..THDCB;KUN15,26..LHD..(THDCB,THSCB)..CBU200808-201107

FUJITSU TEN,ID=52841,AUDIO-AM/FM CD 2SPEAKER,TYPE E:REFER ILLUST.

main86120-0K360iKUN2#..RHD..DCB..SR200810-201108

FUJITSU TEN,ID=13817,AUDIO-AM/FM CD RDS 4SPEAKER,TYPE E:REFER ILLUST.

86120AKNOB, RADIO RECEIVER SWITCH

86211BRACKET, RADIO, NO.1

main86211-0K010iKUN15..THDCB,THSCB,XTR;KUN2#..RHD..(THDCB,THSCB)200507-201108

86212BRACKET, RADIO, NO.2

main86212-0K010iKUN15,2#..4FC,5F200507-201108

86221APANEL, RADIO RECEIVER

86221DPANEL, RADIO RECEIVER

90153T0001

main90153-T0001

90163T0001

main90163-T0001

8 parts on this diagram · 1 diagram in section
