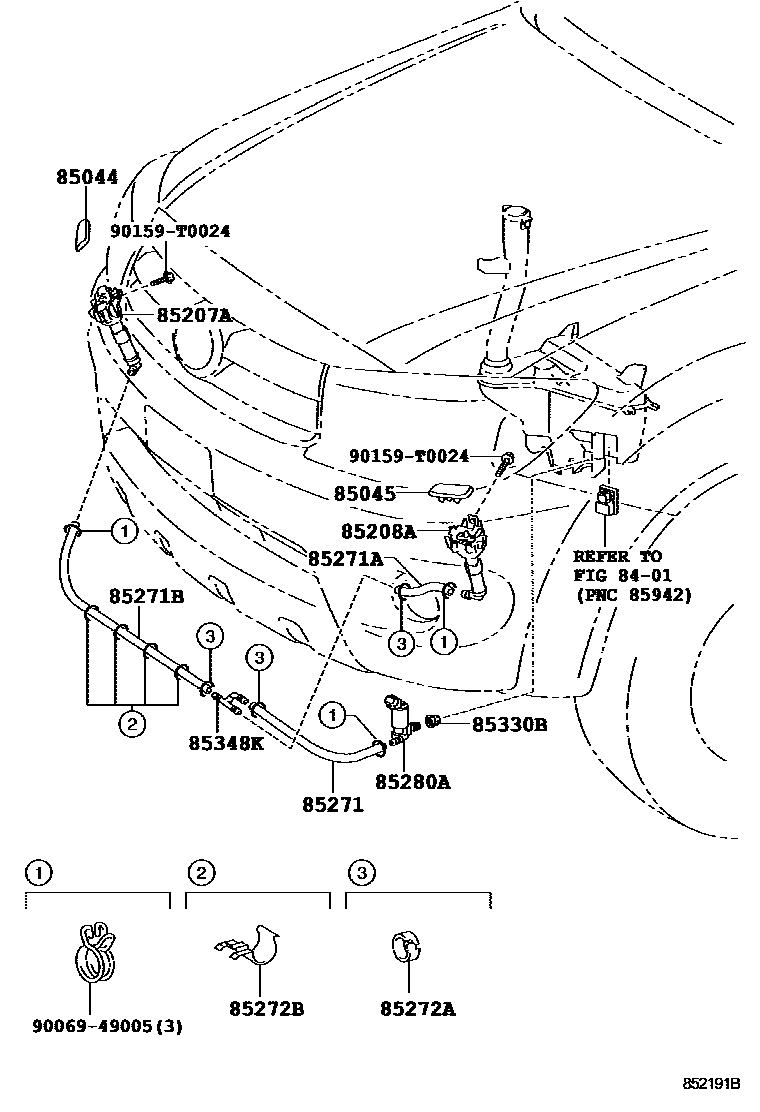

HEADLAMP CLEANER
8401
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
85271AHOSE, HEADLAMP CLEANER, NO.2
L=60
85271BHOSE, HEADLAMP CLEANER, NO.3
L=1090
85272ACLAMP, HEADLAMP CLEANER, NO.1
85272BCLAMP, HEADLAMP CLEANER, NO.2
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
9006949005
main90069-49005
90159T0024
main90159-T0024
15 parts on this diagram · 1 diagram in section
