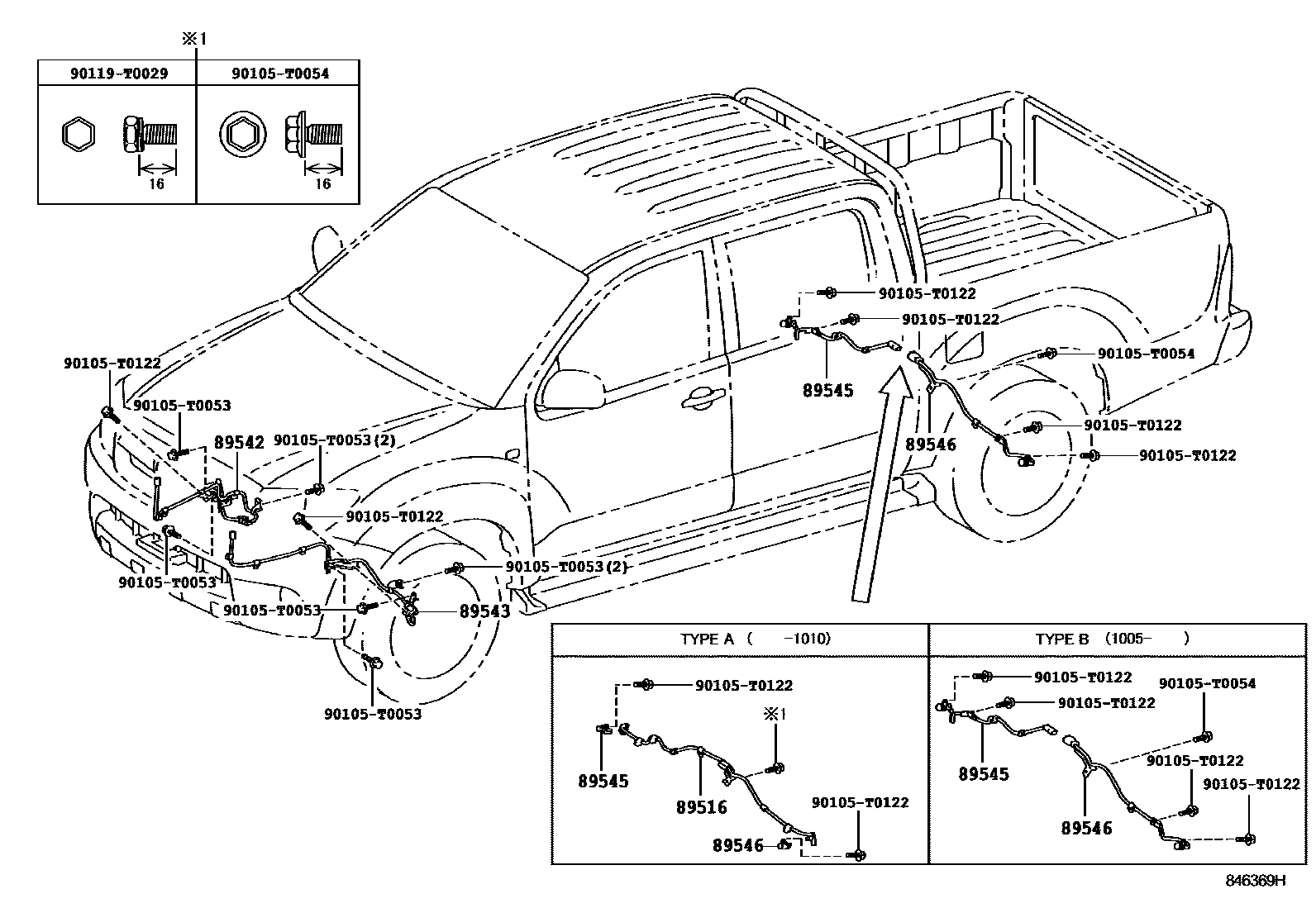

89516WIRE, SKID CONTROL SENSOR

main89516-0K010iKUN15..SR200507-200810

main89516-0K010iKUN15..THDCB,THSCB,XTR200708-200810

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main89516-0K010iKUN15200808-201010

TYPE A:REFER ILLUST.

main89516-0K020iKUN25..LHD..THDCB..SR;KUN25..(THDCB,THSCB,XTR)..DLX200507-200810

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main89516-0K020iKUN2#..5F,5FC200808-201012

TYPE A:REFER ILLUST.

main89516-0K020iKUN25..RHD..THDCB..SR200702-200808

89542SENSOR, SPEED, FRONT RH

main89542-0K010iKUN15..DCB200507-201108

main89542-0K010iKUN15..THDCB,THSCB,XTR200708-200810

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main89542-0K020iKUN25..LHD..THDCB..SR;KUN25..(THDCB,THSCB,XTR)..DLX200507-200810

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main89542-0K020iKUN25..RHD..THDCB..SR200702-201108

89543SENSOR, SPEED, FRONT LH

main89543-0K010iKUN15..SR200507-201108

main89543-0K010iKUN15..THDCB,THSCB,XTR200708-200810

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main89543-0K020iKUN25..LHD..THDCB..SR;KUN25..LHD..(THDCB,THSCB,XTR)..DLX200507-200810

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main89543-0K020iKUN2#..LHD..(THDCB,THSCB);KUN2#..(DCB,SCB,XTR)..(5F,5FC)200702-201108

89545SENSOR, SPEED, REAR RH

main89545-0K010iKUN25..LHD..THDCB..SR;KUN15,25..LHD..(THDCB,THSCB,XTR)..DLX200507-200810

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main89545-0K010iKUN25..RHD..THDCB..SR200702-200808

main89545-0K040iKUN2#..5F,5FC200808-201012

TYPE A:REFER ILLUST.

main89545-0K060iKUN15201005-201108

TYPE B:REFER ILLUST.

main89545-0K070iKUN2#201005-201108

TYPE B:REFER ILLUST.

89546SENSOR, SPEED, REAR LH

main89546-0K010iKUN25..LHD..THDCB..SR;KUN15,25..(THDCB,THSCB,XTR)..DLX200507-200810

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main89546-0K010iKUN25..RHD..THDCB..SR200702-200808

main89546-0K040iKUN15200808-201012

TYPE A:REFER ILLUST.

main89546-0K060iKUN15..THDCB,THSCB,XTR201008-201108

TYPE B:REFER ILLUST.

main89546-0K070iKUN2#..RHD..(THDCB,THSCB)201005-201108

TYPE B:REFER ILLUST.

90105T0053

main90105-T0053

90105T0054

main90105-T0054

90105T0122

main90105-T0122

90119T0029

main90119-T0029

9 parts on this diagram · 2 diagrams in section
